Heylo PowerFilter 3500 – air cleaner

Air cleaner
Master Top Badge
Heylo air cleaner PF 3500
Heylo air cleaner PF 3500

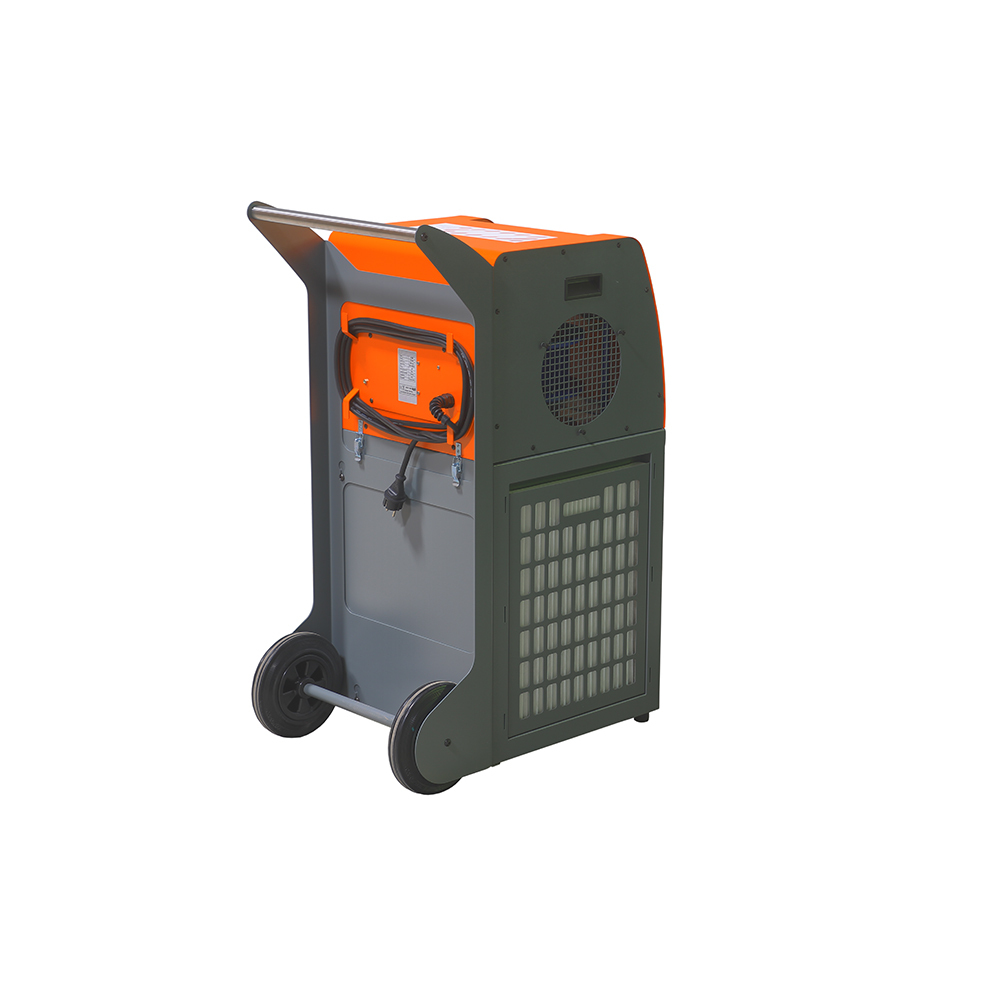

Heylo air cleaner PF 3500 back
Heylo air cleaner PF 3500 back

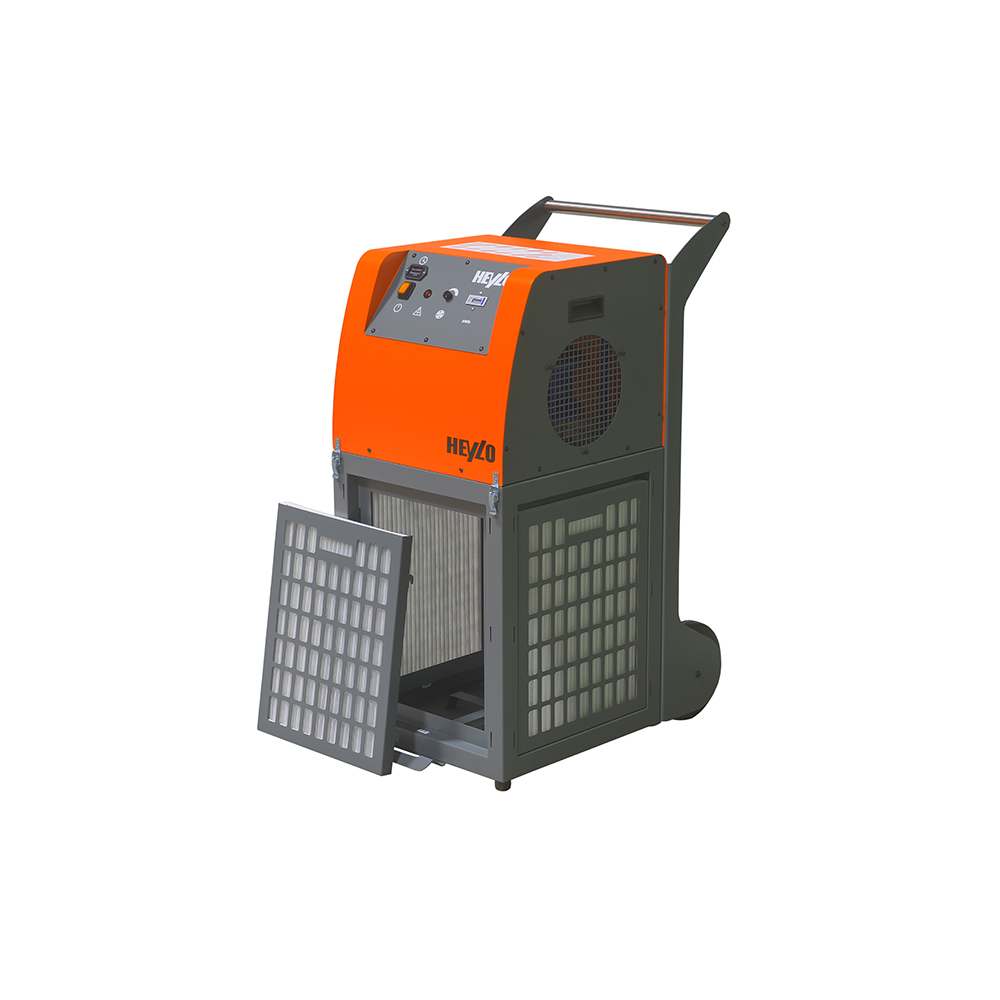

Heylo air cleaner PF 3500 open
Heylo air cleaner PF 3500 open

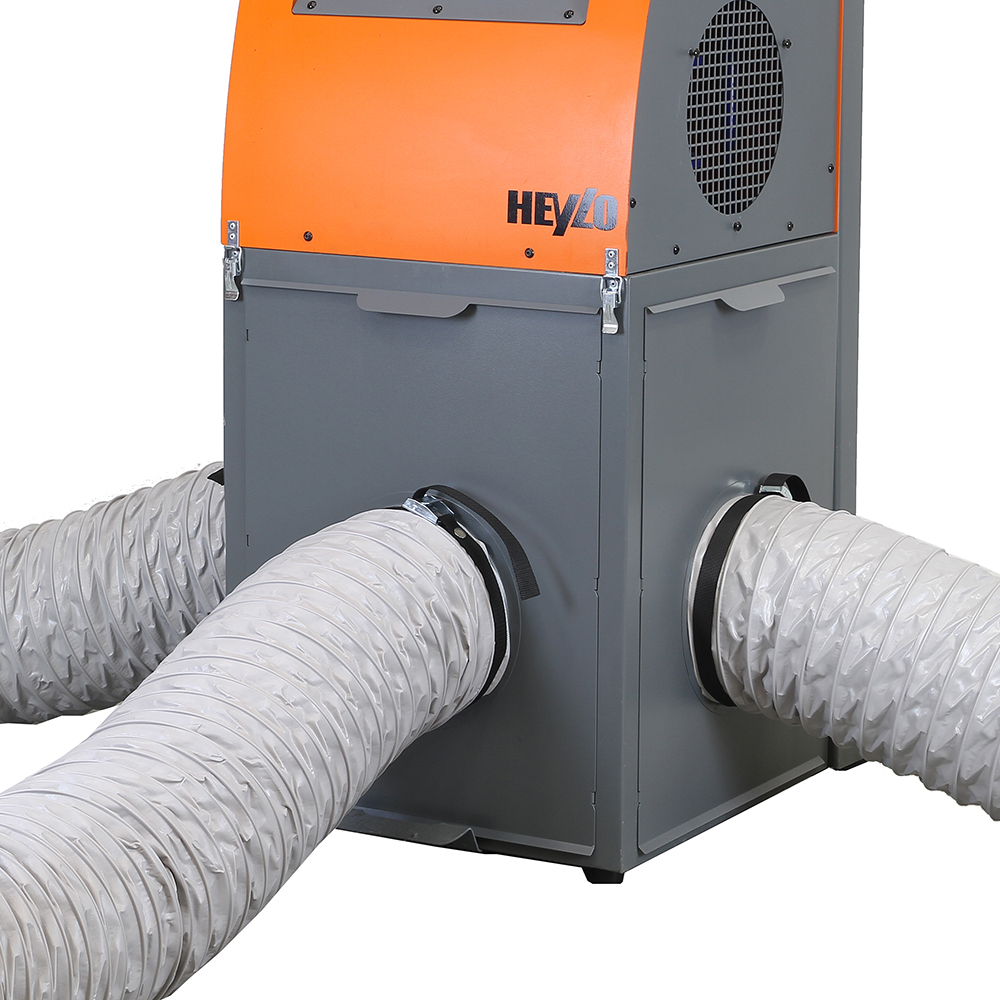

Heylo air cleaner PF 3500 hoses
Heylo air cleaner PF 3500 hoses

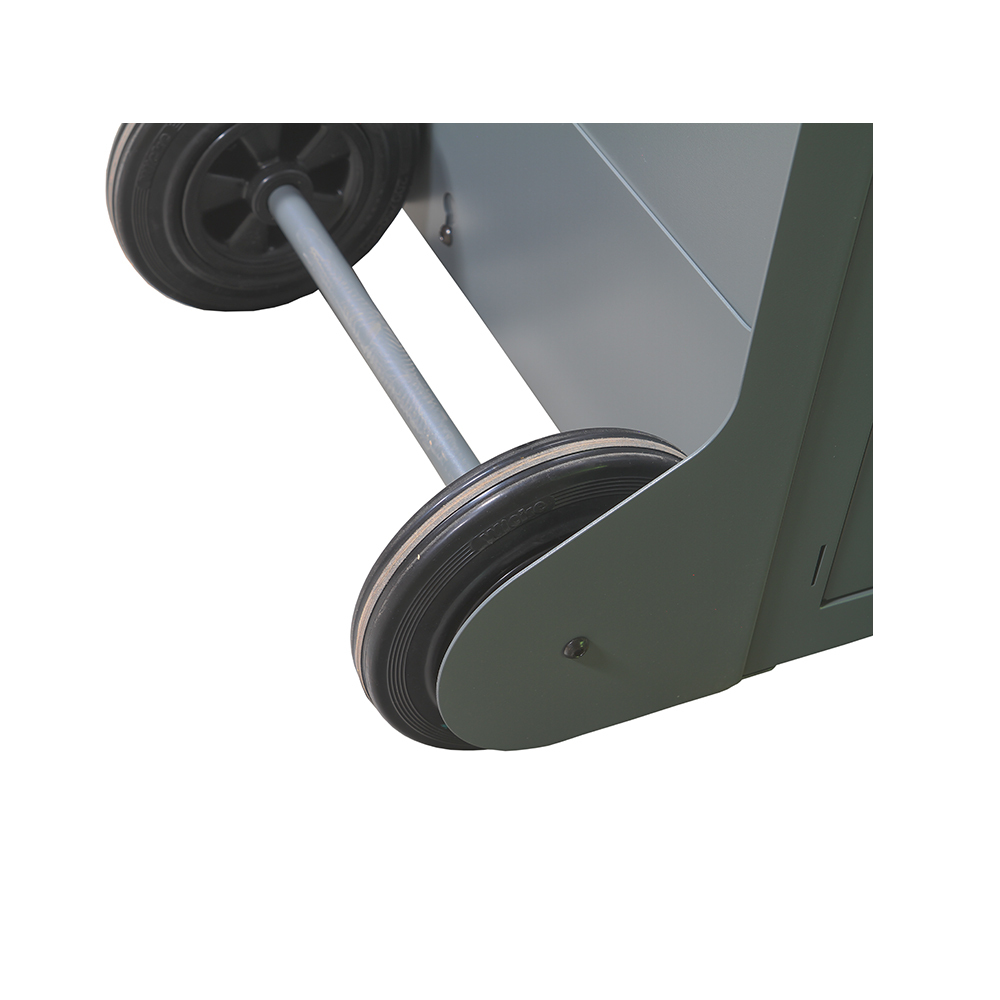

Heylo air cleaner PF 3500 wheels
Heylo air cleaner PF 3500 wheels

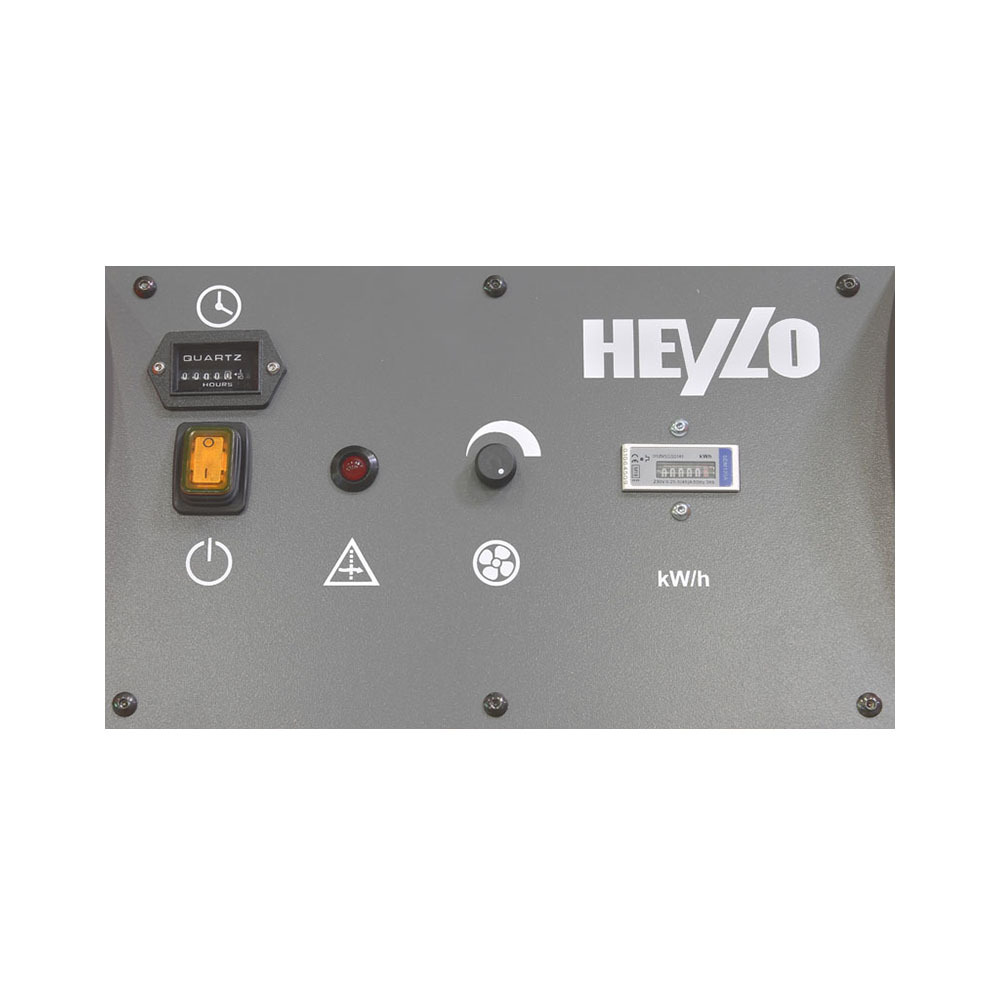

Heylo air cleaner PF 3500 panel
Heylo air cleaner PF 3500 panel

During the restoration of buildings or during industrial work, noxious particles (dust, mould spores, et cetera) are released frequently which jeopardise people when they spread at the place of work or in the remaining building.

The high-performance cleaner PF 3500 makes sure that harmful substances are removed at the source immediately so that they cannot get into other parts of the building.

The high-perfomance cleaner PowerFilter PF 3500 is the ideal unit for air cleaning for industry as well. By connecting several hoses, the dust filter and dust extraction even at different workplaces can be carried out at the same time.

Interested?

Key features

  • Max. ventilator air flow rate (without filter) of 3100m³/h
  • Flexible use at several workplaces at the same time
  • For rough conditions - also in industry
  • Can be closed after use of contaminants
  • Workplace seal-off with room seal-off
  • Room air cleaning with room seal-off
  • Room air cleaning in circulatory air operation
  • Quiet and very energy-efficient operation
  • Very robust

Various filters are accessible quickly and can be exchanged easily:

  • Pre-filter - coarse dust filter of class G4 in conformity with European standard EN779
  • Main filter - fine dust filter of Class F9 in conformity with European standard EN779 and dust class M in conformity with EN60335
  • Main filter - suspended solids filter HEPA H14 in conformity with European standard EN1822 and dust class M in conformity with EN60335
  • Main filter - activated carbon filter

Product specifications

Ventilator-air flow without filters

3,100
m³/h


Air flow with free M-filter F9

2,795
m³/h


Air flow with free H-filter H14

2,420
m³/h


Air flow by saturated filters

1,700
m³/h


Power consumption

0.48
kW


Power supply

230/1ph/50-60
V/Hz


Rated current

2.5
A


Protection class

IP44


Sound level

0-70
dB(A)


Hose intake/outlet side

205
Ømm


Product size (l x w x h)

710 x 460 x 1010
mm


Net weight

48
kg


Our tools

Download app

Air exchange rate calculator

Calculate the desired air exchange rate or room size and select the appropriate Heylo air cleaner.

Accessories and consumables

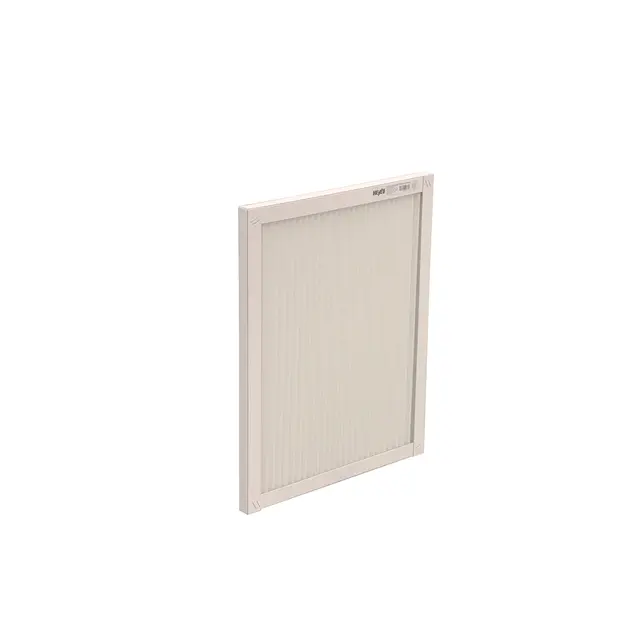

Pre-filter G4 - 1110926
Master Top Badge

Product code: 1110926

Accessory for air cleaner PowerFilter 3500

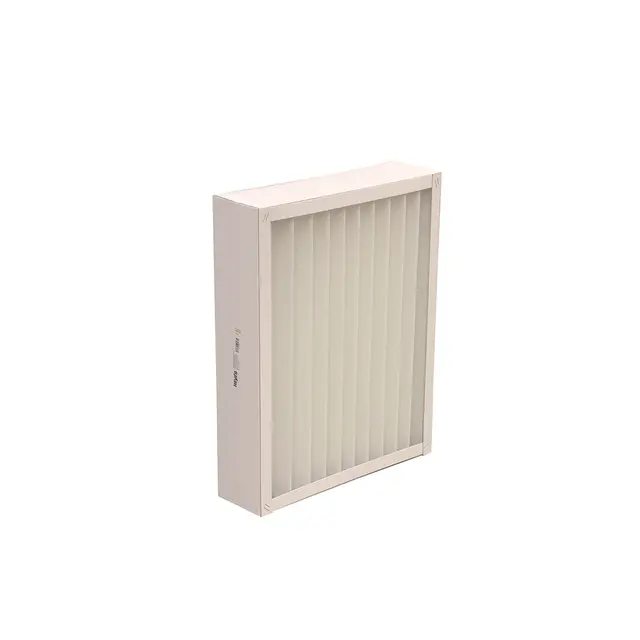

Pre-filter G4 - 1110834
Master Top Badge

Product code: 1110834

Accessory for air cleaner PowerFilter 3500

Main-filter active carbon - 1110924
Master Top Badge

Product code: 1110924

Accessory for air cleaner PowerFilter 3500

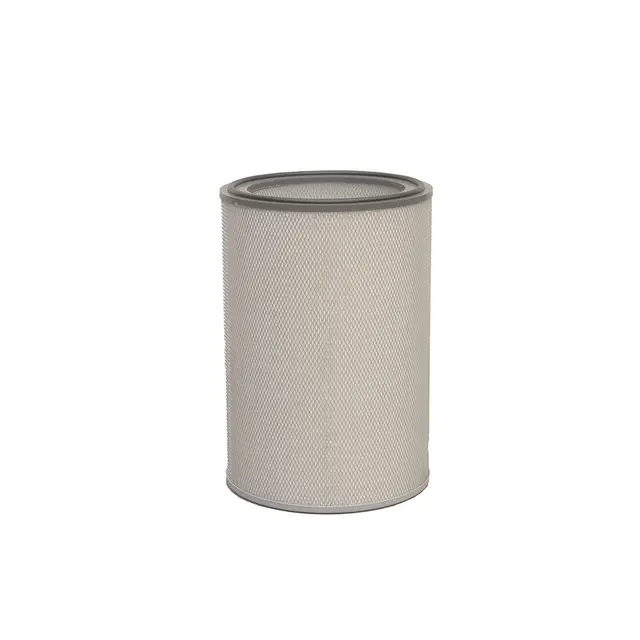

Main-filter F9 - 1110922
Master Top Badge

Product code: 1110922

Accessory for air cleaner PowerFilter 3500

Main-filter H14 - 1110920
Master Top Badge

Product code: 1110920

Accessory for air cleaner PowerFilter 3500

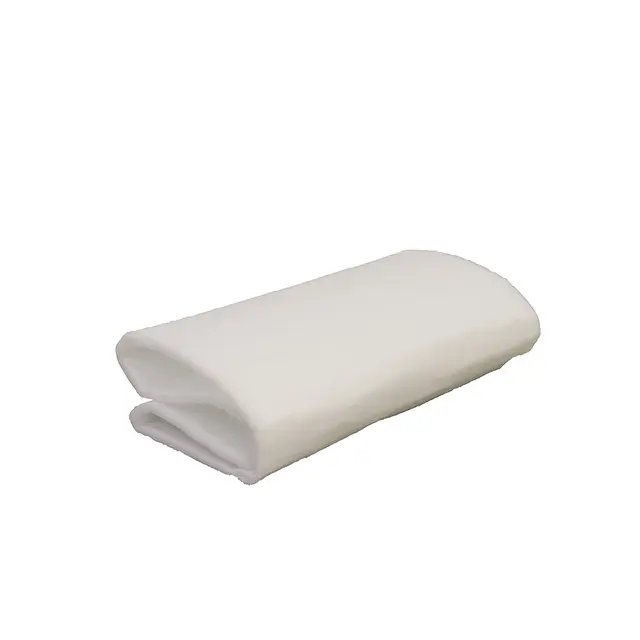

Circular filter - 1110927
Master Top Badge

Product code: 1110927

Accessory for air cleaner PowerFilter 3500

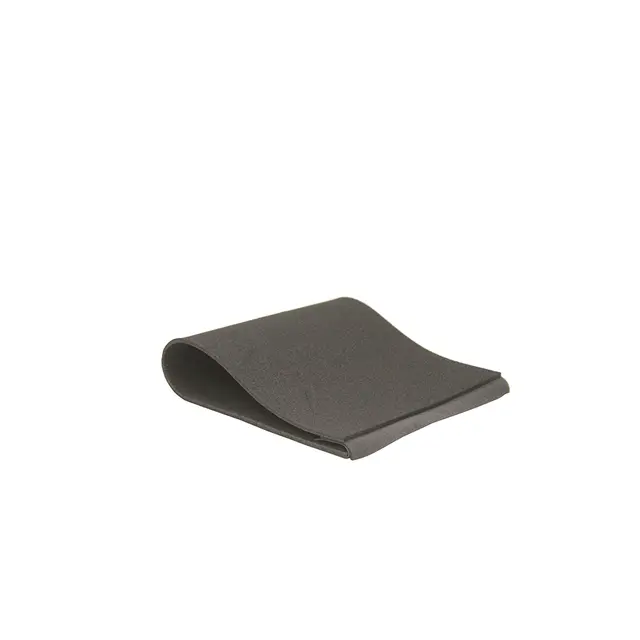

Circular filter - 1110972
Master Top Badge

Product code: 1110972

Accessory for air cleaner PowerFilter 3500

Duct- 1250007
Master Top Badge

Product code: 1250007

Accessory for PowerVent 1500, PF 1000, PF1400, PF 3500

Duct - 1250005
Master Top Badge

Product code: 1250005

Accessory for PowerVent 3000, PowerFilter 3500

Dust protection plate - 1200071
Master Top Badge

Product code: 1200071

Accessory for air cleaner PowerFilter 3500

Dust protection plate - 1200072
Master Top Badge

Product code: 1200072

Accessory for air cleaner PowerFilter 3500

Closing cap - 1200086
Master Top Badge

Product code: 1200086

Accessory for air cleaner PF 1000, PF 1400, PF 3500

Pre-filter cartridge - 1200075
Master Top Badge

Product code: 1200075

Accessory for air cleaner PowerFilter 3500

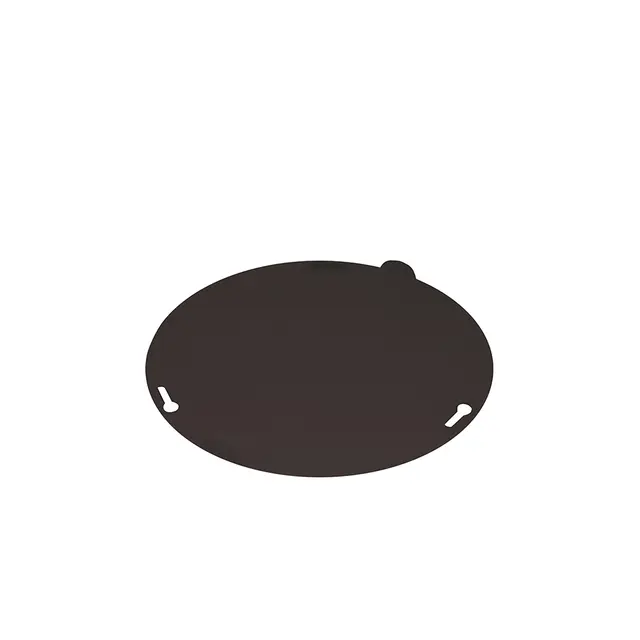

Sealing cap - 1200073
Master Top Badge

Product code: 1200073

Accessory for air cleaner PowerFilter 3500

Stand for duct connector - 1200044
Master Top Badge

Product code: 1200044

Accessory for air cleaner PowerFilter 3500

Useful downloads

Where to Buy Icon

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for Spares Icon

Looking for spares?

The direct route to spare parts for your equipment.

Looking for Servicing Icon

Looking for servicing?

Contact us for help in finding the right service professional near you.

Related products

Heylo air cleaner PF 1000
Master Top Badge

Air cleaner

For air purification and maintenance of negative pressure, especially for renovation in small rooms. Different filters (H/M class).

Trotec TAC 3000 air cleaner
Trotec top badge

Professional air cleaners

From the construction site and asbestos abatement including to hygiene-sensitive areas and cleanrooms – all with one device.

Heylo air cleaner PF 1400
Master Top Badge

Air cleaner

Compact air cleaner for construction sites and industry. For maintaining negative pressure. Flexible filter assembly (F9/HEPA/carbon).

Heylo dust control door DCD-3.0
Master Top Badge

Dust control door

Basic element for door widths of 68-143cm, incl. PVC film and velcro tape. Clean partitioning of doors during renovation work.

Trotec TAC 6500 air cleaner
Trotec top badge

Professional air cleaners

One of a kind and Trotec exclusive: Portable air cleaner with Vario-shift and FlowMatic function for construction sites to cleanrooms.

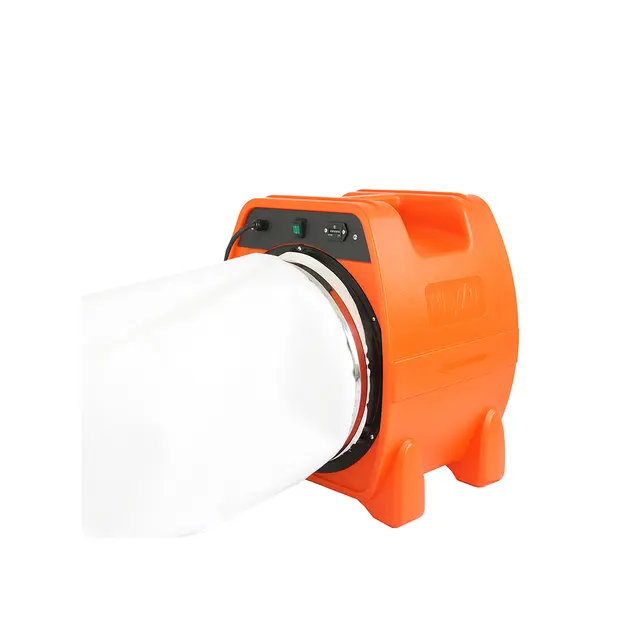

Heylo ventilator PV 6000 combi
