Dantherm FH 20-40 – tent heaters

Tent heaters
Dantherm climate solutions badge

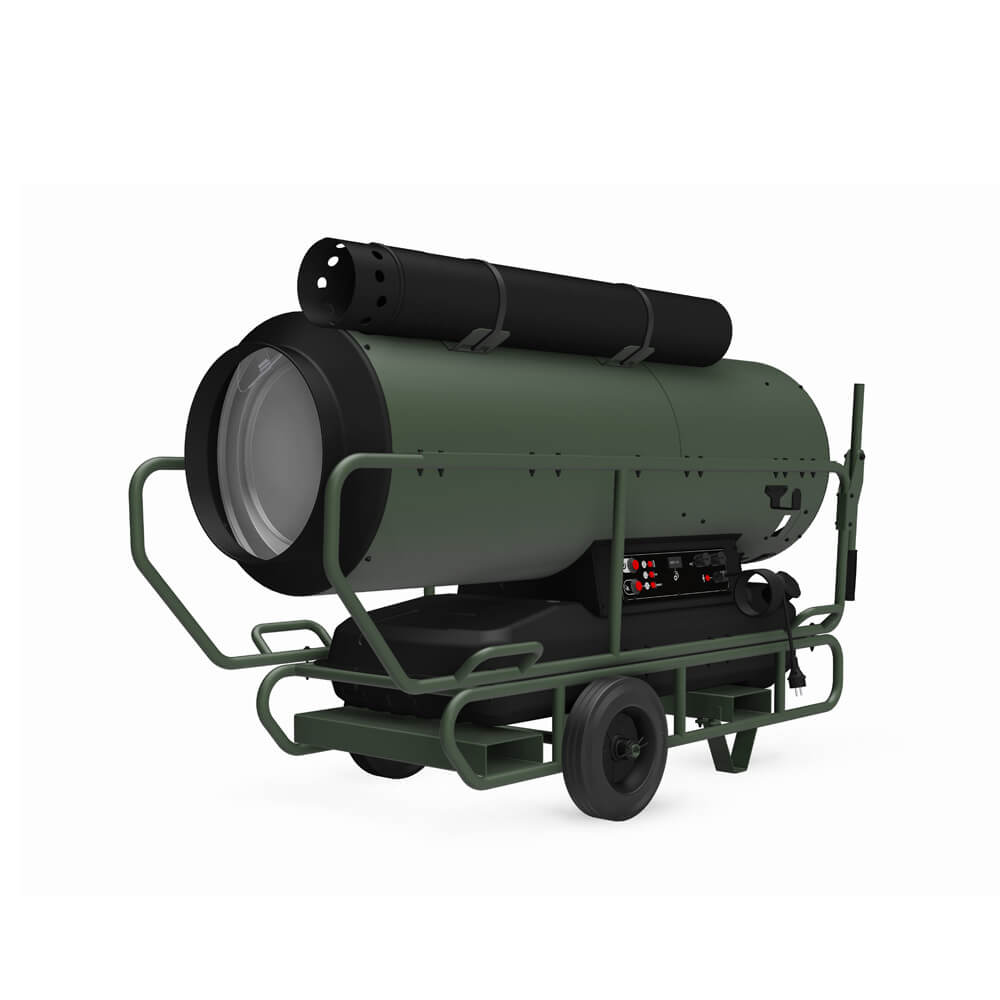

Dantherm FH 40 – tent heater
Dantherm FH 40 – tent heater

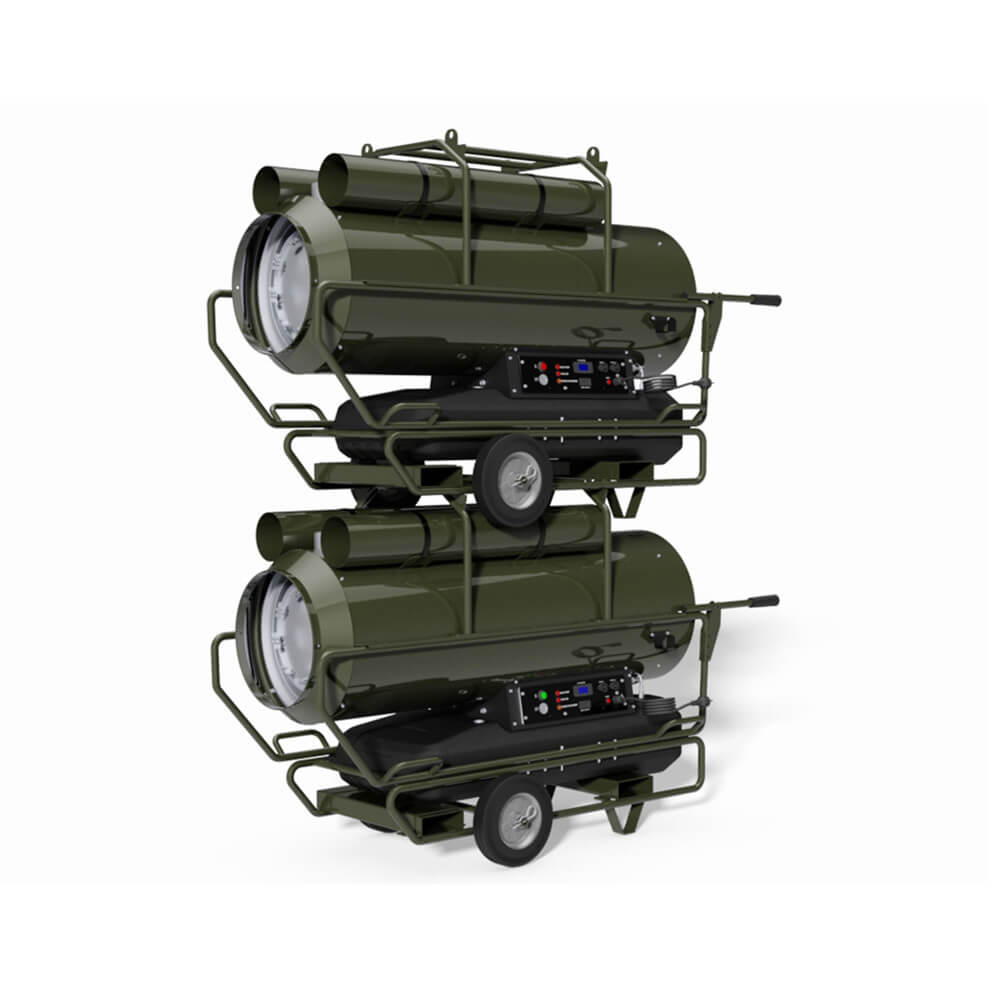

Dantherm FH 40 stacked
Dantherm FH 40 stacked

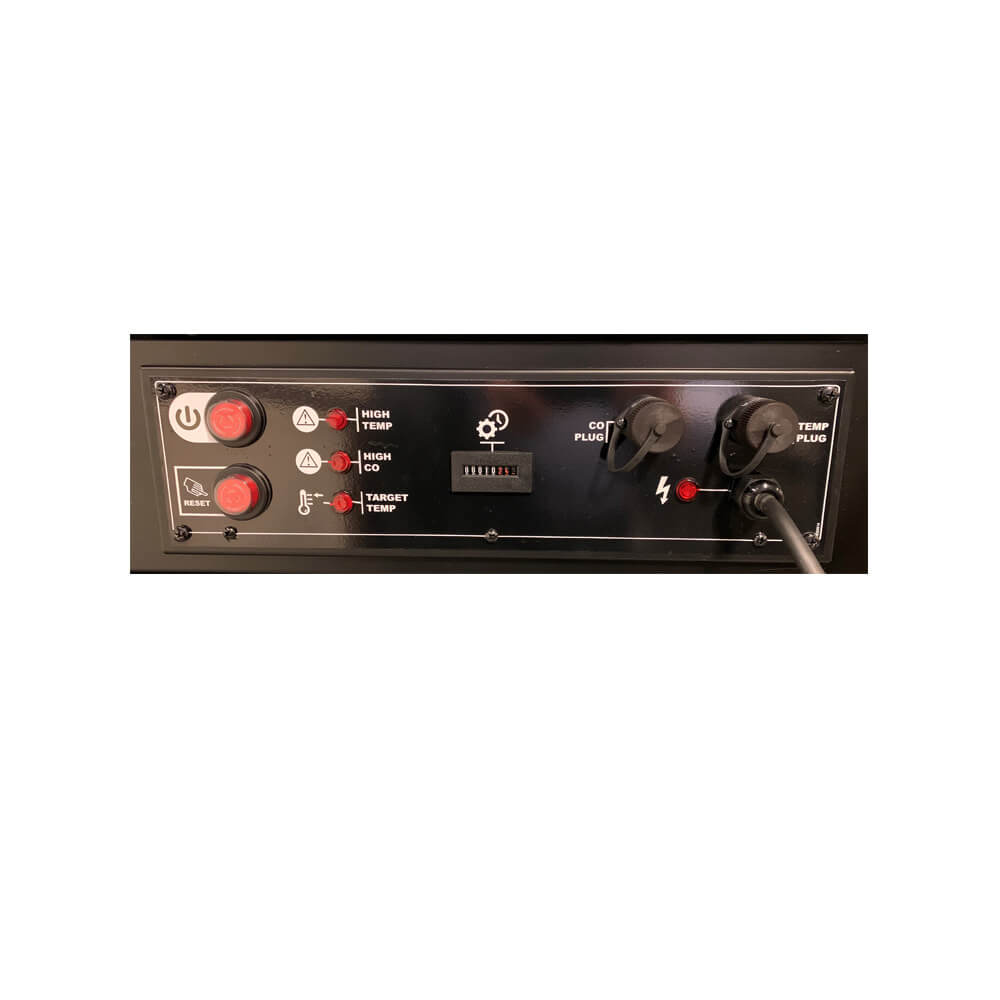

Dantherm FH control panel
Dantherm FH control panel

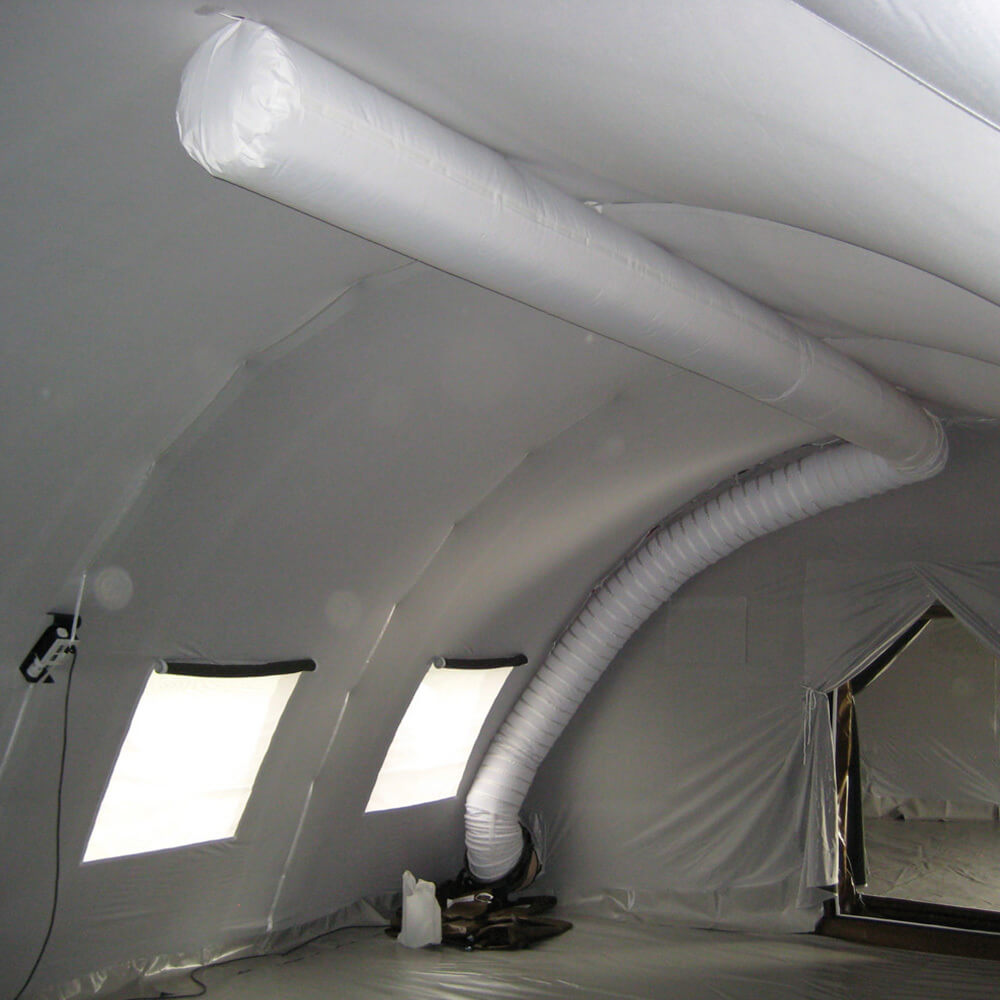

Dantherm FH 20-40 air distribution hose
Dantherm FH 20-40 air distribution hose

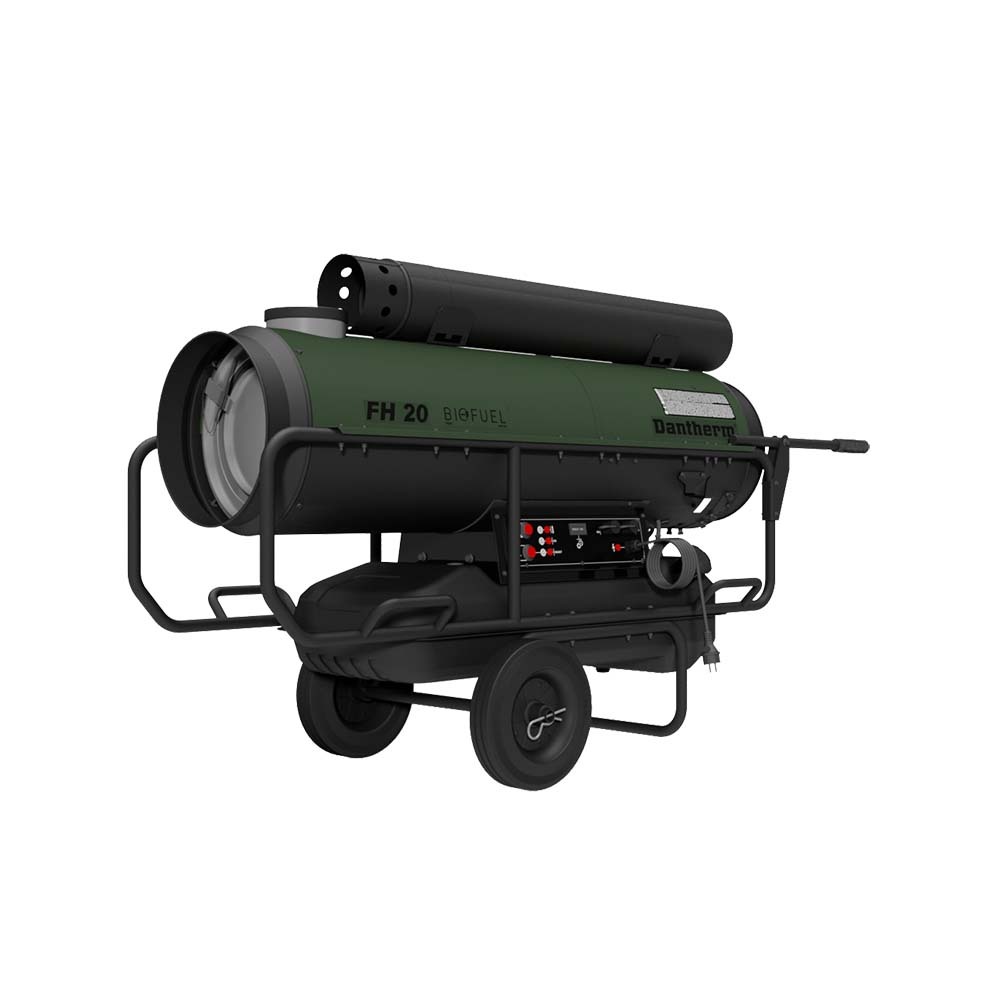

Dantherm FH 20 bronze
Dantherm FH 20 bronze

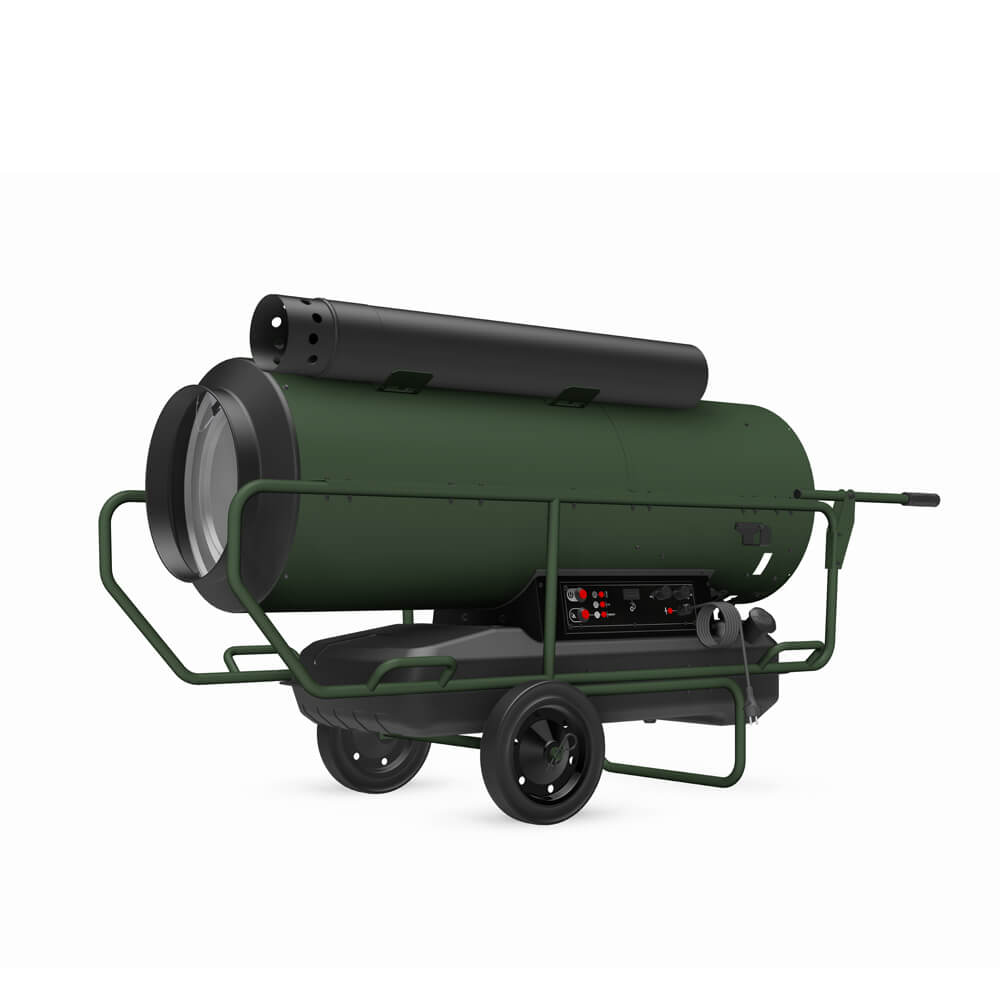

Dantherm FH 40 bronze
Dantherm FH 40 bronze

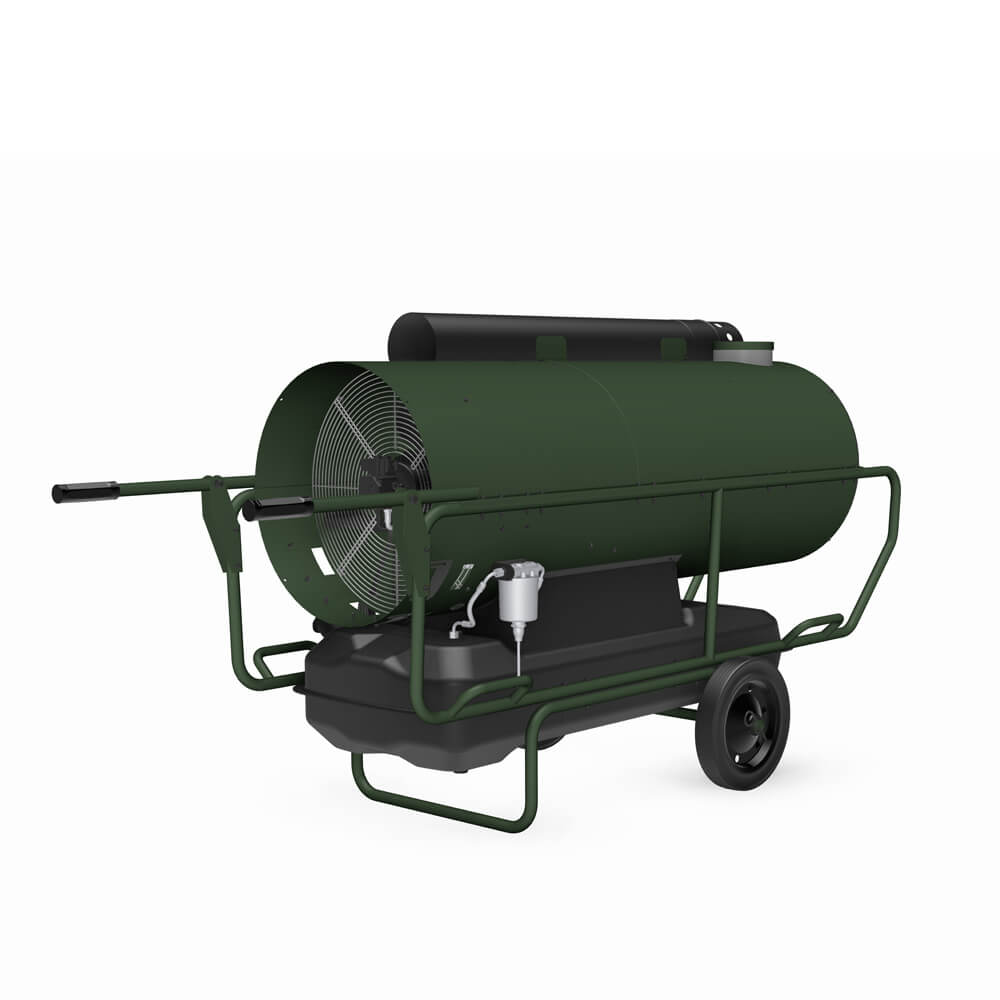

Dantherm FH 40 bronze back
Dantherm FH 40 bronze back

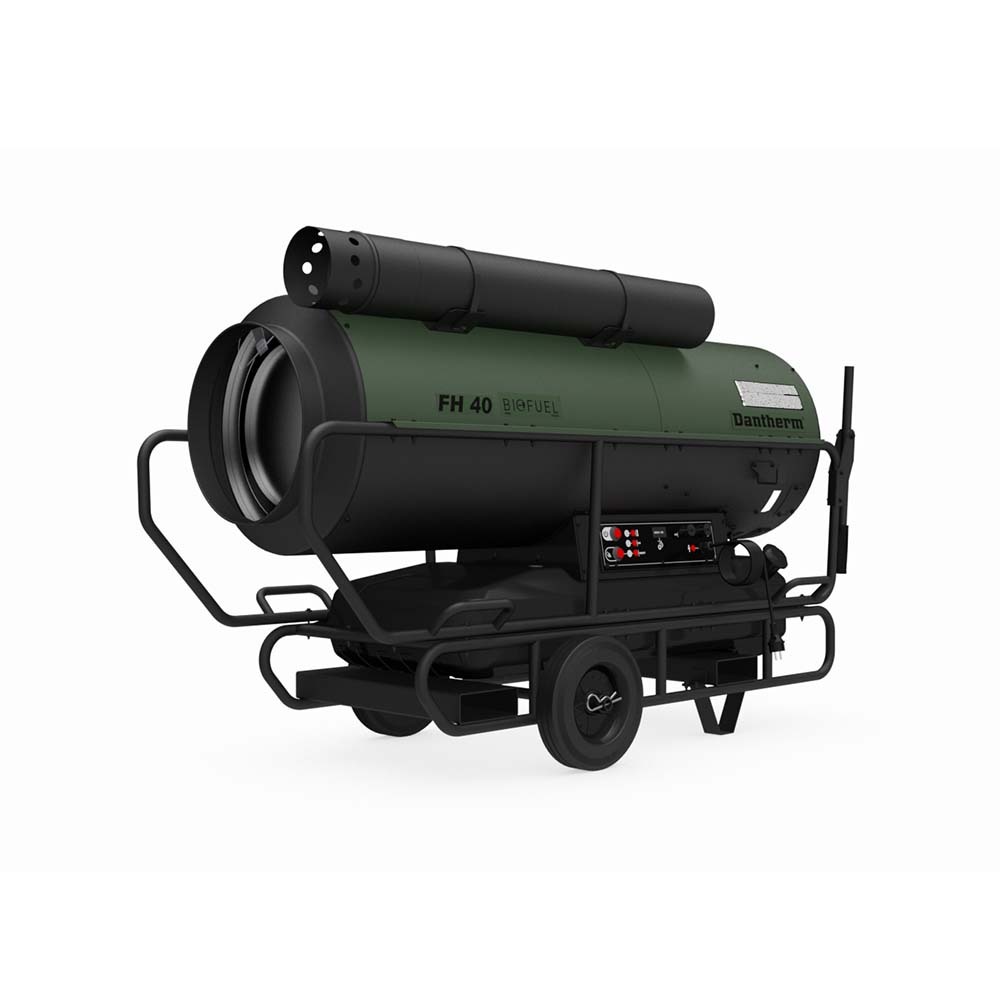

Dantherm FH 40 BI silver
Dantherm FH 40 BI silver

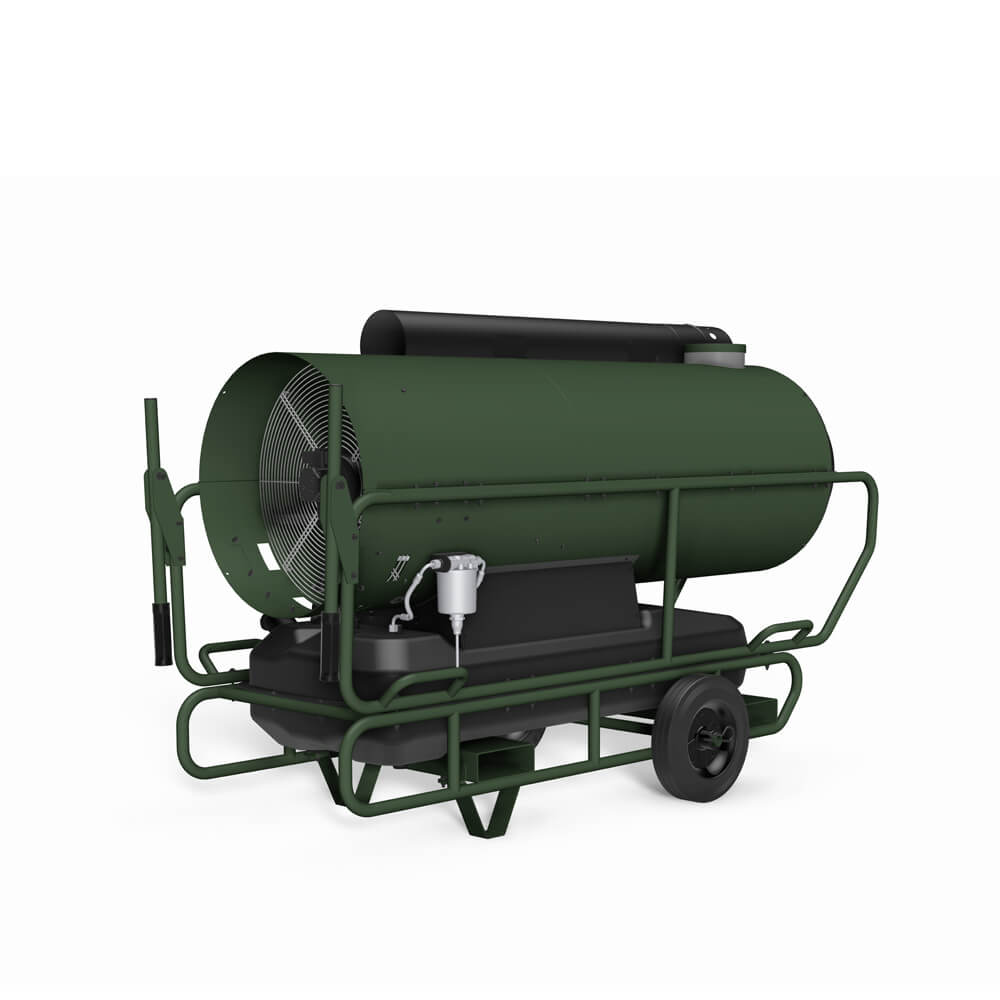

Dantherm FH 40 silver back
Dantherm FH 40 silver back

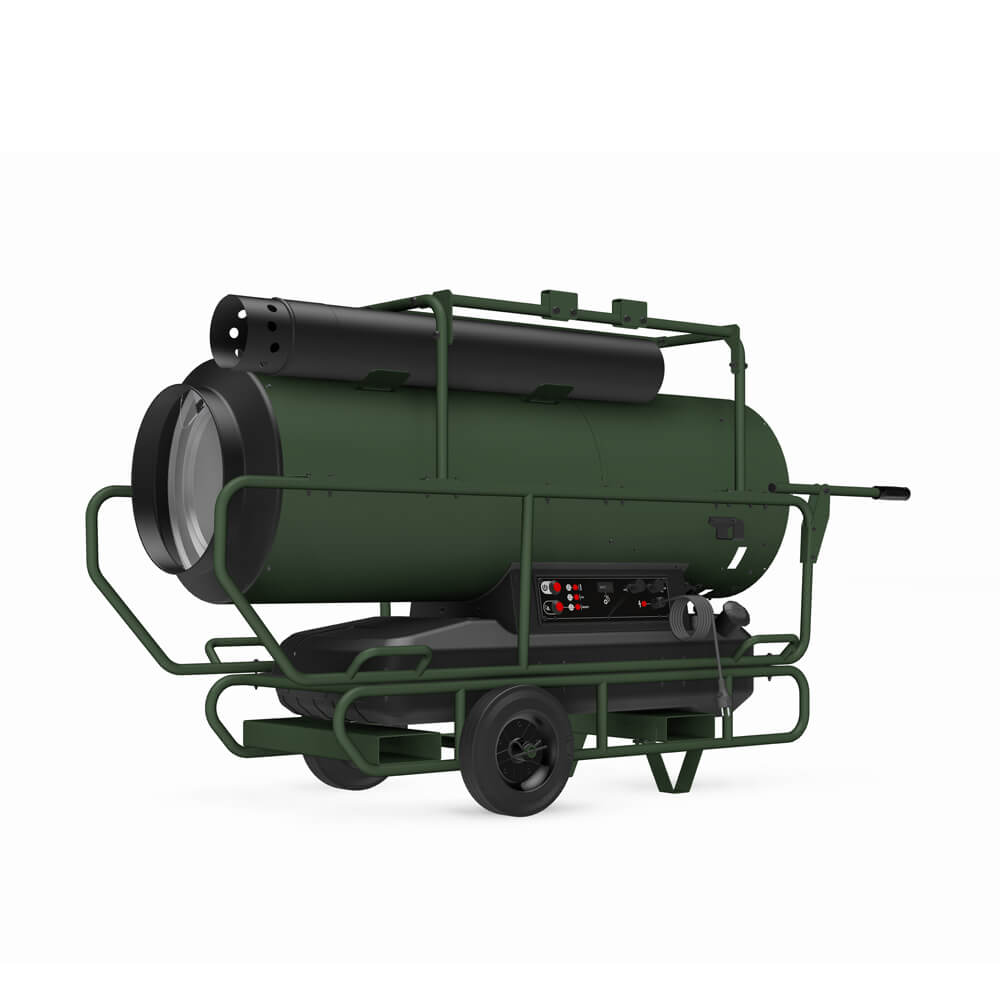

Dantherm FH 40 gold
Dantherm FH 40 gold

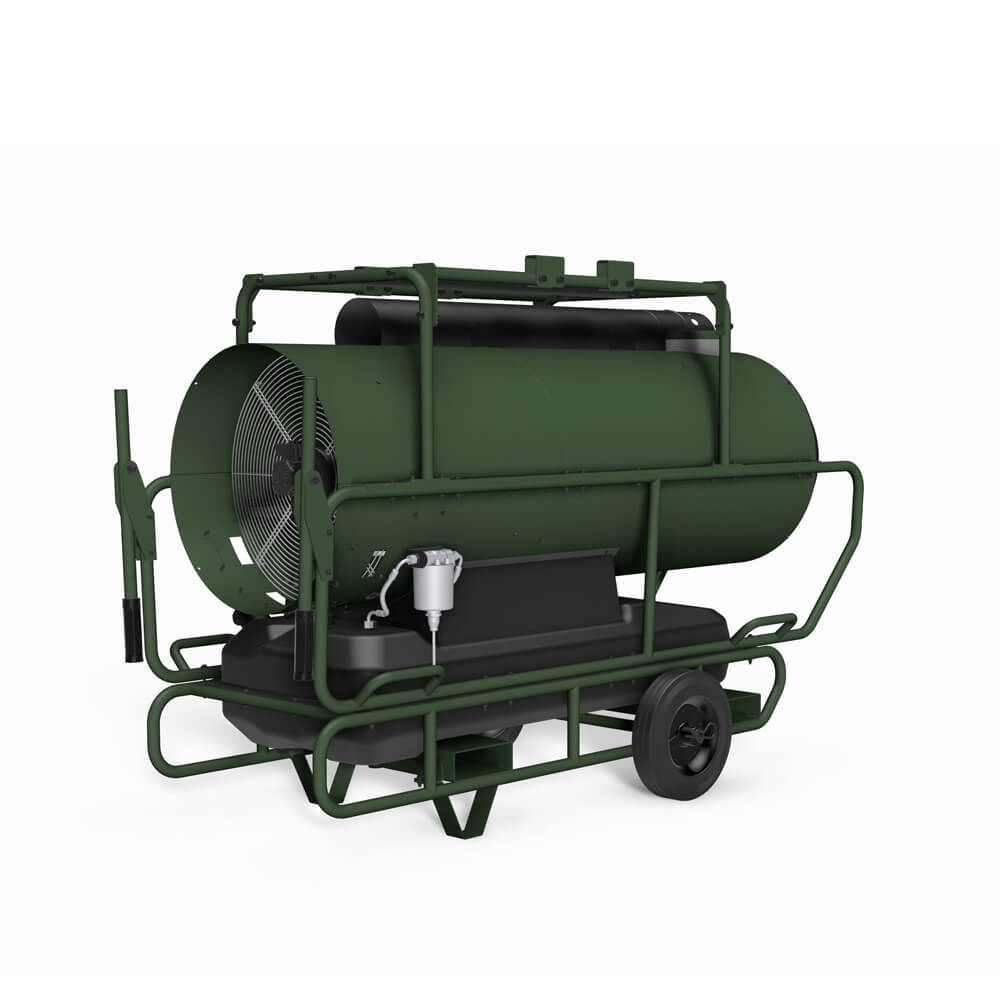

Dantherm FH 40 gold back
Dantherm FH 40 gold back

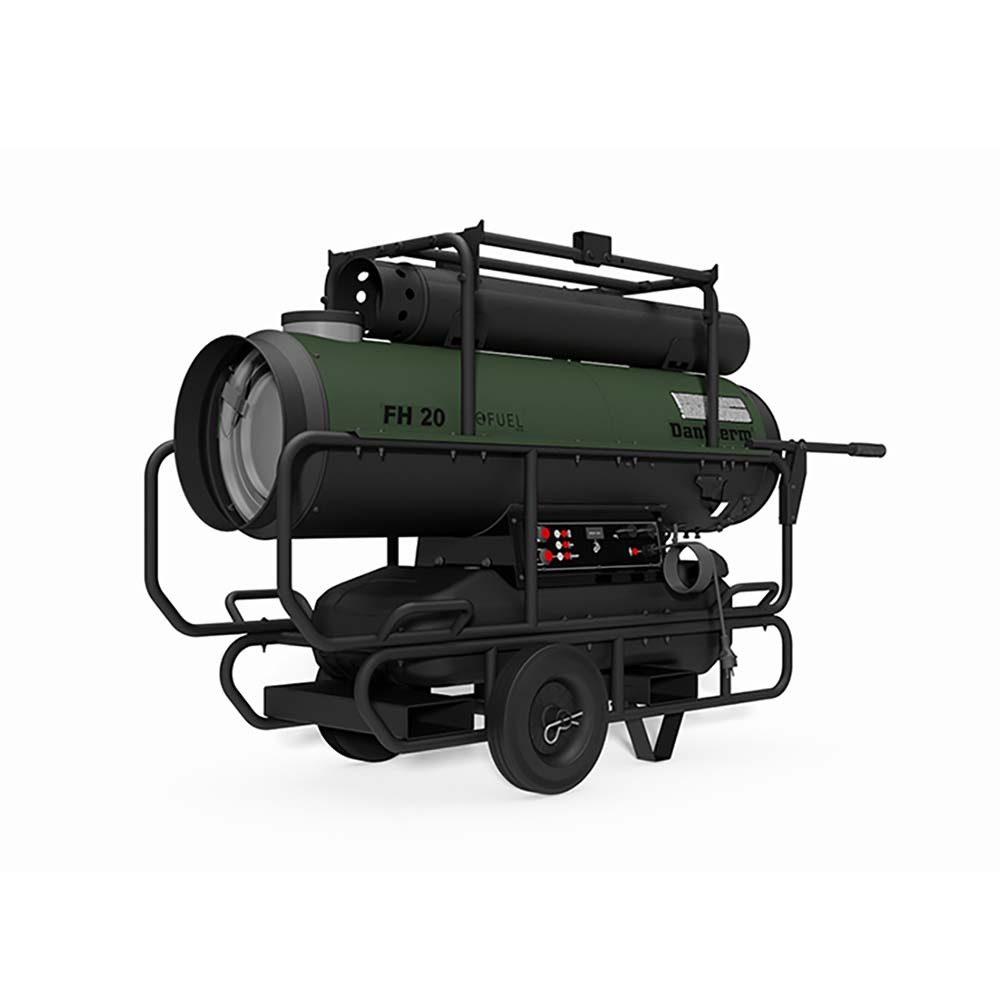

Dantherm FH 20 gold
Dantherm FH 20 gold

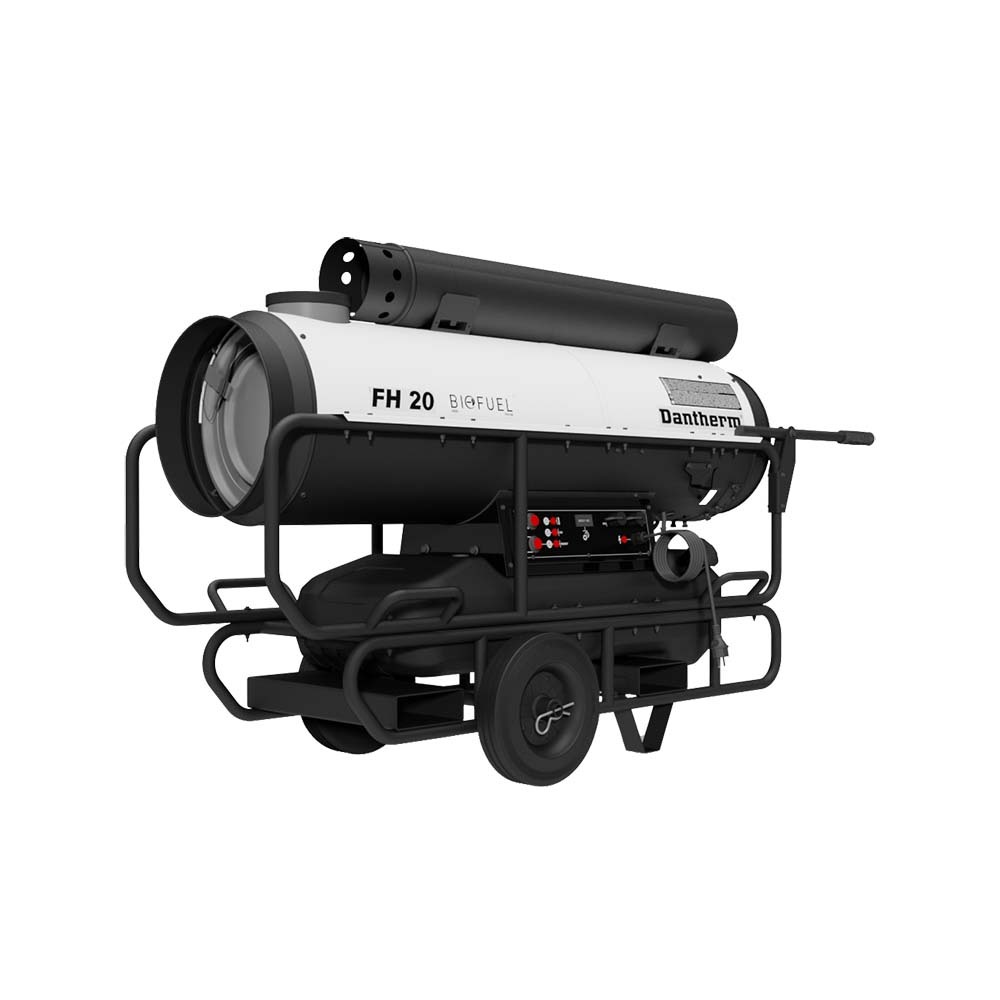

Dantherm FH 20 white
Dantherm FH 20 white

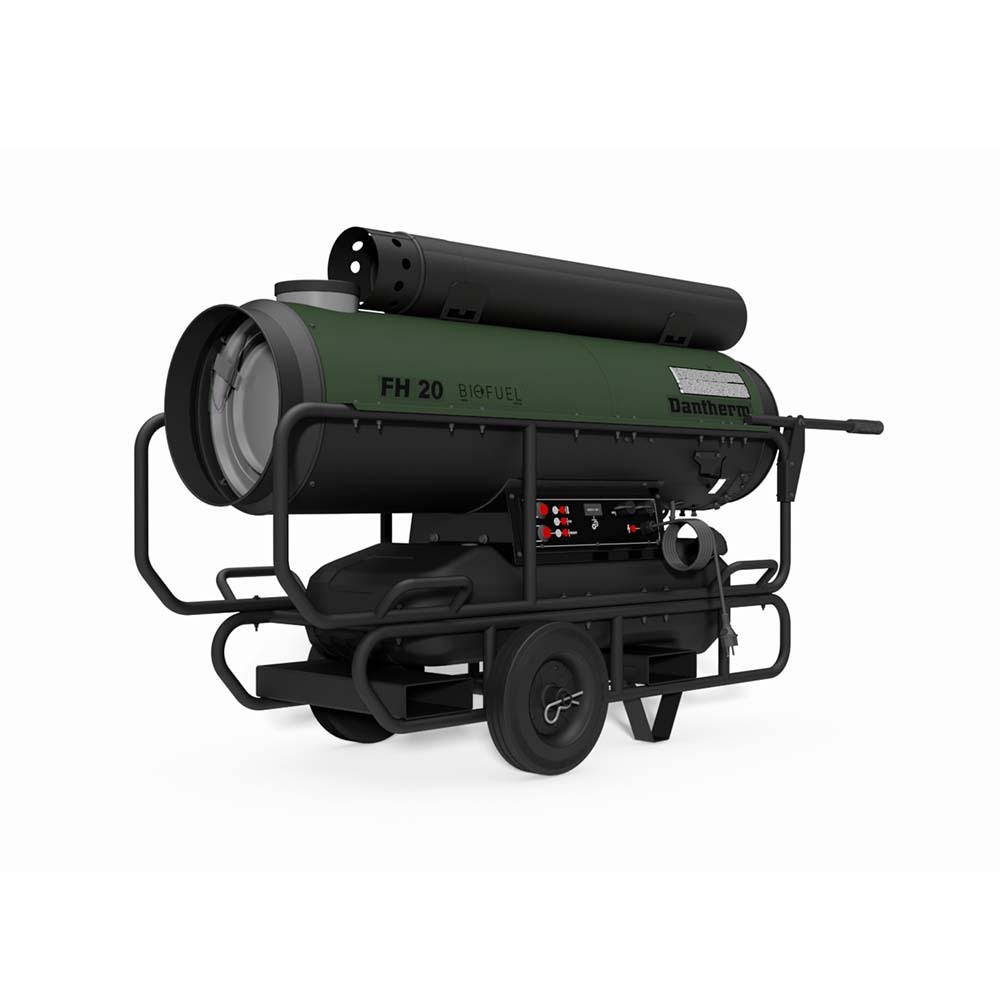

Dantherm FH 20 BI silver
Dantherm FH 20 BI silver

The heaters are based on the indirect fired (clean air) principle to avoid introducing combustion or fumes into occupied spaces. With their industry-leading warm-up capabilities, the forced air system heaters are essentially self-contained and require no more than an external source electric power and some fuel in the built-in tank. They run on almost all diesel fuels.

Specifically developed to provide heating in tents or other temporary and transportable buildings, FH Warm Air Heaters are suitable for outside installation with supply and return air ducted to the tent or temporary building.

View all of our tent heaters or search for an indirect oil fired, indirect fuel fired or other type of commercial heater to meet your required applications.

Interested?

Key features

  • Can operate at temperatures down to -40°C
  • Creates a comfortable working environment
  • Equipment and transportation such as helicopters stay warm and ready for use, reducing wear and tear and ensuring quicker response times
  • Reliable and virtually maintenance free
  • Easy to transport
  • Can be set up by one person without the use of tools, and is easy to operate
  • Developed in close collaboration with the armed forces of NATO countries
  • Ideal for open air operation with ducted supply and return air
  • Adjustable fresh-air intake
  • Large built-in fuel tank
  • The efficient multi-liquid burner accepts almost all diesel fuels
  • New innovative 2 stage burning principle, which reduces energy consumption, creates a more comfortable room temperature and reduces wear and tear
  • CE-marked

Product variants

  • Bronze = Unit with built-in wheels
  • Silver = Bronze package + lifting pockets
  • Gold = Silver package + stackable frame

Product specifications

Registered NSN number

Yes
-


Operating temperature range

-40 – +30
°C


Heat output – stage 1/2

21/27
kW


Air flow

1,815
m3/h


Sound level (measured with mounted hoses) @ 1.5m

74
dB(A)


Protection class

IP44


Max. fuel consumption

1.6/2.1
l/h


Power supply

230/1ph/50
V/Hz


Rated current

3.8
A


Air discharge increasing temperature

37/49
°C


Flex duct connection

350
Ømm


Tank capacity

65
l


Product size (h x l x w)

1458 x 614 x 966
mm


Weight - Bronze variant

95
kg


Product specifications (US)

Registered NSN – NATO Stock Number

Yes


Operating temperature range

-40 – +86
°F


Heat output – stage 1/2

71,650 / 92,100
BTU


Efficiency

88
%


Air flow

1230
SCFM


Fresh air volume

0 – 200
SCFM


Protection class

3S
NEMA


Fuel consumption

0.423 / 0.555
gal/h


Power supply

120/1ph/60
V/Hz


Max. current

7.15
A


Sound level (measured with mounted hoses) @ 1.5m

74
dB(A)


Duct connection (1x)

13.8
Øin


Ducting recirculation (1x)

13.8
Øin


Operation above sea level

9842
ft


Tank capacity

17
gal


Product size (h x l x w)

57.4 x 24.2 x 38
in


Height with chimney installed

7.2
ft


CE & Safety

CE + UL compliant


Weight - Bronze variant

209
lbs


Accessories and consumables

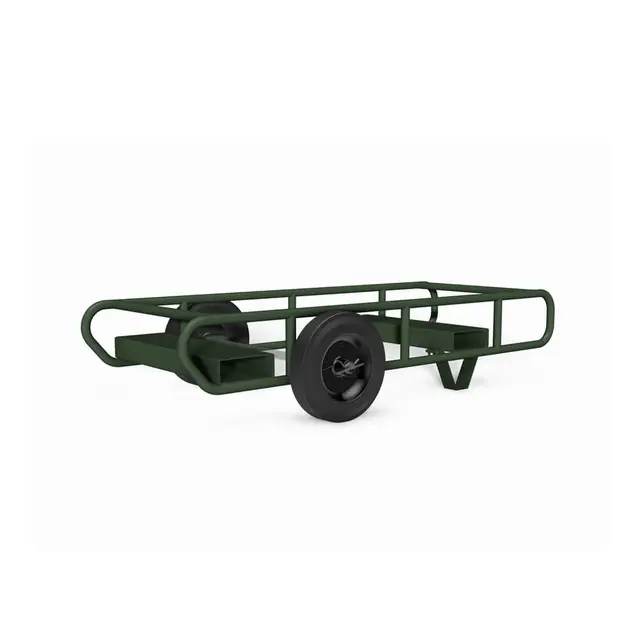

Dantherm Forklift pockets 4035 738
Dantherm climate solutions badge

Product code: 4035.738

Accessory for FH 40

Dantherm Forklift pockets 4035 740
Dantherm climate solutions badge

Product code: 4035.740

Accessory for FH 20

Dantherm Air distribution ducts 4515 381
Dantherm climate solutions badge

Product code: 4515.381

Accessory for FH 40

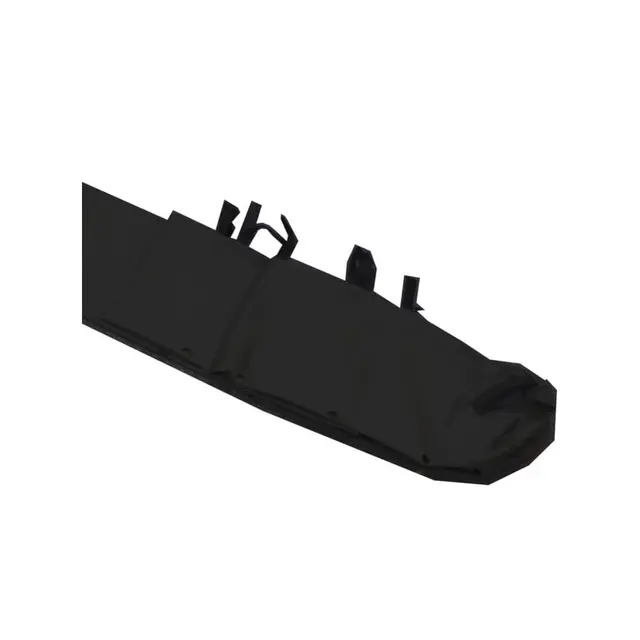

Dantherm Air distribution ducts 4515 380
Dantherm climate solutions badge

Product code: 4515.380

Accessory for FH 20

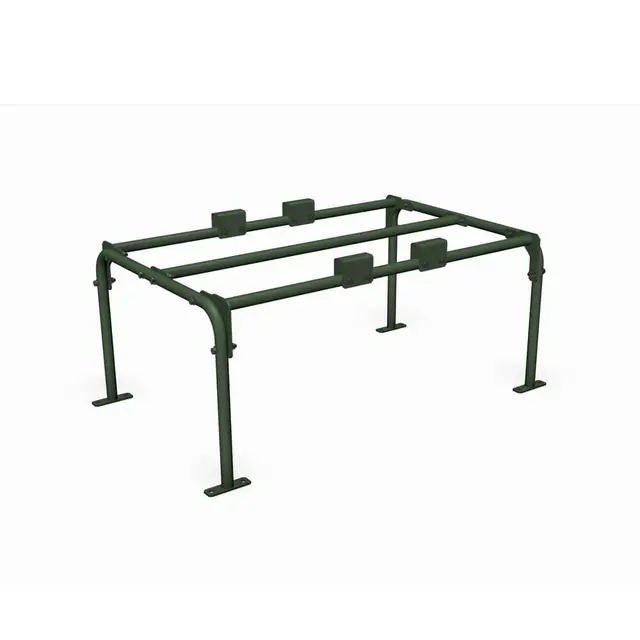

Dantherm Stacking frame 4035 739
Dantherm climate solutions badge

Product code: 4035.739

Accessory for FH 40

Dantherm Stacking frame 4035 741
Dantherm climate solutions badge

Product code: 4035.741

Accessory for FH 20

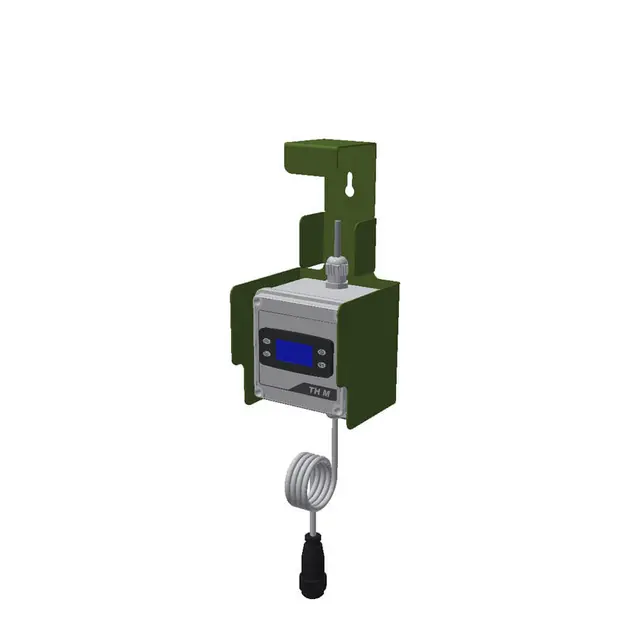

Dantherm Remote thermostat TH M with cable 15m 4035 555
Dantherm climate solutions badge

Product code: 4035.555

Accessory for FH 20-40

Dantherm Insulated flexible air duct 4515 372
Dantherm climate solutions badge

Product code: 4515.372

Accessory for FH 40

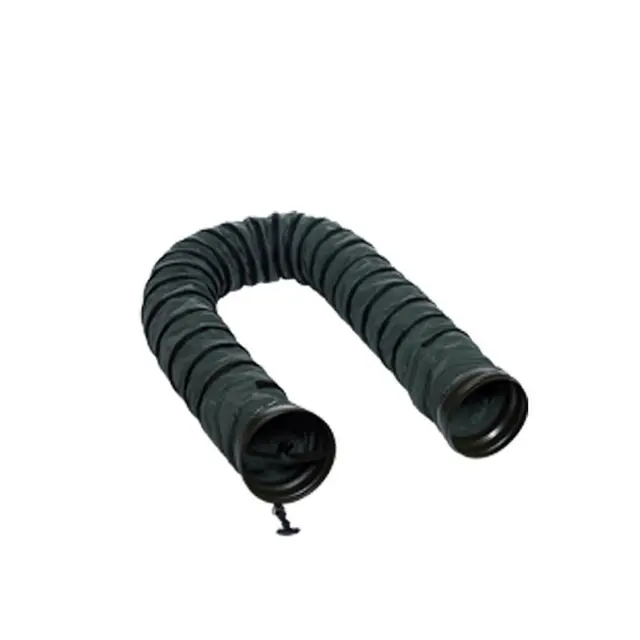

Dantherm Insulated flexible air duct 4515 371
Dantherm climate solutions badge

Product code: 4515.371

Accessory for FH 20

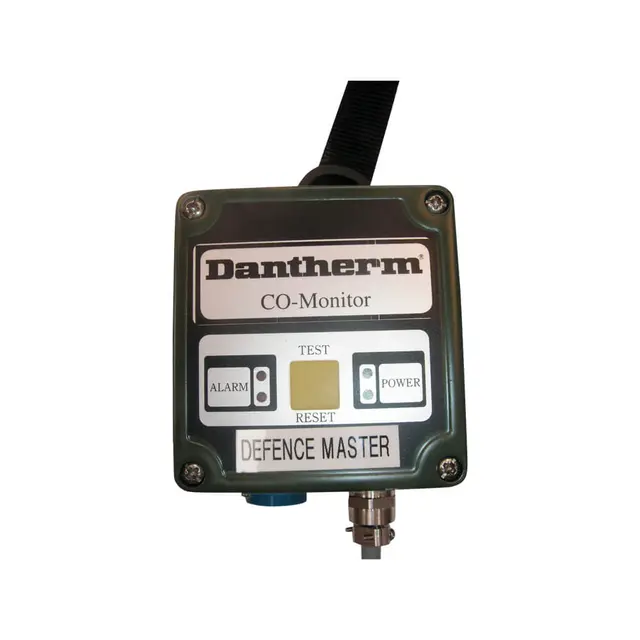

Dantherm Remote CO monitor 096472
Dantherm climate solutions badge

Product code: 025432

Accessory for VA-M15MKII, VA-M40MKII, FH 20-40

Useful downloads

Where to Buy Icon

Looking to buy?

Get in touch and we will connect you with the right office or dealer.

Looking for Spares Icon

Looking for spares?

The direct route to spare parts for your equipment.

Looking for Servicing Icon

Looking for servicing?

Contact us for help in finding the right service professional near you.

Related products

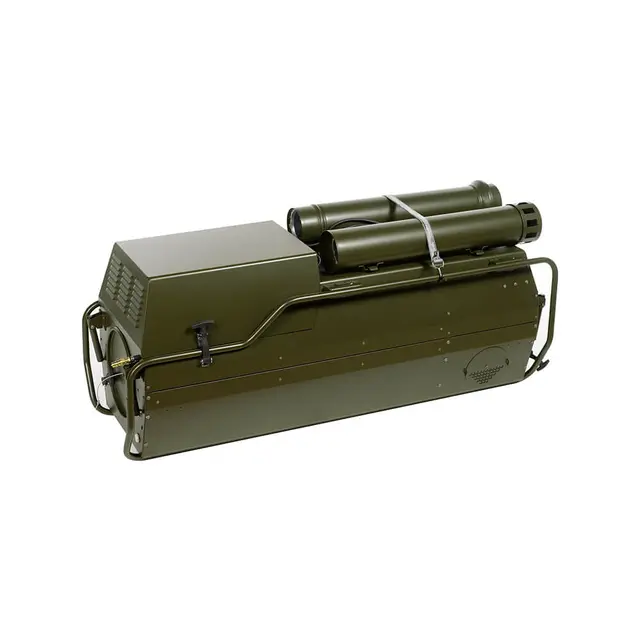

Dantherm VA-M15MKII – tent heater
Dantherm climate solutions badge

Tent heaters

The VA-M15 MKII warm air heater is a transportable 17.9kW unit primarily developed to heat tents and temporary buildings.

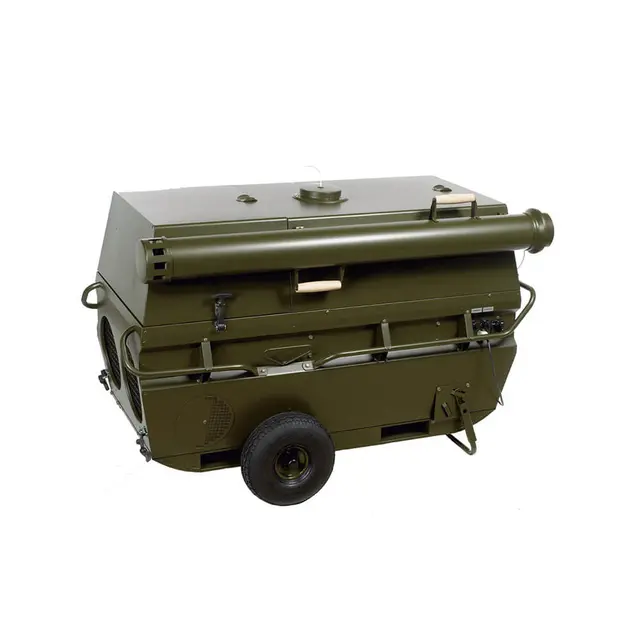

Dantherm VA-M40MKII – tent heater
