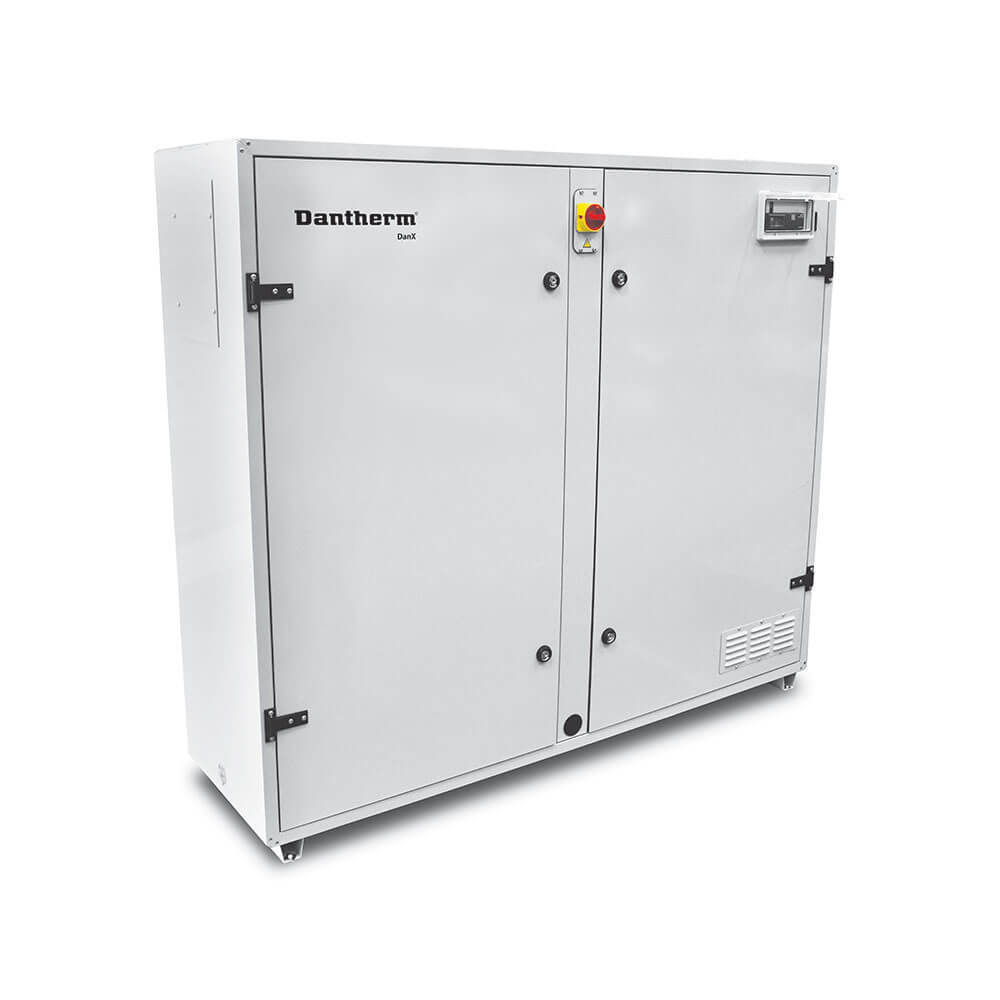

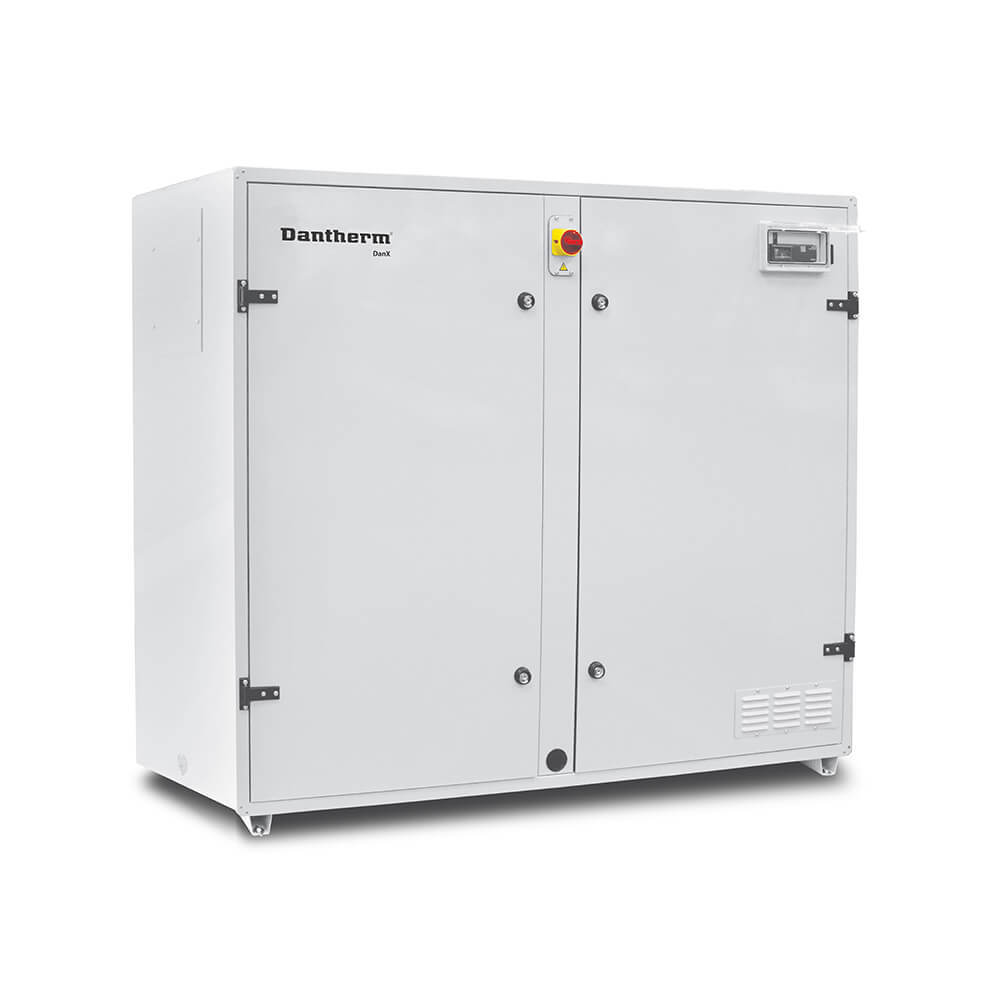

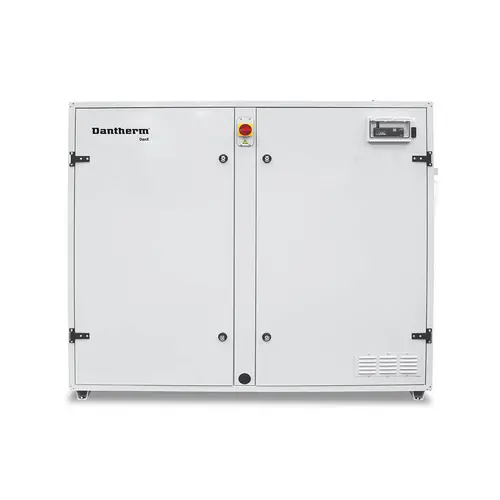

Dantherm DanX 1-2-3 HP – air handling units

Swimming pool and commercial
Dantherm climate solutions badge
Dantherm DanX 1-2-3 XD HP – swimming pool air handling units
Dantherm DanX 1-2-3 XD HP – swimming pool air handling units

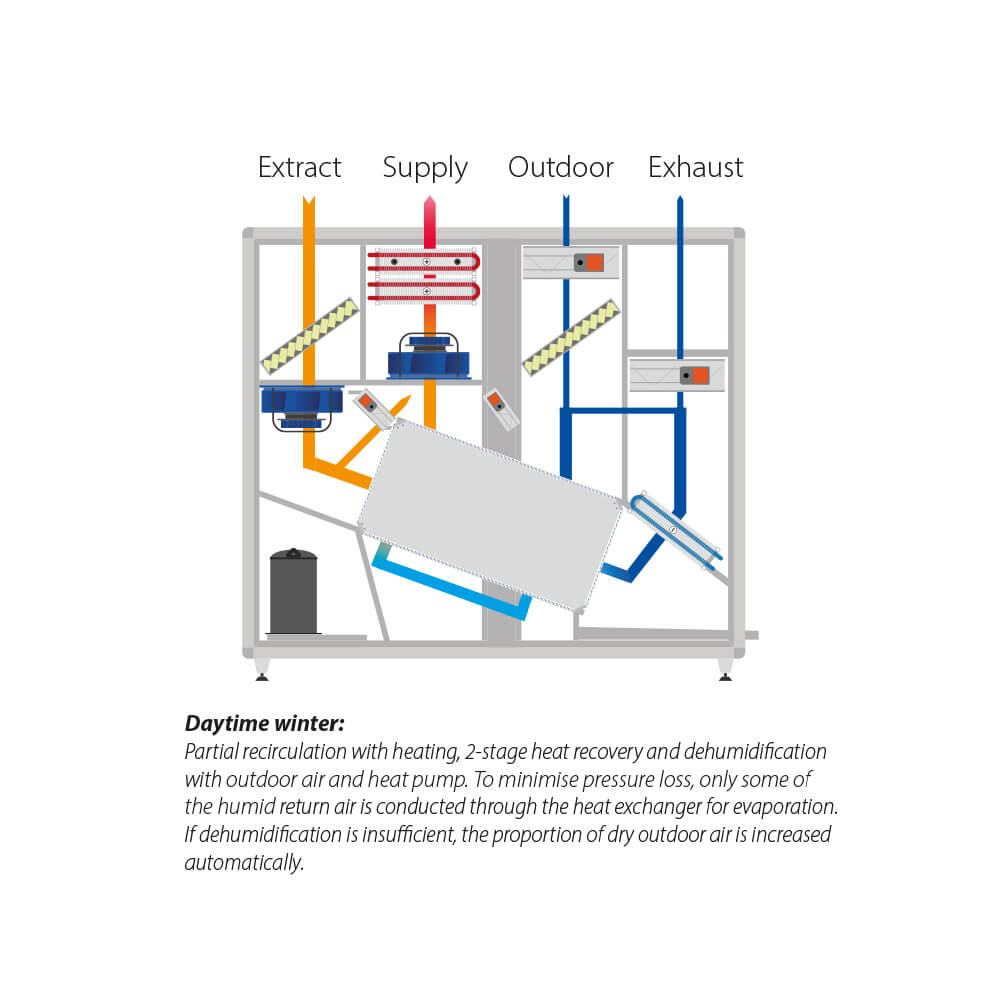

Dantherm DanX HP diagram

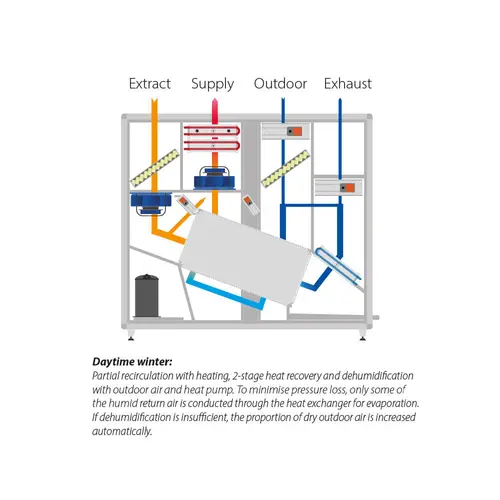

Dantherm DanX HP diagram

The DanX HP air handling unit combines the strengths of a heat pump system with a system that dehumidifies using outdoor air. The combined heat pump and highly effective double cross flow heat exchanger precisely regulate both humidity and temperatures in the pool room.

Interested?

Key features

  • Built-in heat pump with rotary compressor and high COP. Optional built-in water cooled condenser for heating of the pool or domestic water
  • Built-in user friendly control system for high-quality demand management. Automatic monitoring and control of pool hall temperature and humidity
  • Double crossflow heat exchangers with a high efficiency of more than 85% and a low pressure drop
  • Built-in by-pass for free cooling in the summertime
  • Highly energy-efficient EC plug fans
  • Efficient M5/ePM10 70% and F7/ePM1 55% compact filters with low pressure drop
  • Self-bearing cabinet with hot-dip galvanised, powder-painted sandwich panels with 50mm mineral wool insulation, internal partition walls with 30mm and bottom frame with adjustable feet
  • Designed to withstand the aggressive swimming pool environment (Corrosion class C4 according to EN/ISO 12944-2), with epoxy-coated crossflow heat exchangers, coils with aluminium frame, pre-painted fins and epoxy coating to protect all fasteners, bolts and nuts
  • Two large inspection doors with strong hinges and tongue locks and handles for easy access for service
  • All-in-one box solutions for easy and quick installation with all sensors and electrical components already connected
  • BMS communication with either Modbus or BACnet

DanX HP with double cross flow heat exchanger and heat pump

The DanX HP combines the strengths of a heat pump system with a system that dehumidifies using outdoor air. The combined heat pump and highly effective double cross flow heat exchanger precisely regulate both humidity and temperatures in the pool room.

In addition to heat recovery exceeding 100% the heat pump optimises dehumidification, so that the proportion of outdoor air never exceeds what is necessary to ensure comfort. For further energy optimization, a water-cooled condenser can be integrated into the heat pump. This allows the excess heat to be transferred to the pool or the hot water supply, where it is reused.

The built-in mixing function takes care not to add any more outdoor air than necessary to provide a comfortable indoor climate. Free cooling is also an option during the summer, when the unit can add up to 100% outdoor air into the pool area through a bypass. The unit's compact, integrated design enables optimal installation in the technical room. Convenient top or side connections ensure easy access to ducts.

Product specifications

Nominal air volume

1,000
m³/h


Max. air volume

1,300
m³/h


Max. external duct pressure

350
Pa


Outdoor air volume

0-100
%


Dehumidification capacity recirculation

1.7
kg/h


Dehumidification capacity VDI 2089

7
kg/h


Power consumption compressor

0.6
kW


Max. power consumption

1.7
kW


Power supply

230/1ph/50
V/Hz


R407C gas weight/CO₂ equivalent

1.0/1.77
kg/t


Product size (w x d x h)

1750 x 515 x 1570
mm


Weight

279
kg


Accessories and consumables

Dantherm Dan X touchscreen
Dantherm climate solutions badge

Accessory control

The touch panel is a control system for the DanX 1-2-3. It allows remote control of the unit with an intuitive interface...
