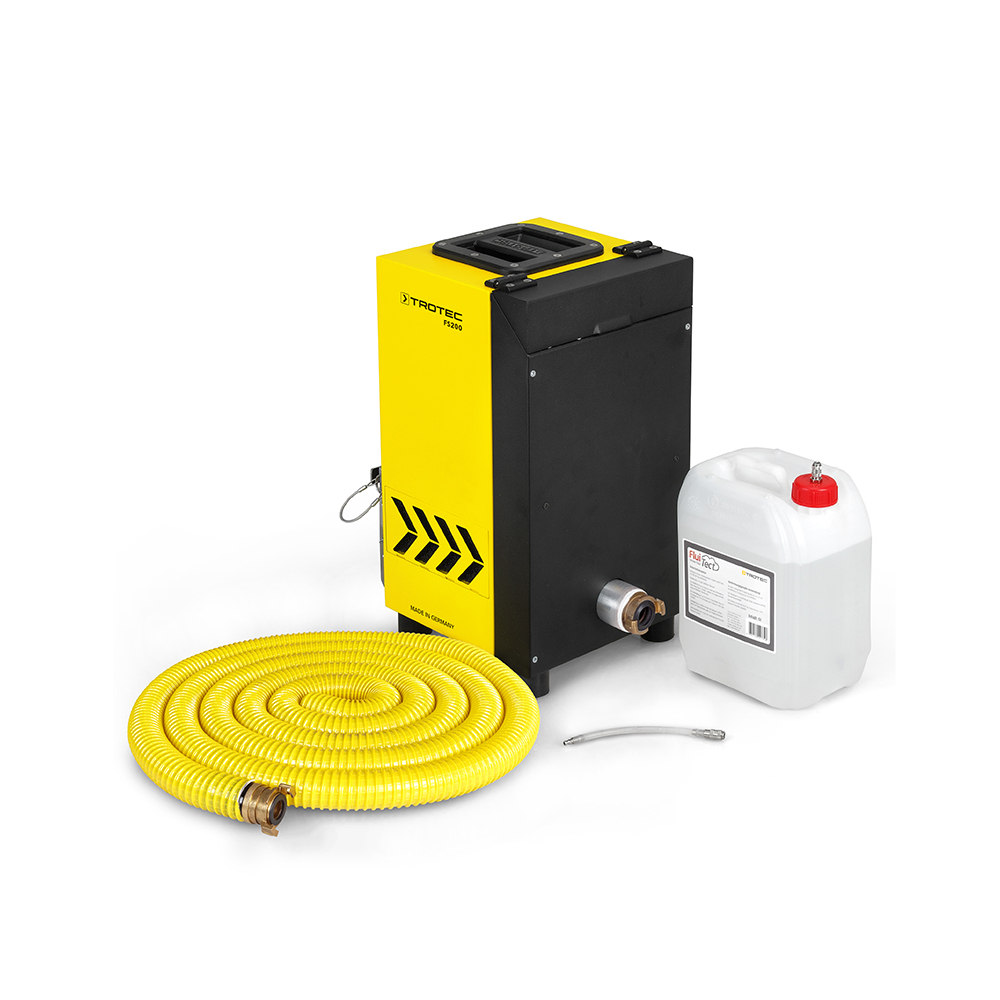

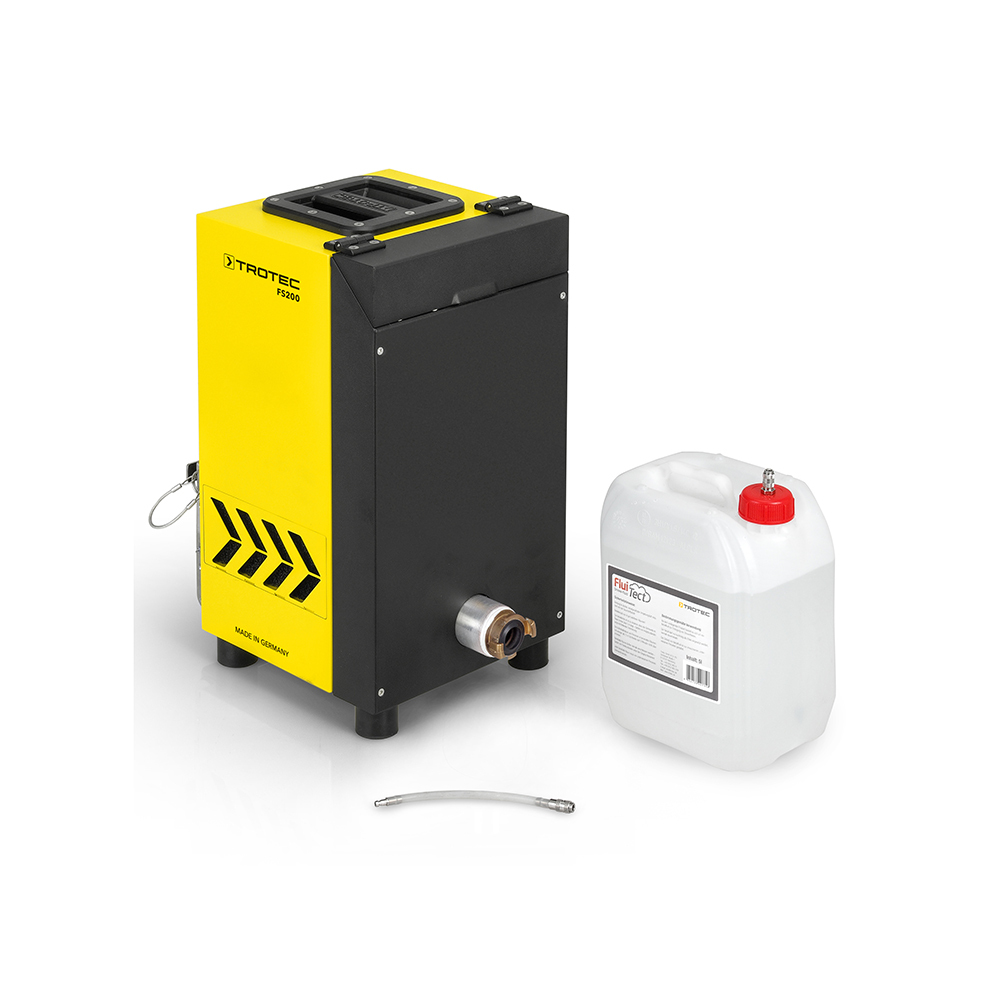

Trotec FS200 – Fog and flue gas simulator
Fog and flue gas simulator
This professional fog and flue gas simulator of German high-quality manufacturing is the most compact and lightest device in its performance class.
Thanks to smart slim design in robust aluminium lightweight construction, the transport of the FS200 to any application site will be problem free and allows you to move freely even through bottlenecks such as safety ladders.

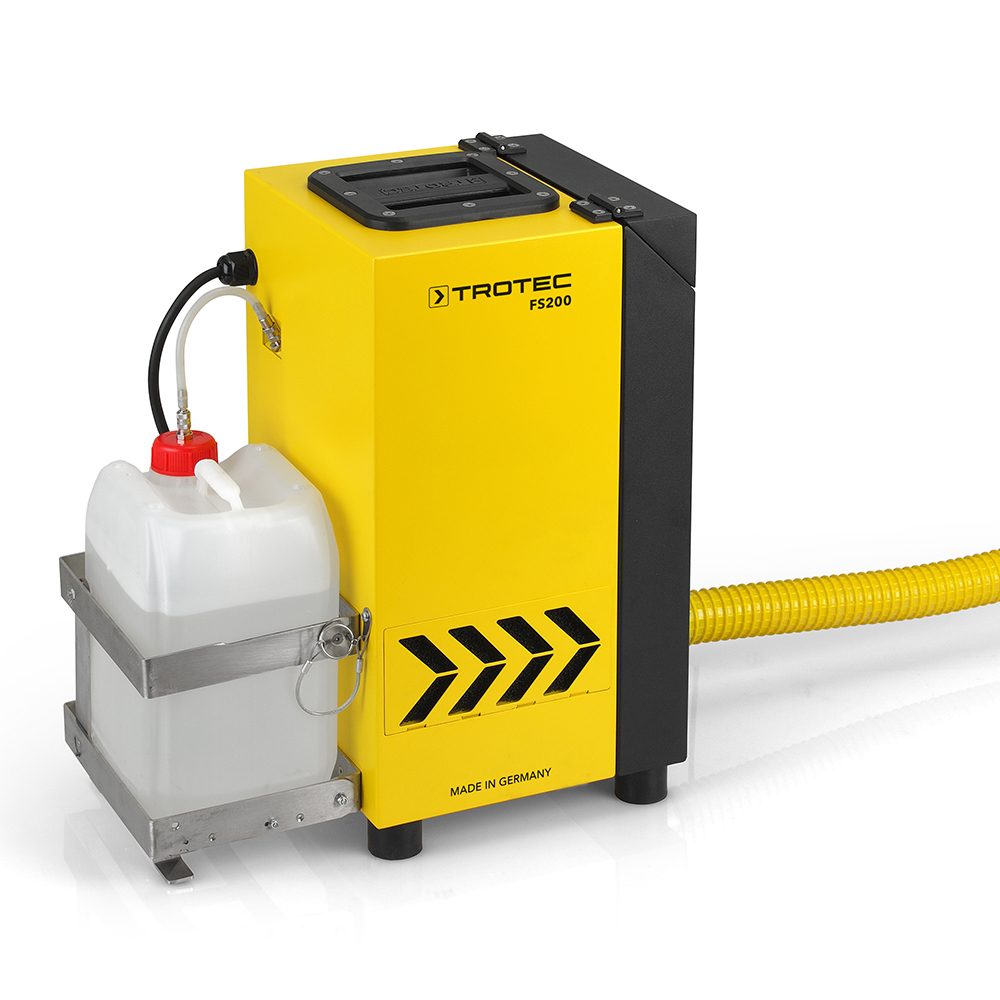

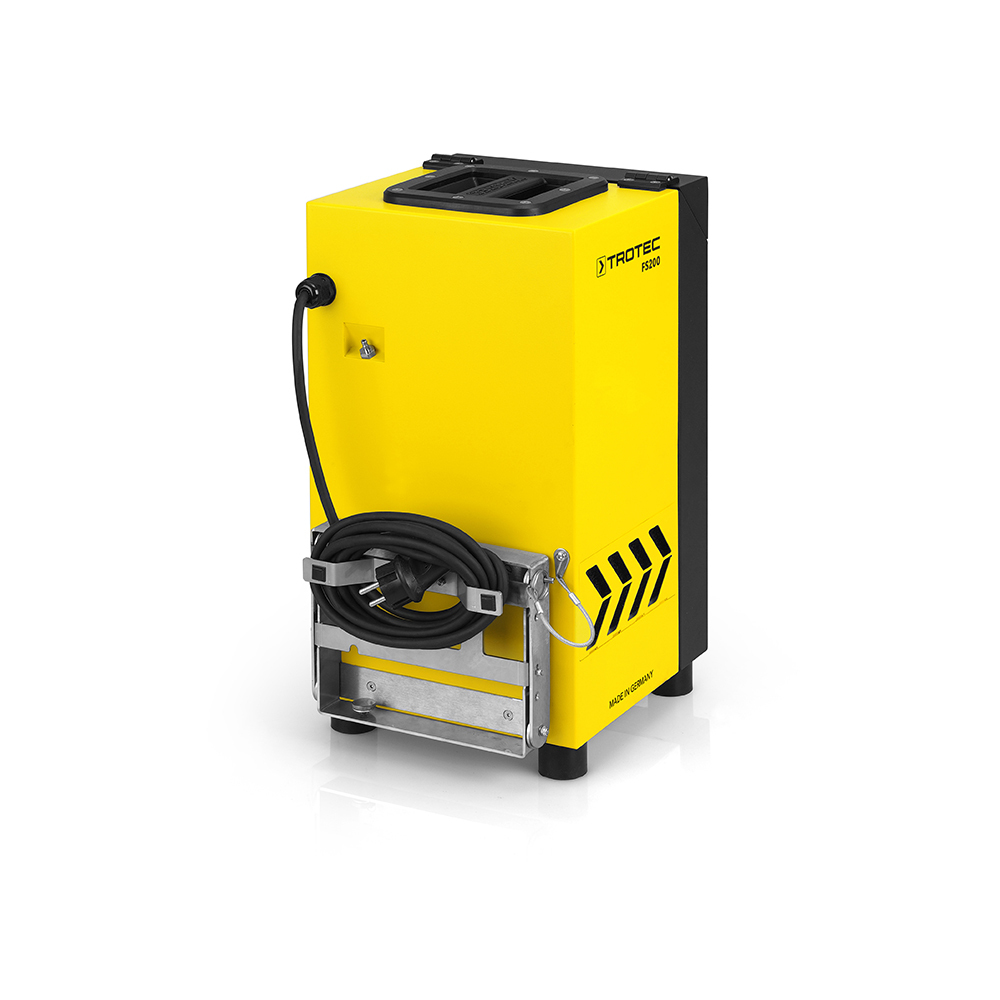

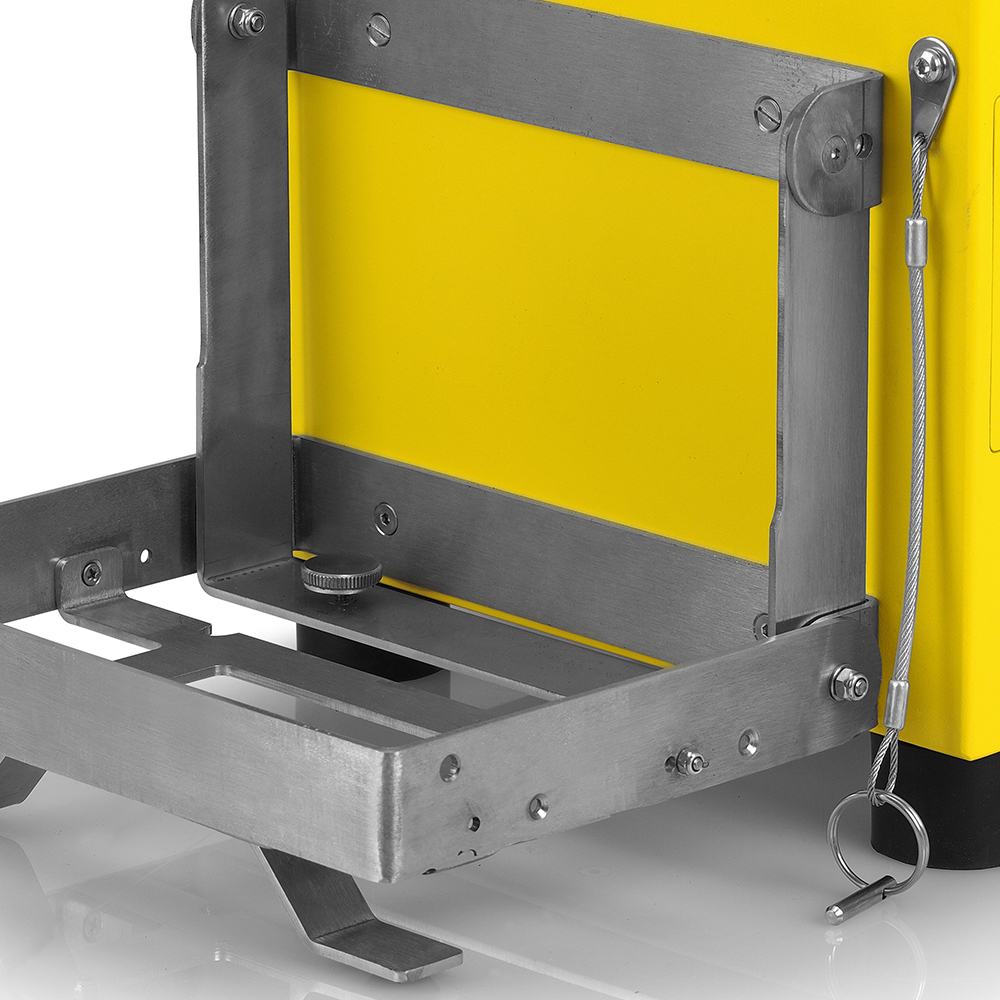

The ingenious canister holder of the FS200 can be unlocked and unfolded in a matter of seconds, increasing its support and providing more stability even on difficult surfaces like gravelled flat roofs.
For more information, please click on the catalogue.
Interested?
Key features
-
Robust aluminium lightweight construction
-
Extremely powerful fan turbine – infinitely variable
-
Space-saving integral solution with fold-up canister holder
-
Extra dense white smoke thanks to the infinitely variable fluid pump
-
Can be easily transported even through bottlenecks such as safety ladders
-
Intelligent power coupling of turbine, heating and pump for a consistently dense fog conveyance lasting several minutes without postheating-related interruptions
-
Service-friendly construction – simple filter change within seconds
-
Practice-optimised German industrial design – protected design patent
The extremely powerful turbine as well as the fluid pump of the FS200 can be infinitely adjusted in their performance for fog conveyance and hence attuned more precisely to individual operating conditions. Moreover, the intelligent power coupling of turbine, heating and pump ensures a consistently dense fog flow lasting several minutes uninterrupted by postheating even during maximum turbine performance.
The FS200’s fluid consumption is agreeably low and can amount to a maximum of no more than 100ml per minute.
Warning!
Health hazard due to unsuitable fog fluids! Using fog fluids from other manufacturers may result in the formation of harmful decomposition products. Only operate the device with the original FluiTect fog concentrate from Trotec. This product does not produce any harmful decomposition products.
Safety instructions for operation
Notice: When using fog fluids from other manufacturers, residues may form during evaporation. These residues can clog the capillaries of the heating module and damage the heating element. Such damage will void the warranty.
Product specifications
Fogging time (min.)
At maximum level: approx. 270; at medium level and less: continuous fog output
s
Evaporator power
1,500
W
Fan turbine power
1,600
W
Outlet pressure
335
mbar
Power input max
3,200
W
Type of protection
IP54
Air flow rate
Approx. 68
l/s
Fluid consumption
At maximum output: 100 ml/min; at continuous output: 30 ml/min
ml/min.
Heating-up time
2
min.
Amount of fluid in the canister
5
l
Input voltage
230/50
V/Hz
Product size (l x w x h)
310 x 253 x 465
mm
Weight
16.7 (without 5 litre fog fluid canister)
kg
Accessories and consumables
Useful downloads
Related products
Combination detector for leak detection
LD6000 – the optimum solution for trade, industry, and utilities

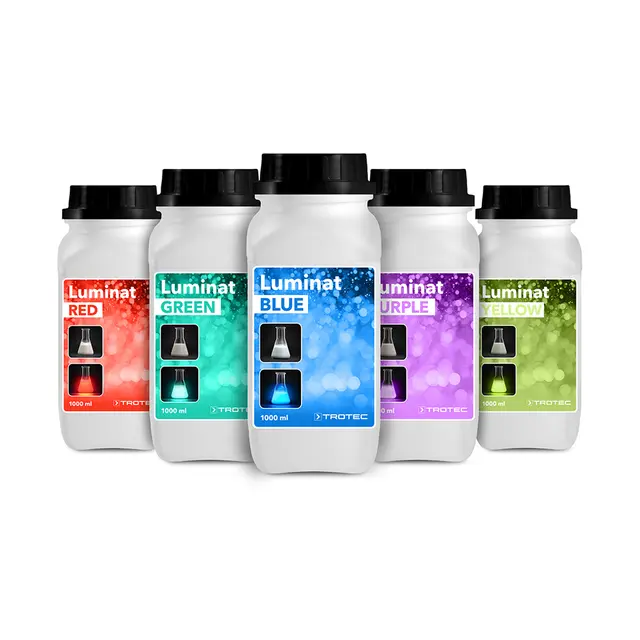

UV tracers
