Heylo PowerVent 12000 – axial ventilator
High performance blower for fast drying
The PowerVent 12000 is a high-performance ventilator for fast drying and venting of large objects, such as buildings, shafts and tunnels. They offer a maximum air stream at appropriately low electrical power.
The ventilator transports the air across long distances and at a high counter pressure.

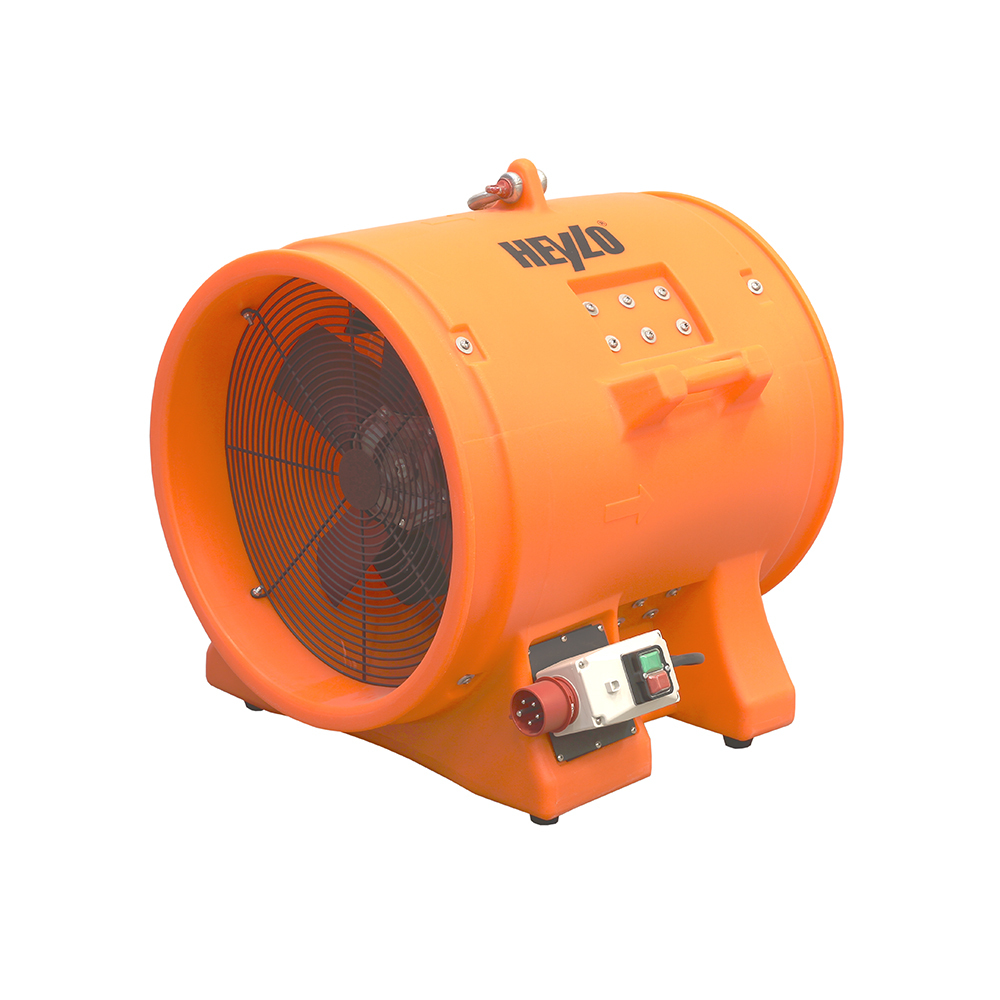

Heylo axial ventilator PV 12000
|

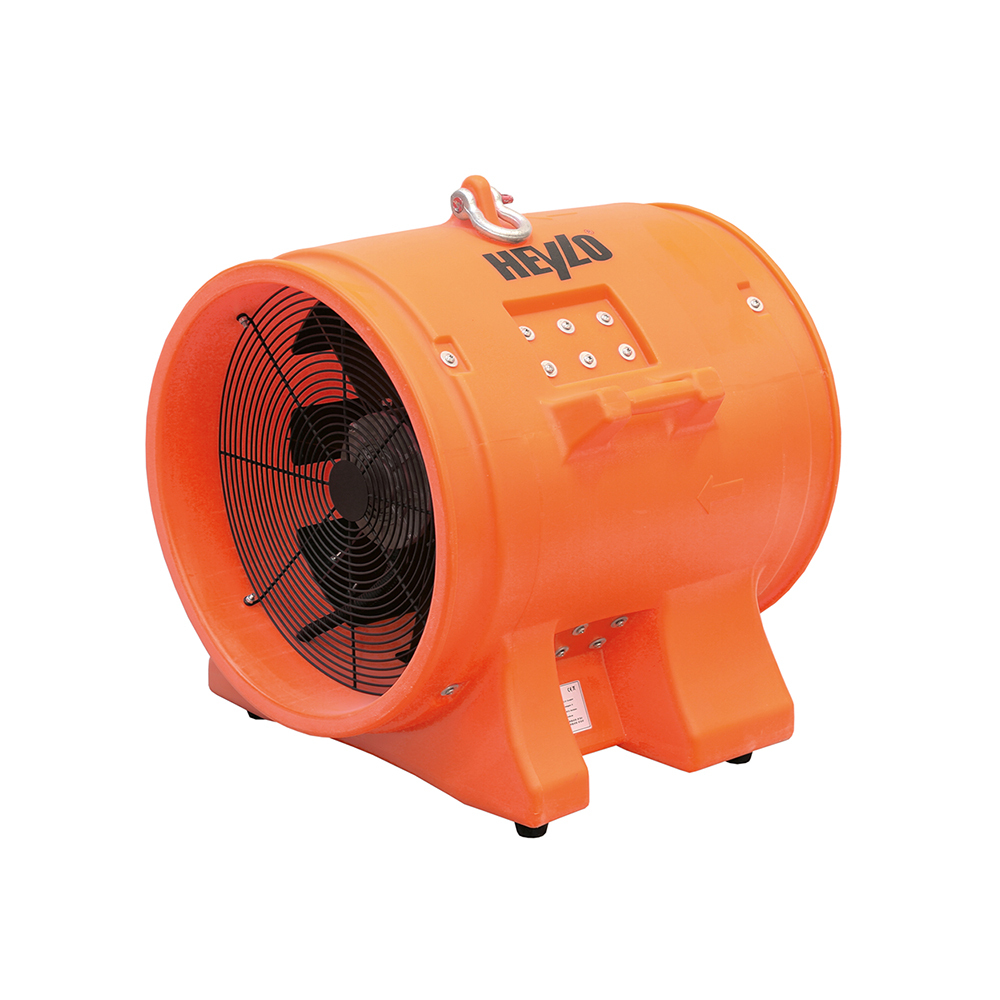

Heylo ventilator PV 12000 back
|

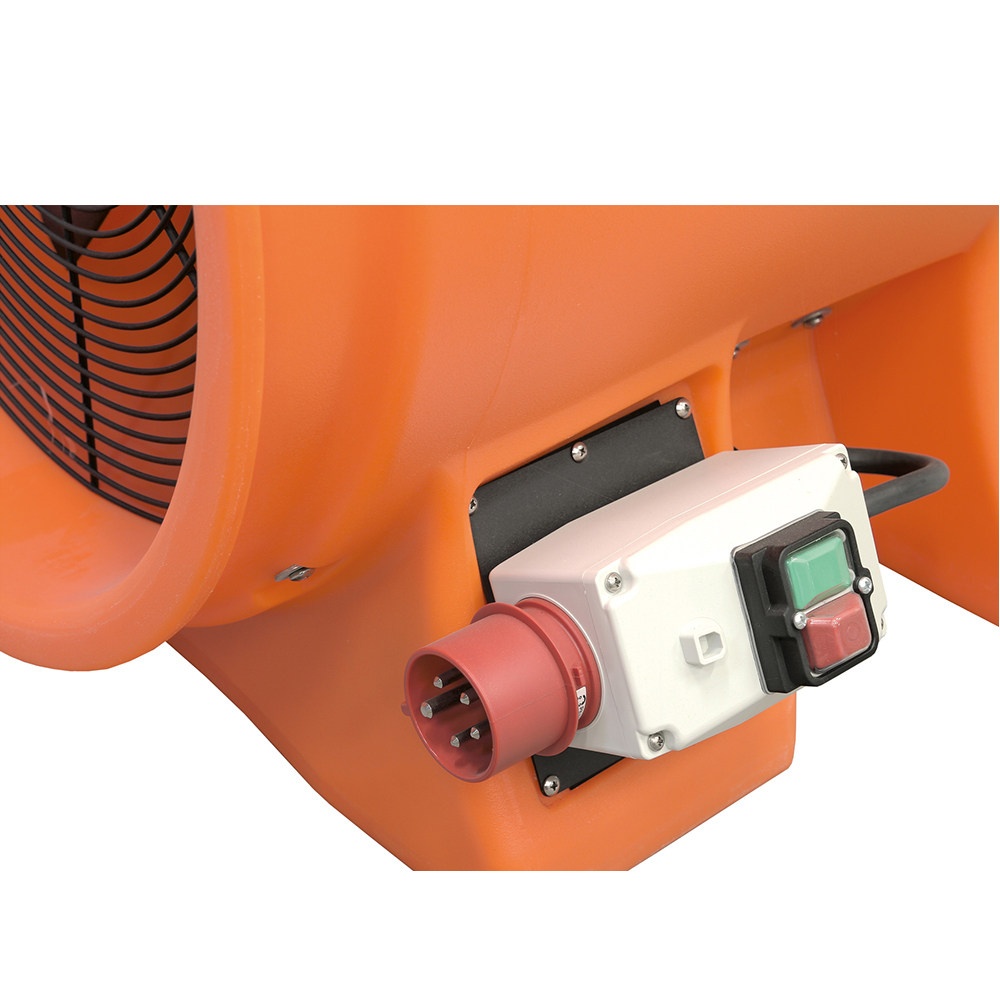

Heylo ventilator PV 12000 switches
|

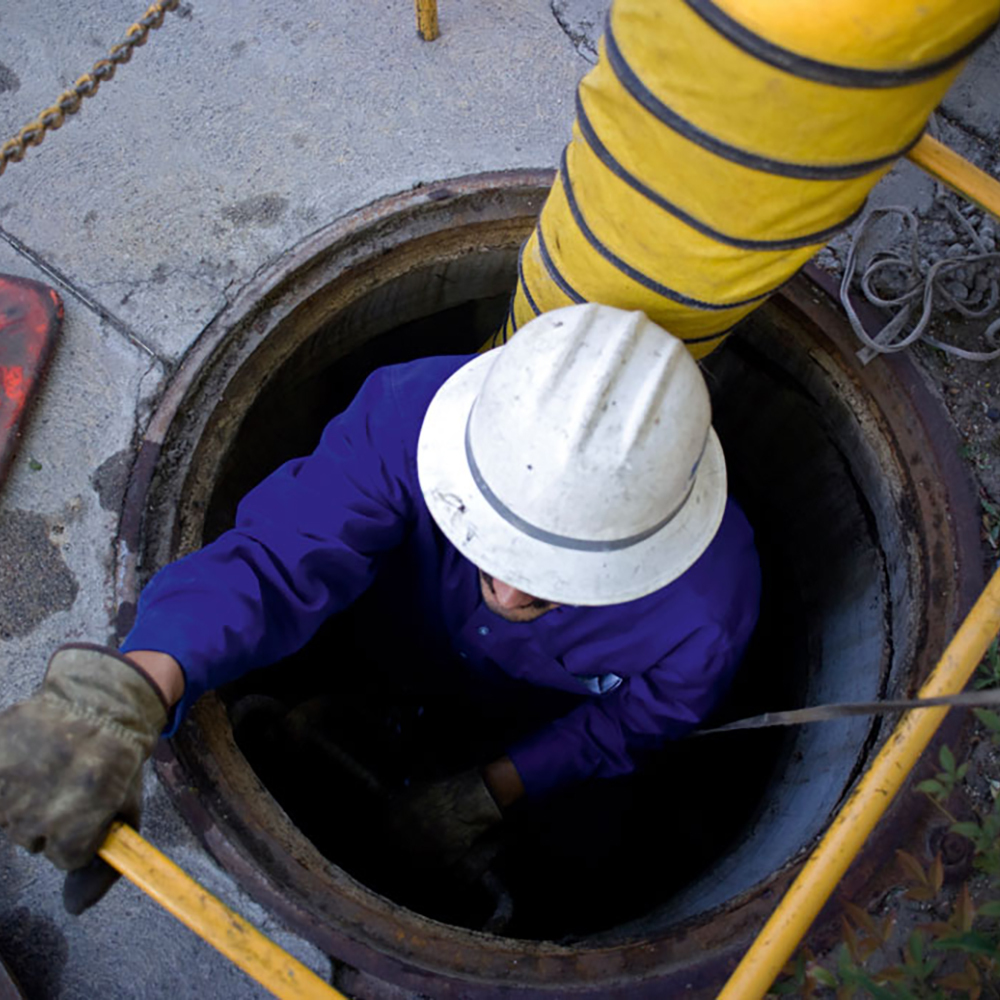

Heylo ventilation in shafts
|
Key features
- Fast drying and ventilation of large objects such as buildings, shafts and tunnels
- Used in civil engineering and industry
- High air compression for long hoses. The air can also be transported over long distances and under high back pressure
- Easy to transport thanks to practical 2-man transport handles
- Robust housing
Product specifications
| Specifications | Units | PV 12000 |
|---|---|---|
| Air flow | m³/h | 10,550 |
| Air pressure | Pa | 744 |
| Fan | type | Axial |
| Blower stages | 1 | |
| Power consumption | W | 3.7 |
| Power supply | V/Hz | 400/3ph/50 |
| Outlet size | Ømm | 550 |
| Protection class | IP44 | |
| Product size (l x w x h) | mm | 655 x 640 x 720 |
| Box size (l x w x h) | mm | 730 x 740 x 870 |
| Net/gross weight | kg | 57/82 |
| Pallet | pcs | 2 |
Suitable for
- Commercial buildings
- Construction
- Industrial, factories and production
- Rental companies
- Water damage restoration
