Dantherm AC-M18 – tent cooler
Tent cooler
The AC-M18 air-conditioner is a portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents. It is a compact, light-weight aluminium unit built into a rigid steel frame.
The AC-M18 is designed for outside installation with ducted supply and return air. For field hospitals, where the need for filtration is higher than that of normal accommodation, a dual filtration system for the internal air path is available. The ACM 18 is also available as a split system for sealed applications (ACM 18 CBRN).
View our range of air cooling units and tent coolers suitable for all types of application and commercial purpose on any scale.

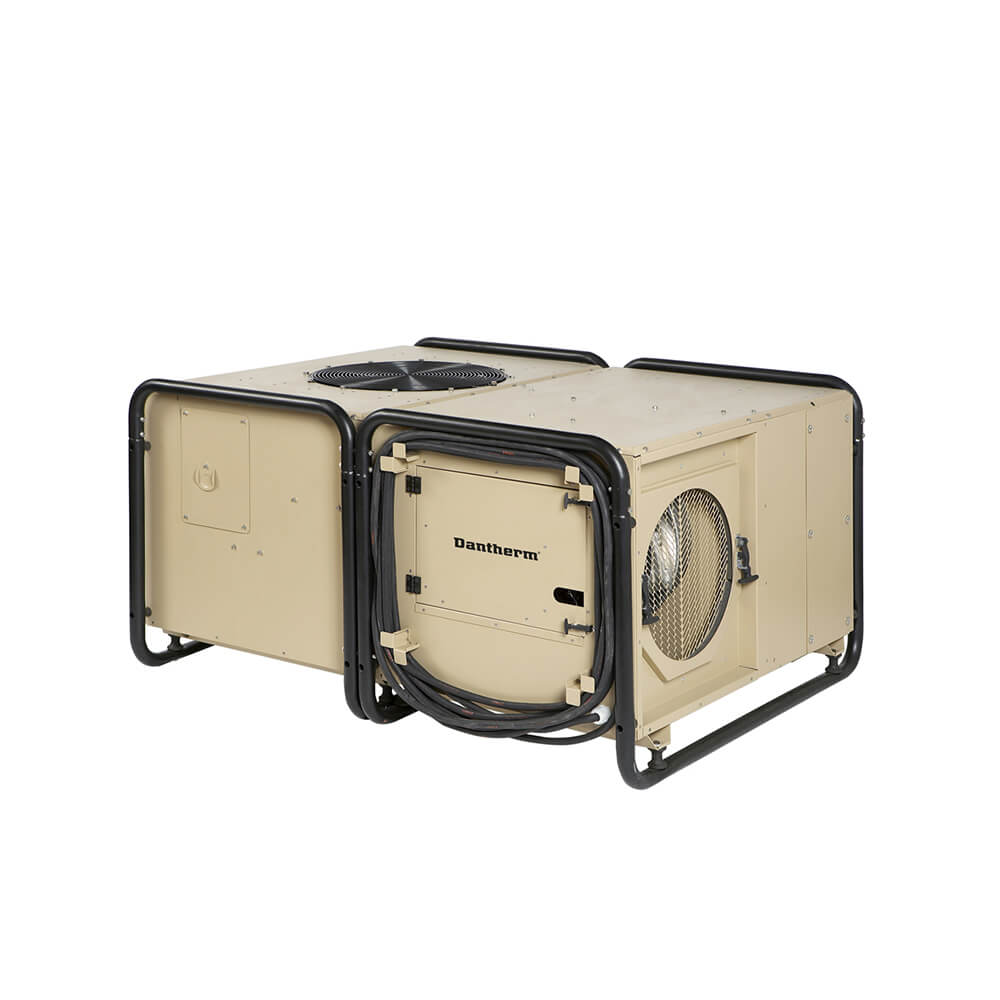

Dantherm AC-M18 – tent cooler
|

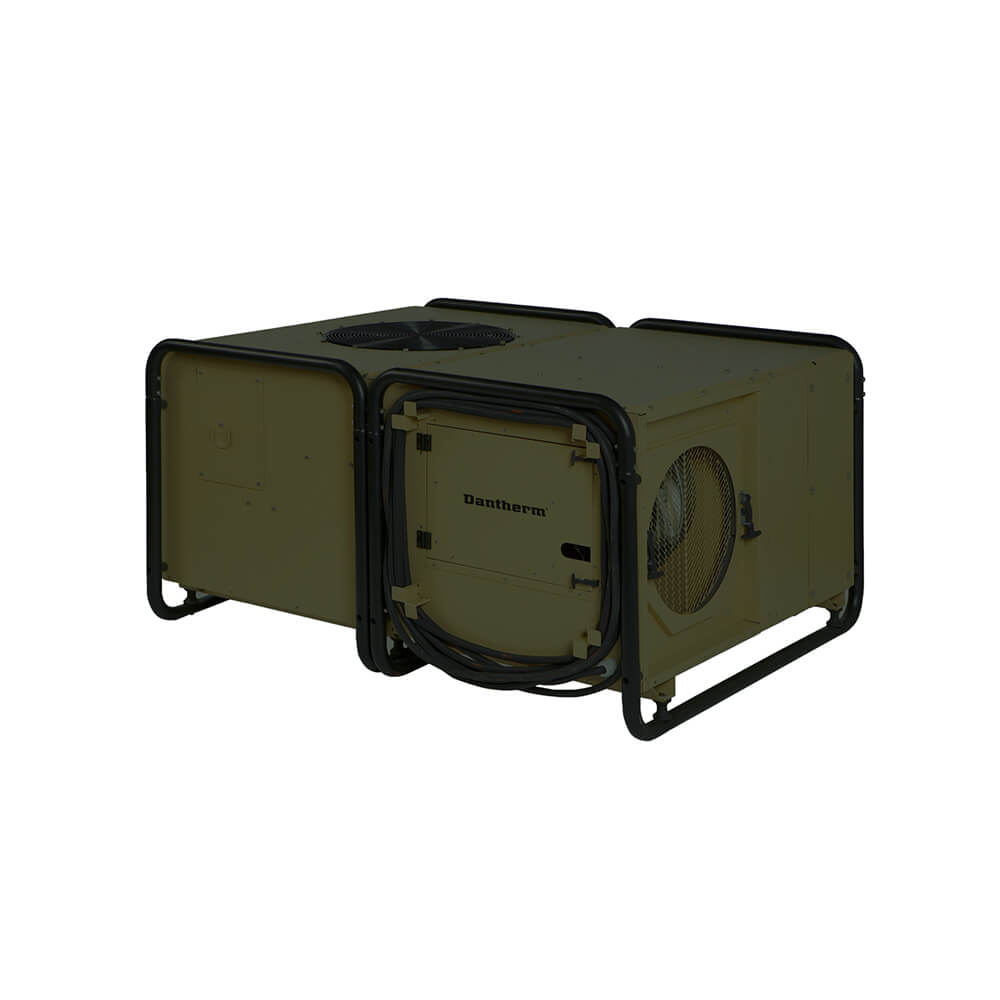

Dantherm AC-M18 green coloured
|

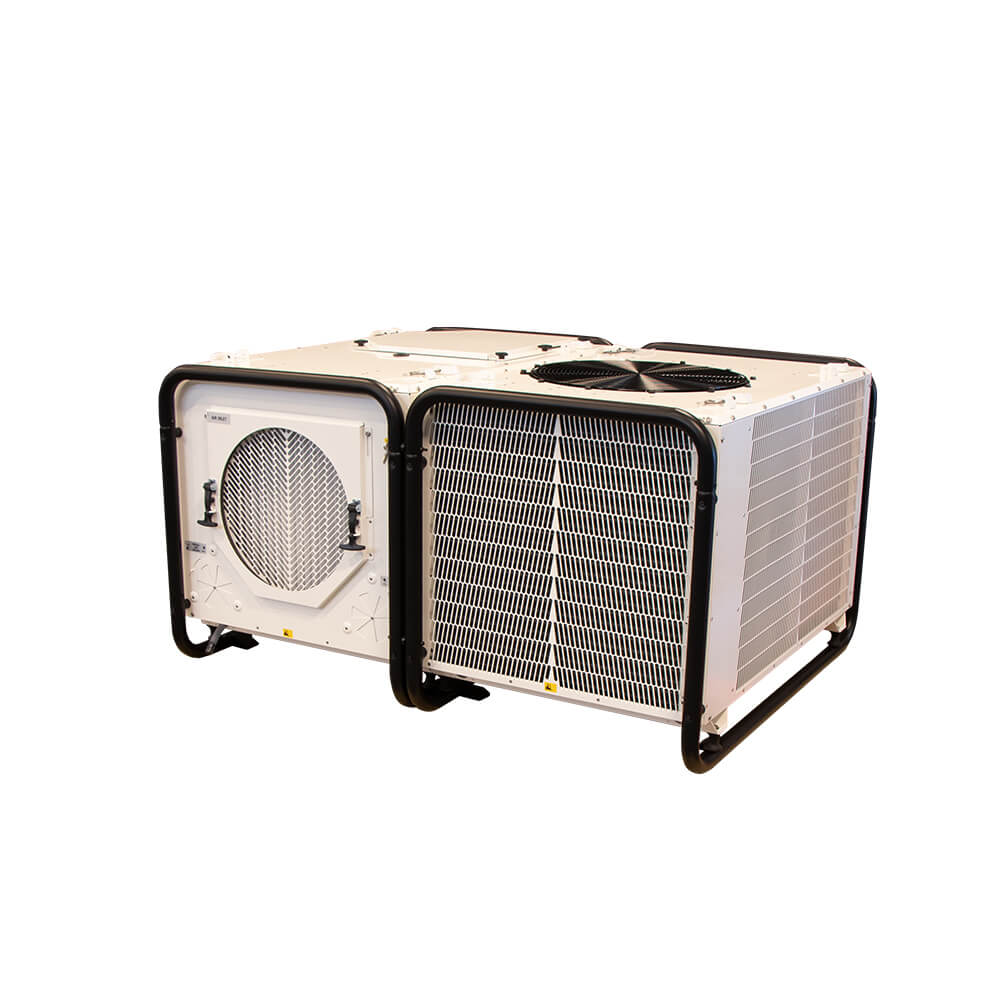

Dantherm AC-M18 white coloured
|
Dantherm climate solutions for field camps
|

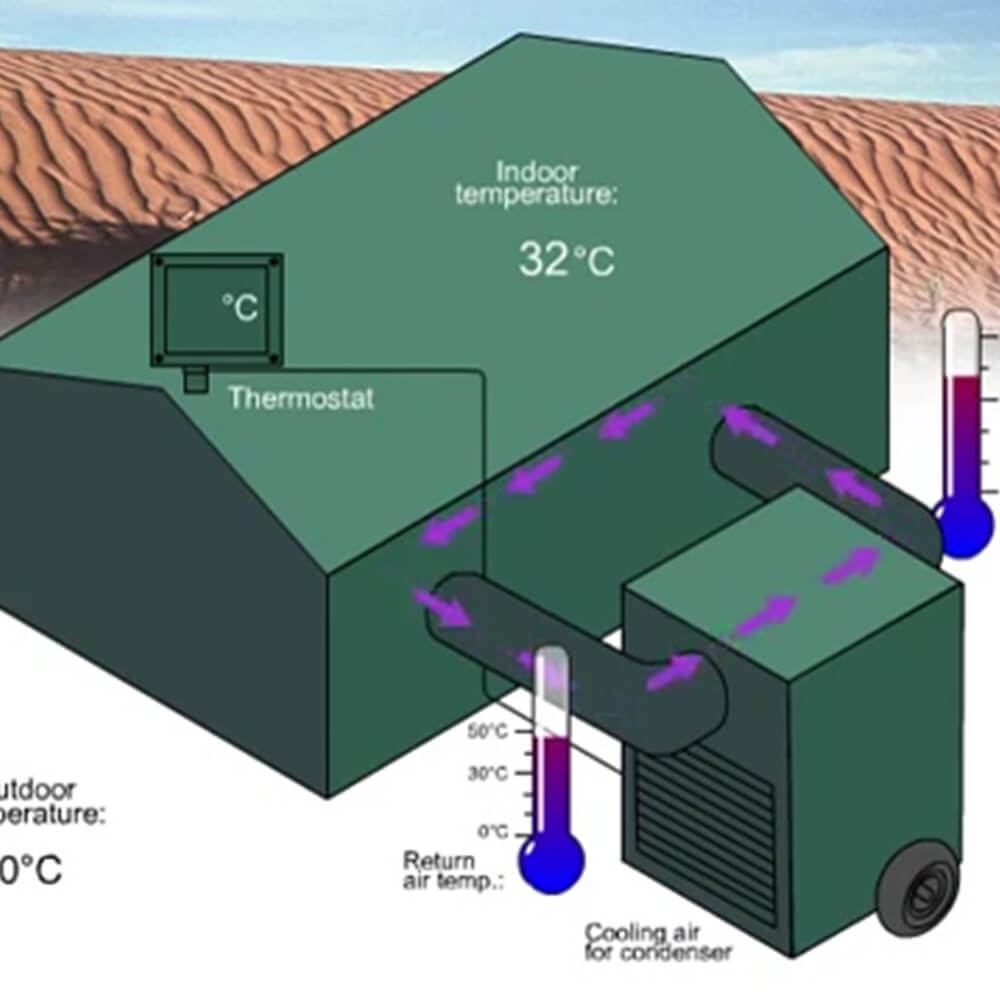

AC-M air conditioner animation
|
Dantherm AC-M18 control panel
|

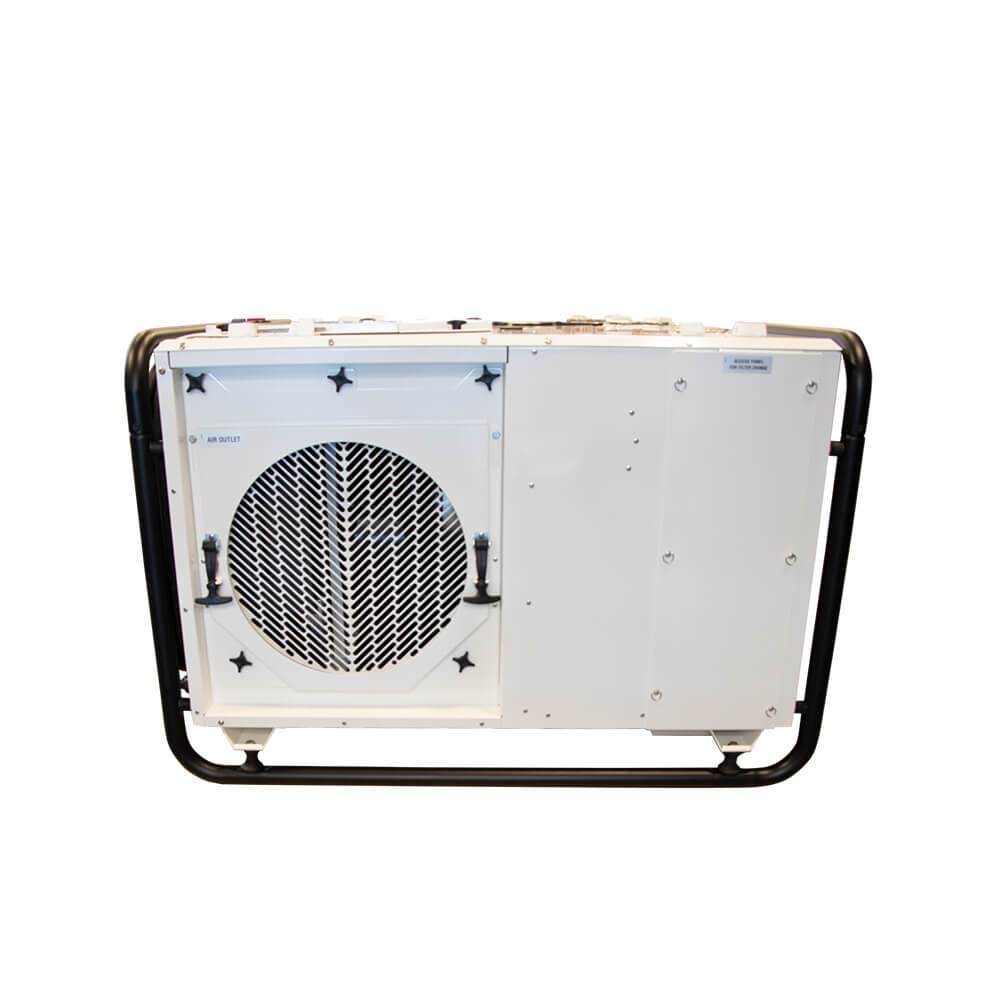

Dantherm AC-M18 air outlet
|

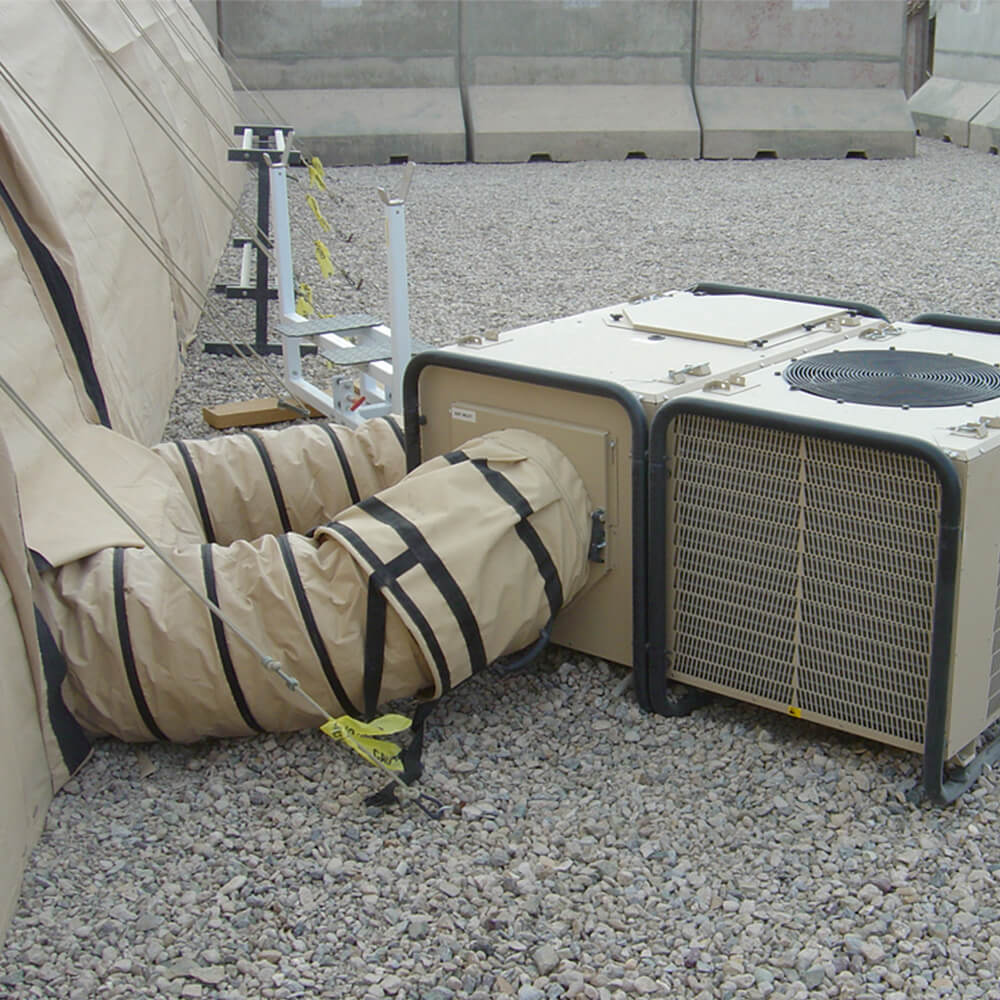

Dantherm AC-M18 installation
|
Key features
- Designed for optimal utilization of a standard 20" ISO container (24 pcs)
- The AC-M18 is built into a strong metal frame with insulated panels where relevant, powder coated
- Top finish painting is standard sand colour
- Option with built in heating will heat when ambient temperature is below 20°C
- Scroll compressor for a high degree of reliability and low noise level
- Automatic phase surveillance
- Sequential start of units possible
- HP/LP pressostat switches ensuring long compressor lifetime
- Fresh air intake
- Four way fork lift handling
- Easy strap down on air cargo pallets and stackable (two units on top of each other)
Product specifications (metric)
| Specifications | Units | AC-M18 (3x400V/50 Hz) |
|---|---|---|
| Registered NSN number | - | Yes |
| Operating temperature range, cooling | °C | +20 – +60 |
| Operating temperature range, heating | °C | -32 – +20 |
| Air flow | m³/h | 2500 |
| Fresh air intake (two adjustable dampers) | m³/h | - |
| Sound level @ 3m | dB(A) | 59 |
| Protection class | IP | IPX5 |
| Refrigerant / quantity | kg | R134a/3.0 |
| Max refrigerant pressure | bar | - |
| Global Warning Potential | AR4 | 1430 |
| Nominal cooling capacity | kW | 17.5 |
| Heating capacity | kW | 6/16 (optional) |
| Power supply | V/Hz | 400/3ph/50 |
| Max. running current, cooling/heating | A | 16/26 |
| Locked rotor amperage (LRA) | A | 73 |
| Inrush current with soft starter | A | 56 |
| Max. power consumption cooling/heating | W | 8300/variable |
| Main plug, IEC/EN 60 309 | A | - |
| Operation height (above sea level) | m | - |
| Long term storage | °C | - |
| Power cable length | m | 10 |
| Hose/Duct connection | Ømm | 400 |
| Product size (h x l x w) | mm | 780 x 1,450 x 1,140 |
| Weight | kg | 204 |
| Specifications | Units | AC-M18 (3x208V/60 Hz) |
|---|---|---|
| Registered NSN number | - | Yes |
| Operating temperature range, cooling | °C | +20 – +60 |
| Operating temperature range, heating | °C | -32 – +55 |
| Air flow | m³/h | 2500 |
| Fresh air intake (two adjustable dampers) | m³/h | 0 to 320 |
| Sound level @ 3m | dB(A) | 59 |
| Protection class | IP | 55 |
| Refrigerant / quantity | kg | R513A / 3.5 |
| Max refrigerant pressure | bar | 28 |
| Global Warning Potential | AR4 | 631 |
| Nominal cooling capacity | kW | 16.9 |
| Heating capacity | kW | 6 / 16 |
| Power supply | V/Hz | 208/3ph/60 |
| Max. running current, cooling/heating | A | 31/48 |
| Locked rotor amperage (LRA) | A | 134 |
| Inrush current with soft starter | A | 108 |
| Max. power consumption cooling/heating | W | - |
| Main plug, IEC/EN 60 309 | A | 60 |
| Operation height (above sea level) | m | 0 to 3500 |
| Long term storage | °C | -40 to +70°C <50%RH |
| Power cable length | m | - |
| Hose/Duct connection | Ømm | 400 |
| Product size (h x l x w) | mm | 780 x 1450 x 1140 |
| Weight | kg | 208 |
Product specifications (imperial)
| Specifications | Units | AC-M18 (3x400V/50Hz) |
|---|---|---|
| Registered NSN number | Yes | |
| Operating temperature range, cooling | °F | +68 to +140 |
| Operating temperature range, heating | °F | -26 to +68 |
| Air flow | CFM | 1471 |
| Fresh air intake (two adjustable dampers) | CFM | - |
| Sound level @ 3m | dB(A) | 59 |
| Protection class | NEMA | 3R |
| Refrigerant / quantity | lbs | R134a/6.6 |
| Max refrigerant pressure | psi | - |
| Global Warning Potential | AR4 | 1430 |
| Nominal cooling capacity | BTU | 60000 |
| Heating capacity | BTU | 20500/54600 |
| Power supply | V/Hz | 400/3ph/50 |
| Max. running current, cooling/heating | A | 16/26 |
| Locked rotor amperage (LRA) | A | 73 |
| Inrush current with soft starter | A | 56 |
| Max. power consumption cooling/heating | W | 8300/variable |
| Main plug, IEC/EN 60 309 | A | - |
| Operation height (above sea level) | ft | - |
| Long term storage | °F | - |
| Power cable length | ft | 32.8 |
| Hose/Duct connection | Øin | 15.75 |
| Product size (h x l x w) | in | 30.7 x 57.1 x 44.9 |
| Weight | lbs | 450 |
| Specifications | Units | AC-M18 (3x208V/60Hz) |
|---|---|---|
| Registered NSN number | Yes | |
| Operating temperature range, cooling | °F | 68 to 131 |
| Operating temperature range, heating | °F | -26 to 68 |
| Air flow | CFM | 1475 |
| Fresh air intake (two adjustable dampers) | CFM | 0 to 190 |
| Sound level @ 3m | dB(A) | 59 |
| Protection class | NEMA | 3R |
| Refrigerant / quantity | lbs | R513A / 7.7 |
| Max refrigerant pressure | psi | 406 |
| Global Warning Potential | AR4 | 631 |
| Nominal cooling capacity | BTU | 57665 |
| Heating capacity | BTU | 20500/54600 |
| Power supply | V/Hz | 208/3ph/60 |
| Max. running current, cooling/heating | A | 31/48 |
| Locked rotor amperage (LRA) | A | 134 |
| Inrush current with soft starter | A | 108 |
| Max. power consumption cooling/heating | W | - |
| Main plug, IEC/EN 60 309 | A | 60 |
| Operation height (above sea level) | ft | 0 to 11480 |
| Long term storage | °F | -40 to +158 <50%RH |
| Power cable length | ft | - |
| Hose/Duct connection | Øin | 15.75 |
| Product size (h x l x w) | in | 30.7 x 57.1 x 44.9 |
| Weight | lbs | 459 |
Suitable for
- Camps and field hospitals
- Events and festivals
- Military and aerospace
