Trotec TD200 – laser distance meter
Mud, rain or dust put no stop to the TD200’s measuring. Because the extremely robust IP65 construction of our distance meter flagship easily withstands drops from up to 1 m and is waterjet-proof, as well as dust-proof. This allows you to clean the device even under running water and makes the TD200 the ideal choice for daily construction site applications.
Its inner values are equally impressive: 15 different measuring modes leave nothing to be desired. In addition to direct or indirect distance and height measurements, the TD200 quickly and reliably calculates circular, rectangular or triangular areas, partial distances or cylinder volumes. The ingenious interaction of the digital camera with 3x zoom, target finder and 360° tilt sensor not only enables precise long-distance measurements up to a range of 200 metres but also many measurement applications that cannot easily be carried out with conventional devices.
For more information, please click on the catalogue.

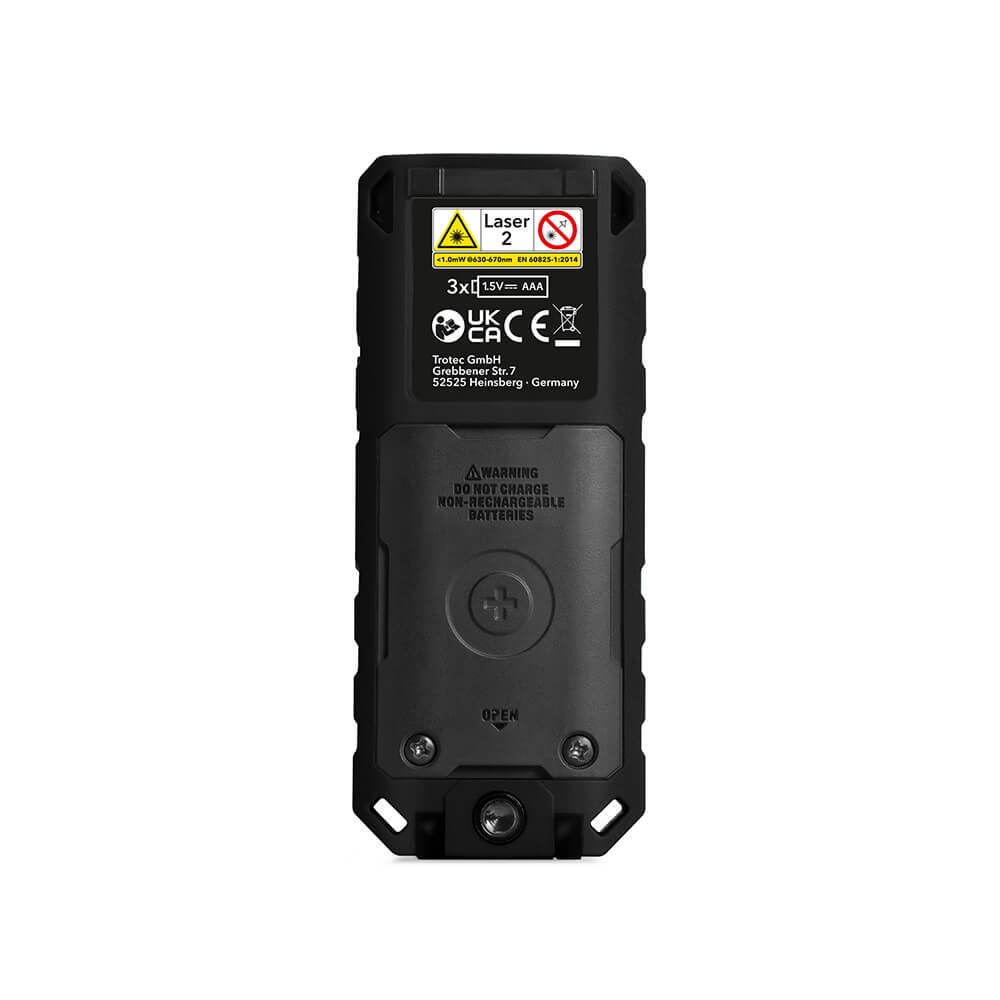

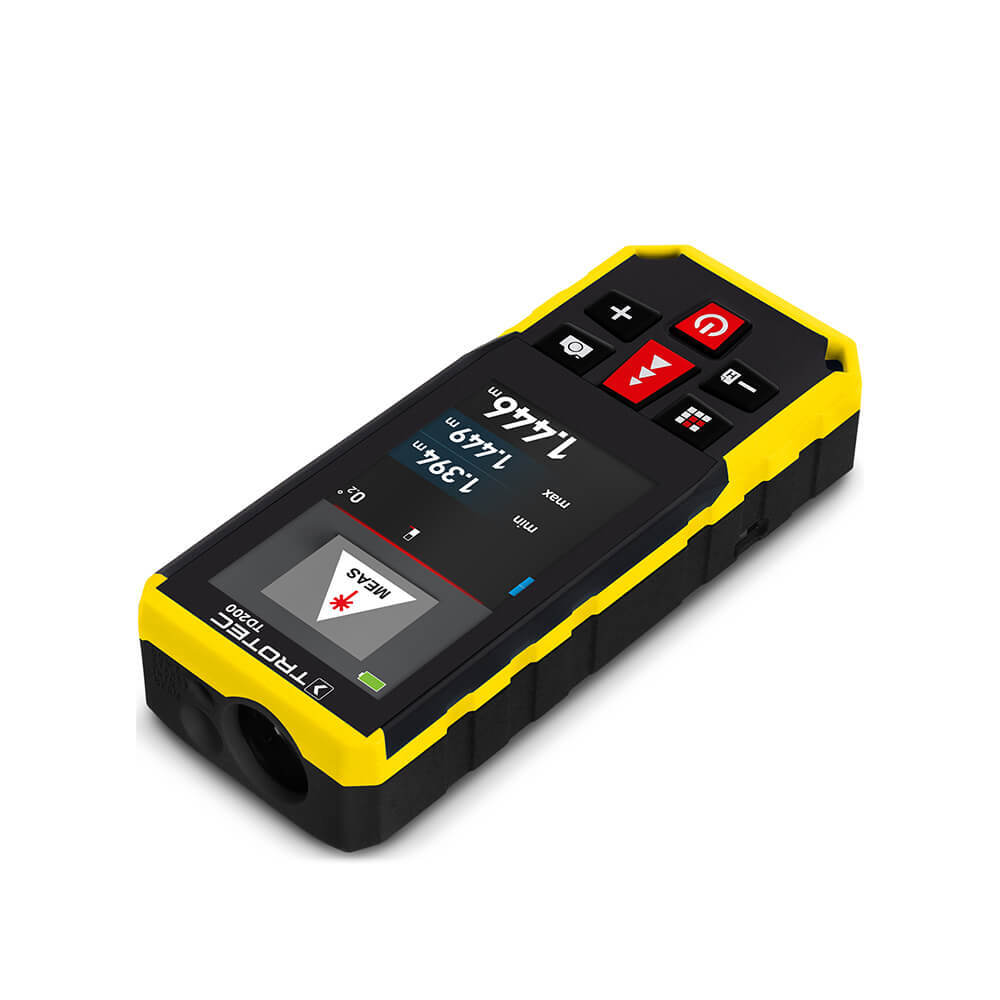

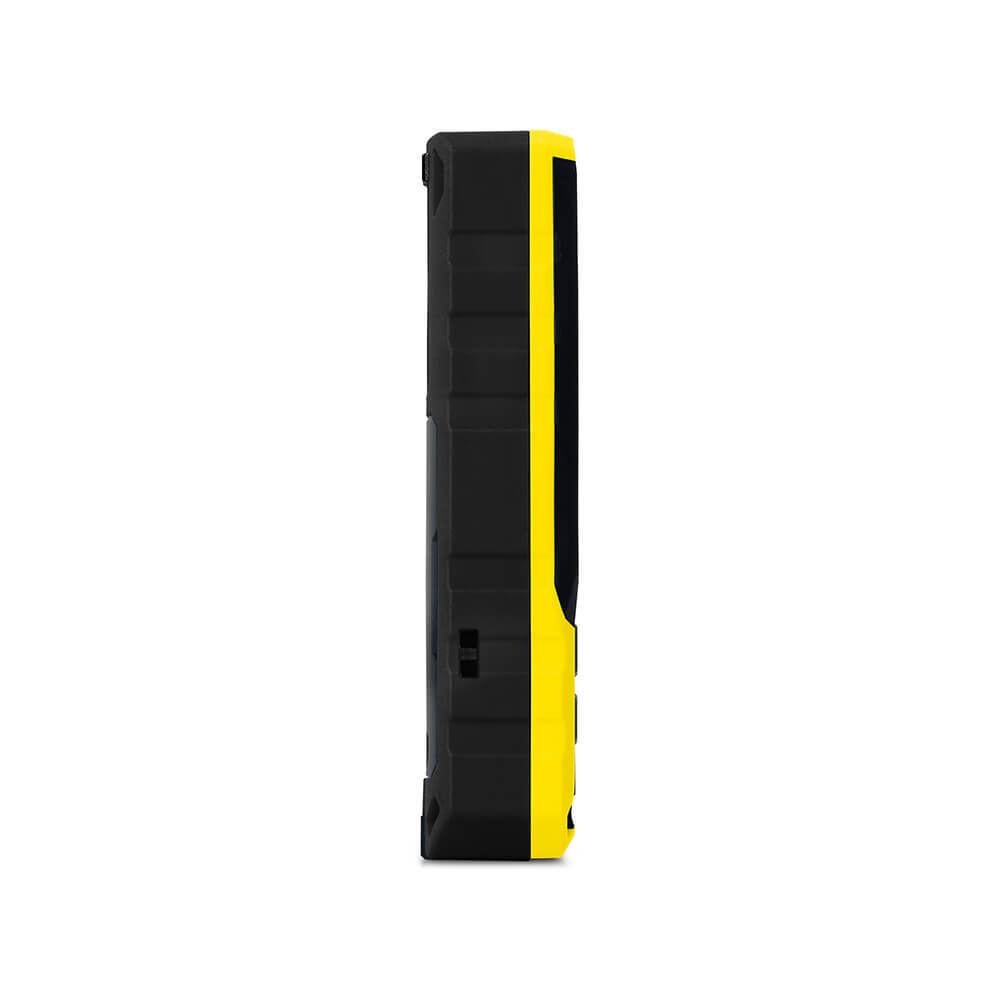

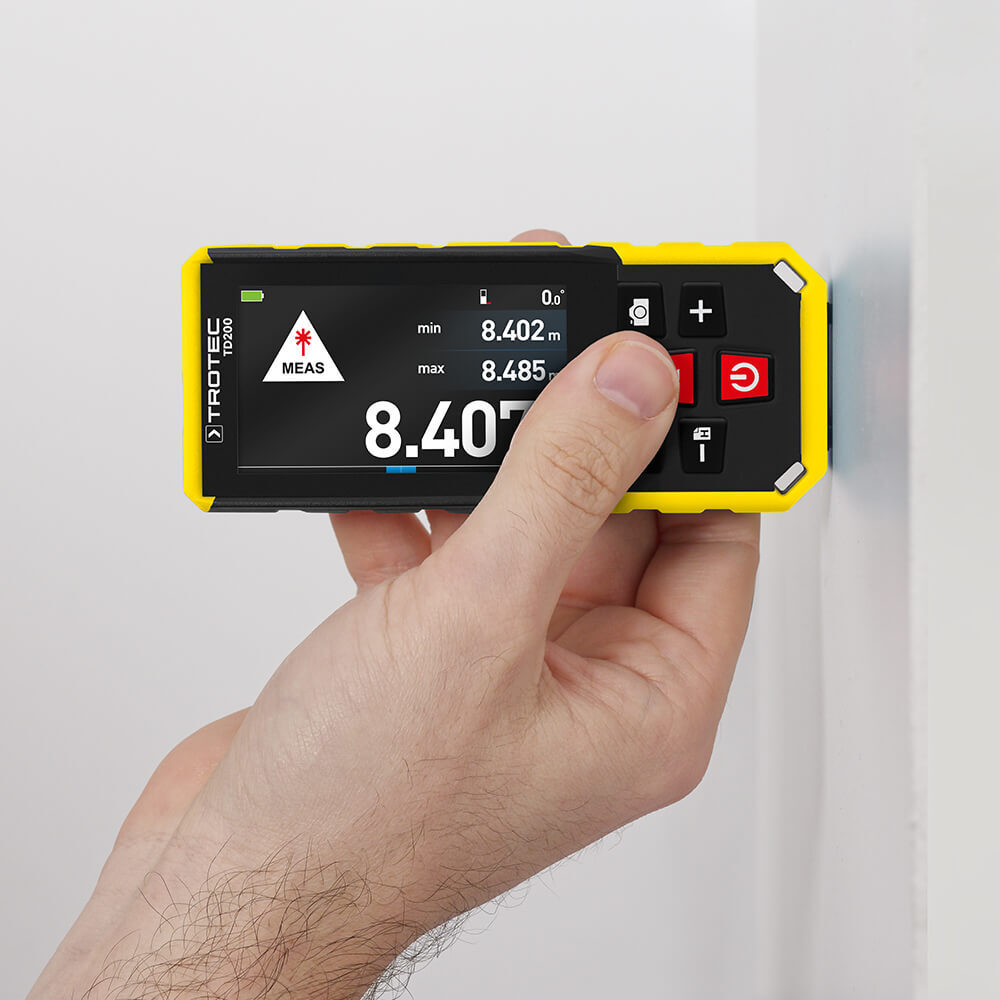

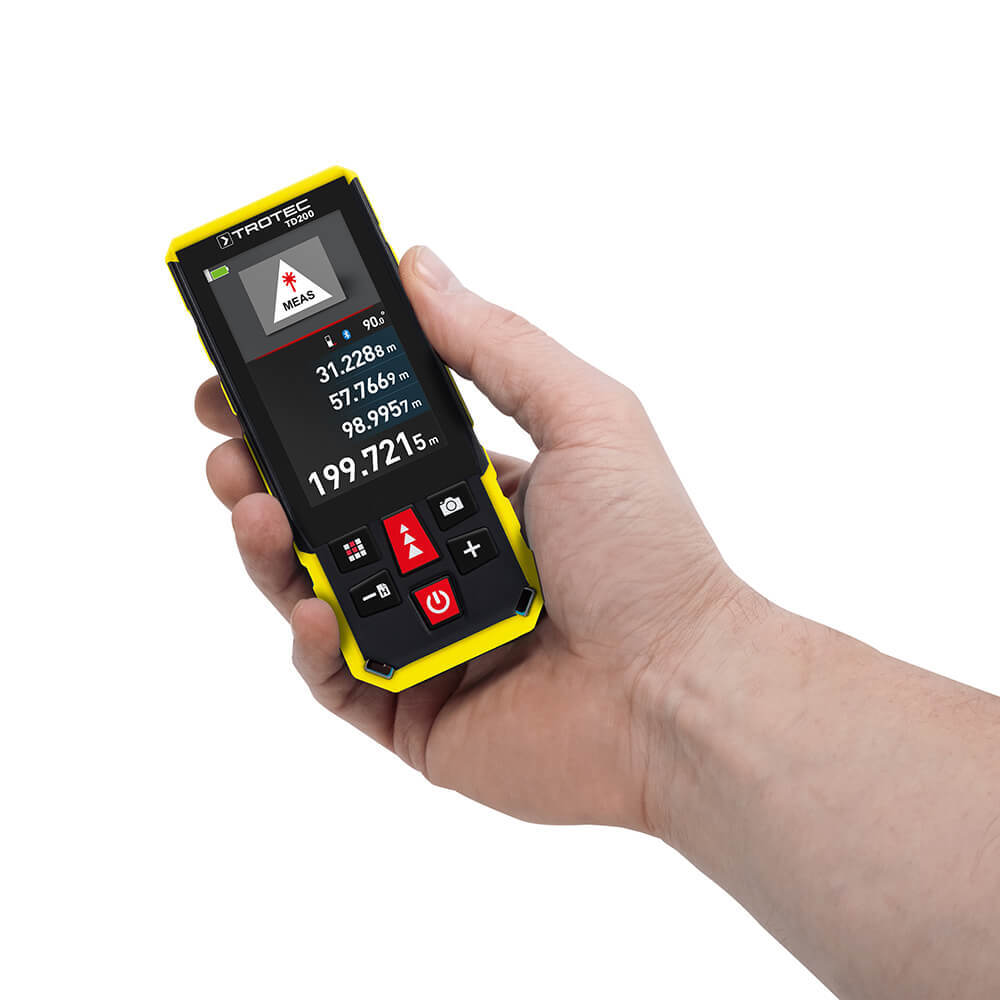

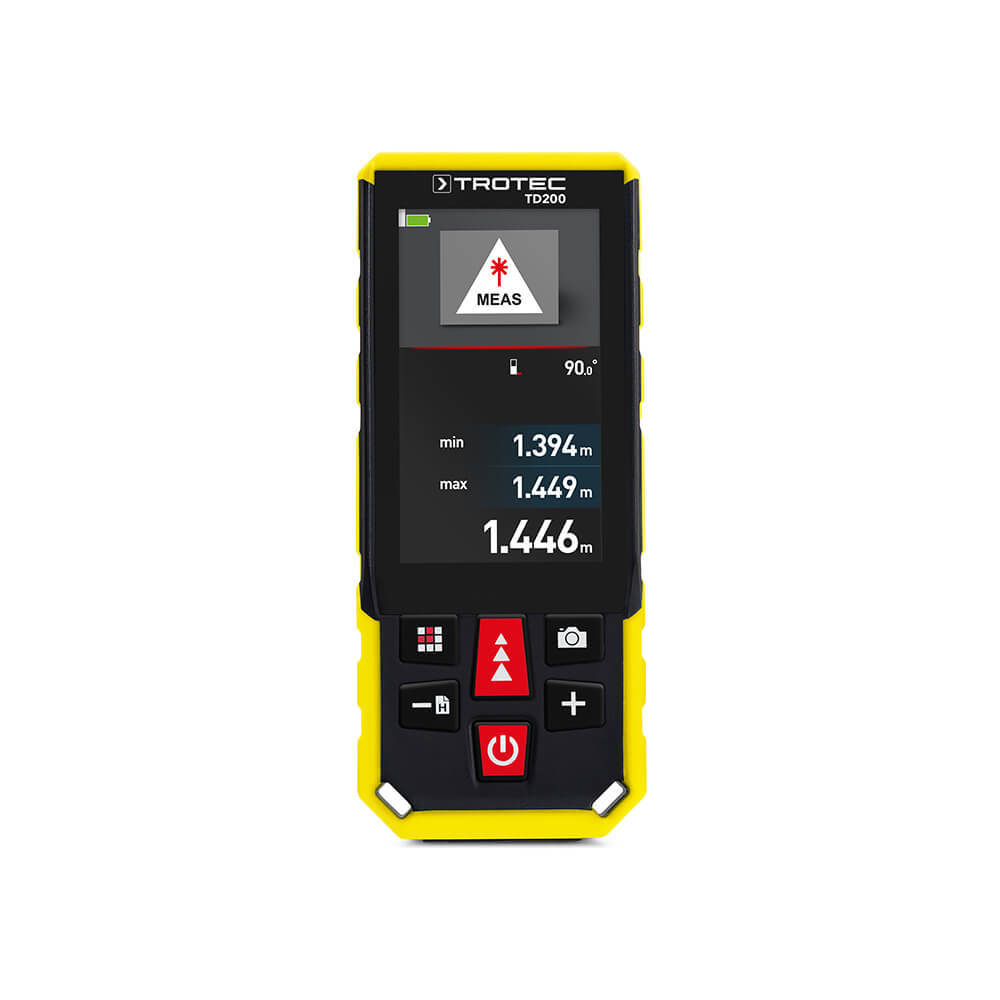

Trotec TD200 – laser distance meter
|
Trotec TD200 – laser distance meter
|
Trotec TD200 – laser distance meter
|
Trotec TD200 – laser distance meter
|
Trotec TD200 – laser distance meter
|

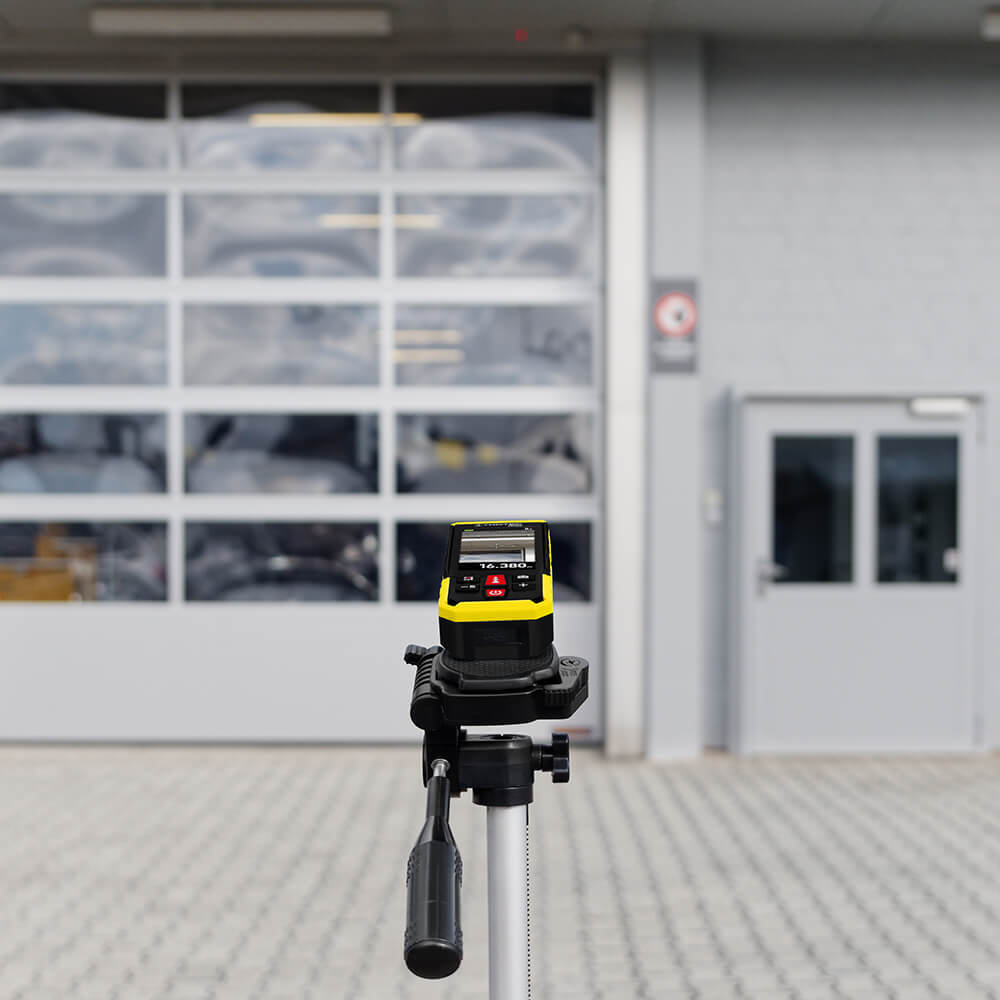

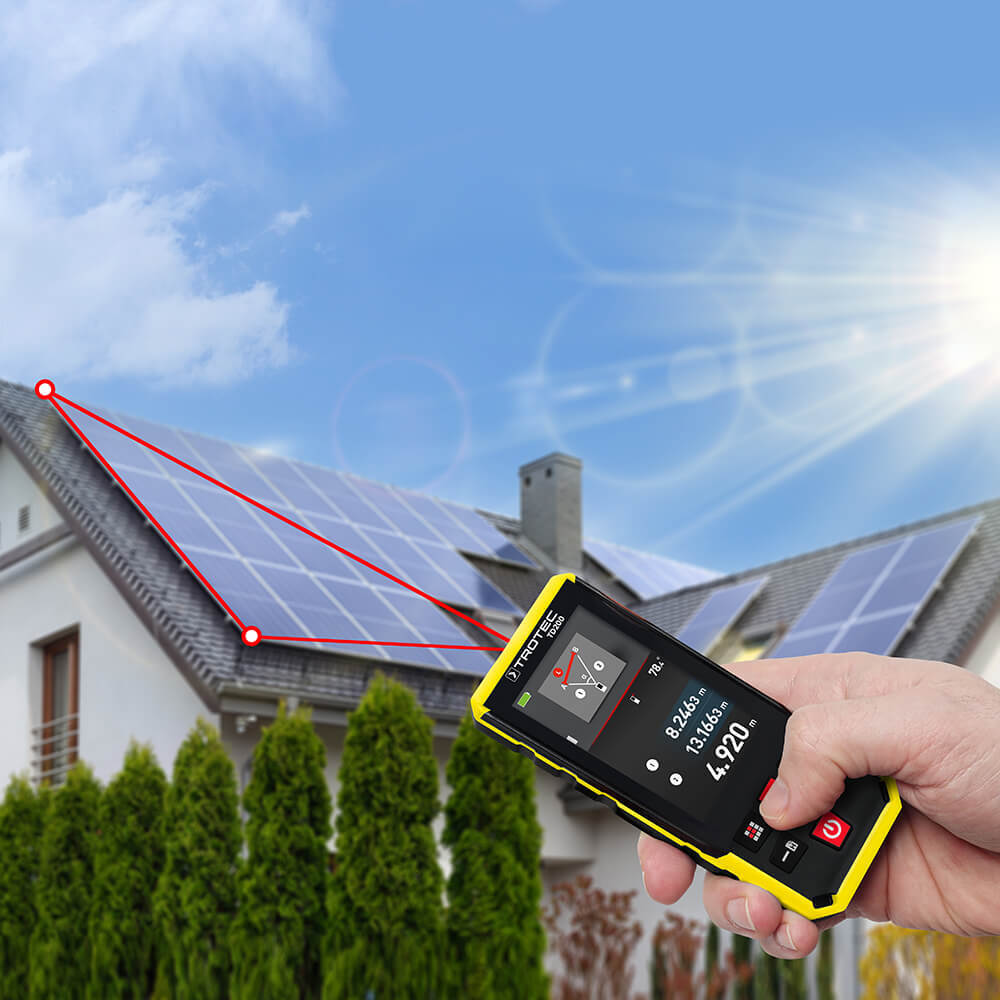

Trotec TD200 – application
|
Trotec TD200 – application
|
Trotec TD200 – application
|
Key features
- Professional distance meter for laser-precise distance measurements up to a range of 200m
- 360° tilt sensor and integrated digital camera with target finder
- Pythagoras functions for partial distance calculations and indirect measurements past obstacles
- Wide range of functions for automatic calculation of circular, rectangular or triangular areas, partial distances as well as cylinder volumes
- Design suitable for construction sites thanks to IP65 type of protection
- With digital spirit level and tripod connection
- Easy-to-read, 4-line measurement value display
- Fast and ergonomic measurements thanks to two measurement buttons on the front and on the side
- Automatic screen rotation
- Non-stop measuring mode with MIN/MAX function
- Addition and subtraction of measuring results
- Three selectable reference points for measuring from the front or rear edge as well as from the tripod
- Mute function
- Inductive charging option
- Bluetooth function – integrated future-proof solution for upcoming app innovations
- Memory for 1,000 measured values and 100 screenshots
Product specifications
| Specifications | Units | TD200 |
|---|---|---|
| Distance measurement - Measuring range | m | 0.2 to 200 |
| Distance measurement - Resolution (typ. measurement accuracy) | mm | 0.1 (± 2) |
| Inclination measurement - Measuring range (display) | ° | 360 (± 90) |
| Inclination measurement - Typ. measurement accuracy | ° | ± 0.3 |
| Selectable units | m, ft, in | |
| Laser class / laser output | M/mW | 2/<1 |
| Display | 3-inch colour LCD, 360 x 640 px | |
| Tripod connection | ¼ inch | |
| Power supply | Batterie | Battery (3 x 1.2 V AAA Ni-MH) |
| Ports | MicroUSB, Bluetooth | |
| Integrated camera | 3x zoom | |
| Memory | 1,000 measurements, 100 screenshots | |
| Type of protection | IP65 | |
| Fall protection | Up to a drop height of 1 m | |
| Minimum/maximum value display | Yes/Yes | |
| Automatic switch-of | Yes | |
| 2-point Pythagoras function | Yes | |
| 3-point Pythagoras for indirect height measurements | Yes | |
| 3-point Pythagoras for partial distance measurements | Yes | |
| Automatic height measurements | Yes | |
| Indirect length measurements | Yes | |
| Rectangular area calculation | Yes | |
| Volume measurement | Yes | |
| Circular area calculation | Yes | |
| Cylinder volume calculation | Yes | |
| Point-to-point distance measurement | Yes | |
| Triangular area calculation | Yes | |
| Stake-out function | Yes | |
| Trapezoidal function | Yes | |
| Non-stop measuring function | Yes | |
| Addition / subtraction | Yes/Yes | |
| Target finder | Yes | |
| Automatic screen rotation | Yes | |
| Light/dark mode display indication | Yes | |
| Tilt sensor | Yes | |
| Digital spirit level | Yes | |
| Self-timer for time-delayed measurements | Yes | |
| Inductive charging option | Yes | |
| Acoustic signal | Yes | |
| Reference point selection | Top, bottom, tripod | |
| Product size (l x w x h) | mm | 28 x 54 x 130 |
| Weight | g | 190 |
Suitable for:
- Commercial buildings
- Construction
- Heritage sites
- Industrial, factories and production
- Museums and galleries
- Residential buildings
- Warehouses and storage
