Trotec TD120 – laser distance meter
Laser distance meter
Robust, compact and extremely functional – the TD120 is the optimal distance meter for budget-conscious users with professional ambitions.
The robust distance meter is equipped with a tilt sensor and a digital spirit level plus horizontal and vertical bubble. With these capabilities, the TD120 can easily take measurements over obstacles, as well as angle and height measurements. Up to a range of 120 metres, the TD120 quickly and precisely determines all the required values, which are always displayed clearly on the multi-line monochrome LCD.
For more information, please click on the catalogue.
Trotec TD120 – laser distance meter
|
Trotec TD120 – laser distance meter
|
Trotec TD120 – laser distance meter
|
Trotec TD120 – laser distance meter
|
Trotec TD120 – laser distance meter
|
Trotec TD120 – application
|
Trotec TD120 – application
|
Trotec TD120 – application
|
Key features
- Professional distance meter for laser-precise distance measurements up to a range of 120m
- 360° tilt sensor and digital spirit level
- Pythagoras functions for partial distance calculations and indirect measurements past obstacles
- Calculation of rectangular areas and volumes
- Robust workmanship for rough construction site applications

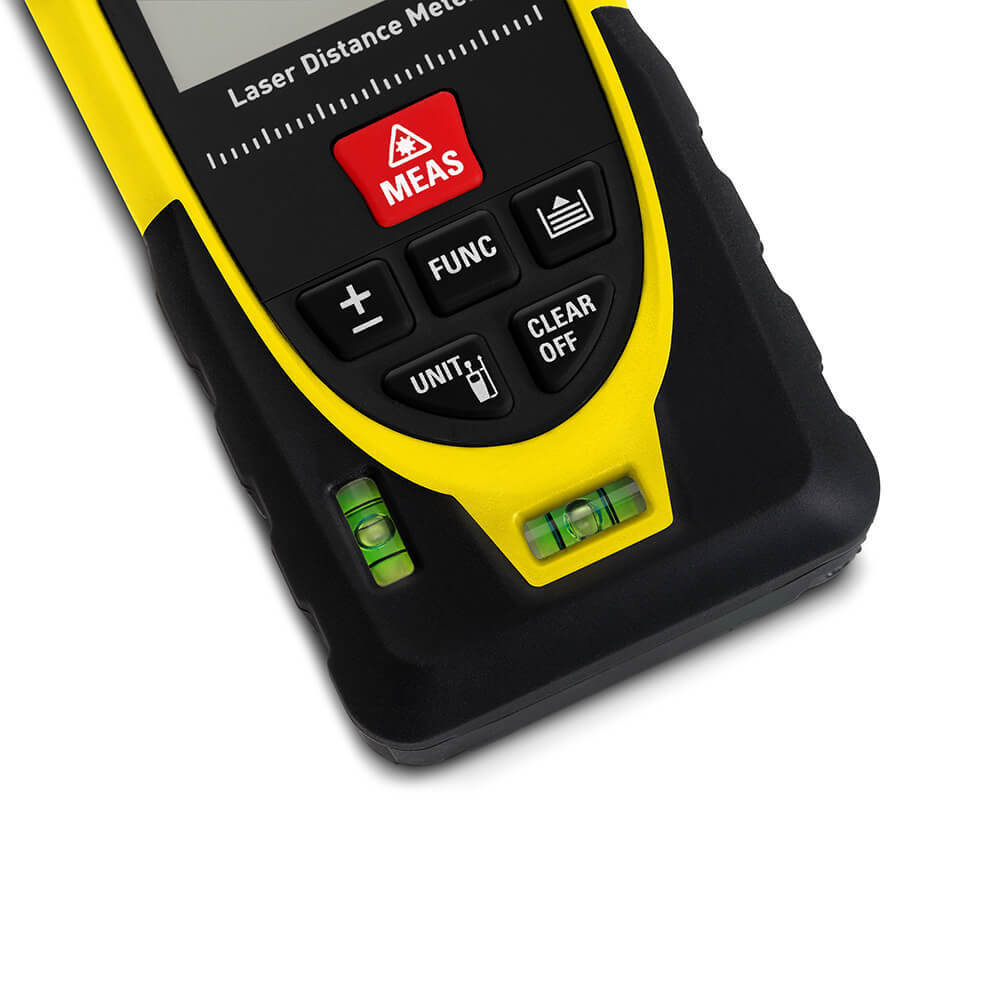

- Spirit level with horizontal and vertical longitudinal vial integrated in the housing
- Easy-to-read, 4-line measurement value display
- Non-stop measuring mode with MIN/MAX function
- Addition and subtraction of measuring results
- Two selectable reference points for measuring from the front or rear edge
- Mute function
- Memory for 99 measured values
Product specifications
| Specifications | Units | TD120 |
|---|---|---|
| Distance measurement - Measuring range | m | 0.05 to 120 |
| Distance measurement - Resolution (typ. measurement accuracy) | mm | 1 (± 1.5) |
| Inclination measurement - Measuring range (display) | ° | 360 (± 90) |
| Inclination measurement - Typ. measurement accuracy | ° | ± 0.5 |
| Selectable units | m, ft, in | |
| Laser class / laser output | M/mW | 2/<1 |
| Display | Backlit monochrome LCD | |
| Power supply | Battery | 2 x AAA |
| Spirit level vial | Horizontal, vertical | |
| Memory | 99 measurements | |
| Type of protection | IP40 | |
| Fall protection | Up to a drop height of 1 m | |
| Minimum/maximum value display | Yes/Yes | |
| Automatic switch-of | Yes | |
| 2-point Pythagoras function | Yes | |
| 3-point Pythagoras for indirect height measurements | Yes | |
| 3-point Pythagoras for partial distance measurements | Yes | |
| Automatic height measurements | Yes | |
| Indirect length measurements | Yes | |
| Rectangular area calculation | Yes | |
| Volume measurement | Yes | |
| Non-stop measuring function | Yes | |
| Addition / subtraction | Yes/Yes | |
| Tilt sensor | Yes | |
| Digital spirit level | Yes | |
| Acoustic signal | Yes | |
| Reference point selection | Top, bottom | |
| Product size (l x w x h) | mm | 27 x 50 x 115 |
| Weight | g | 128 |
Suitable for:
- Commercial buildings
- Construction
- Heritage sites
- Industrial, factories and production
- Museums and galleries
- Residential buildings
- Warehouses and storage
