Dantherm DHP 77 TTW – swimming pool dehumidifiers
Wall-mounted pool dehumidifiers
The DHP 77 TTW are wall-mounted pool dehumidifiers for through-the-wall installation in adjacent rooms. The dehumidifiers stand out for their high-performance and high-capacity. They offer great dehumidification capacities and a low energy consumption per liter extracted (SEC). The minimal energy consumption reduces your energy bills while also lowering your CO2 footprint.
The DHP dehumidifiers have been fitted with an advanced and optimised control system that allows you to adjust the humidity levels to your desired level very accurately. All models operate effortlessly in temperatures as low as 10°C.
The range has been designed for use in both private and spa environments of varying sizes

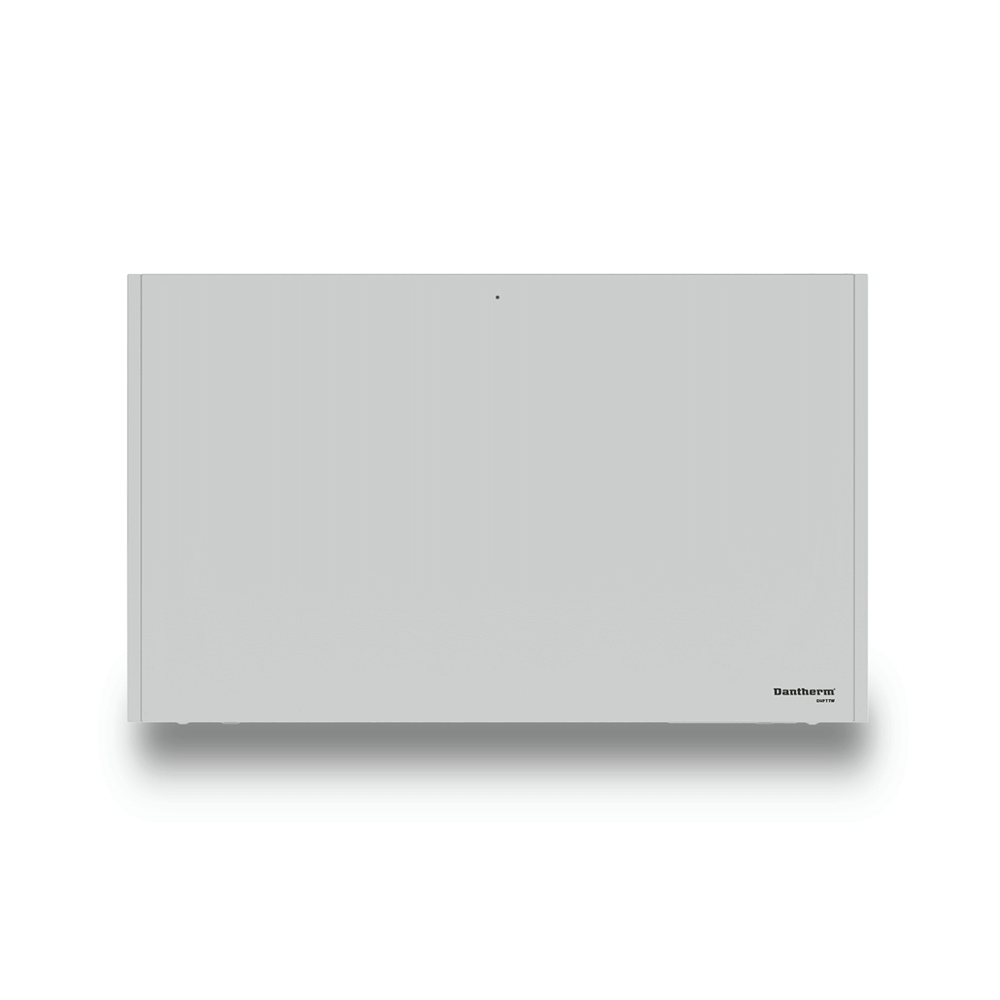

Dantherm DHP 77 TTW – swimming pool dehumidifiers
|

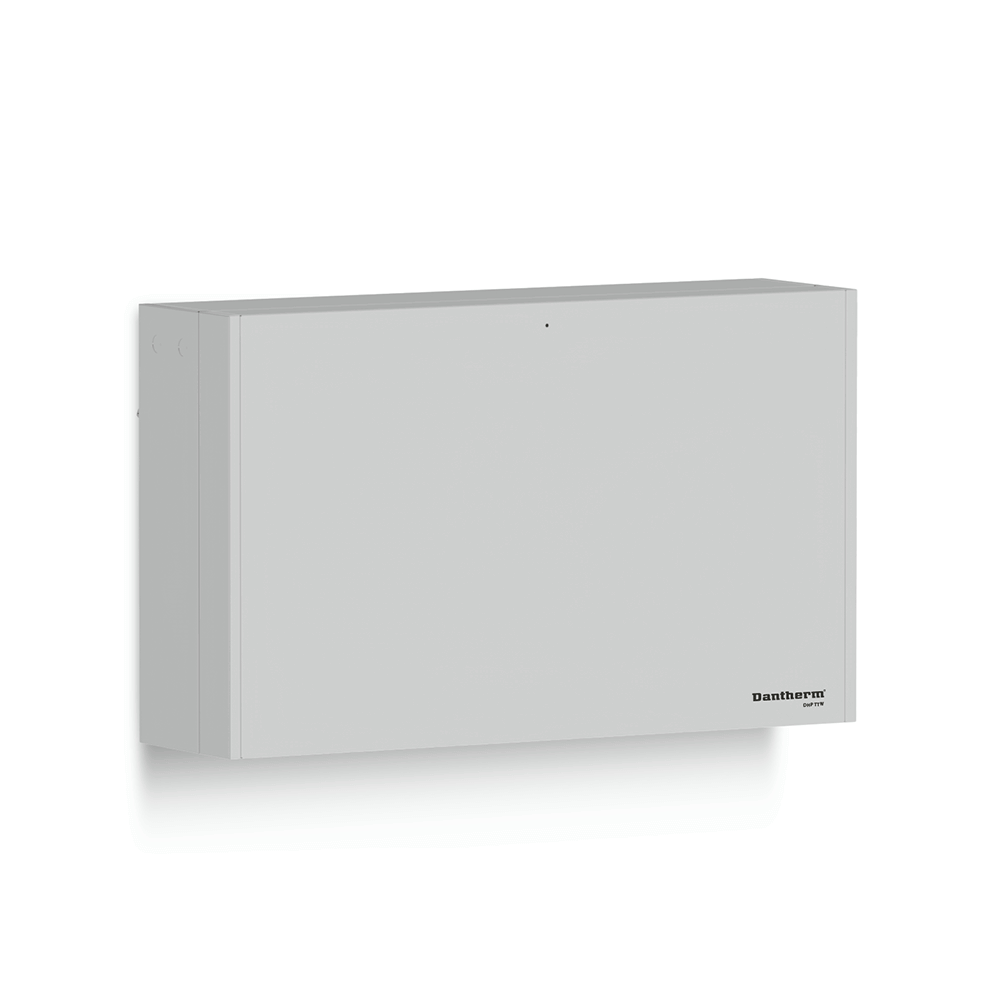

Dantherm DHP 77 TTW – swimming pool dehumidifiers
|

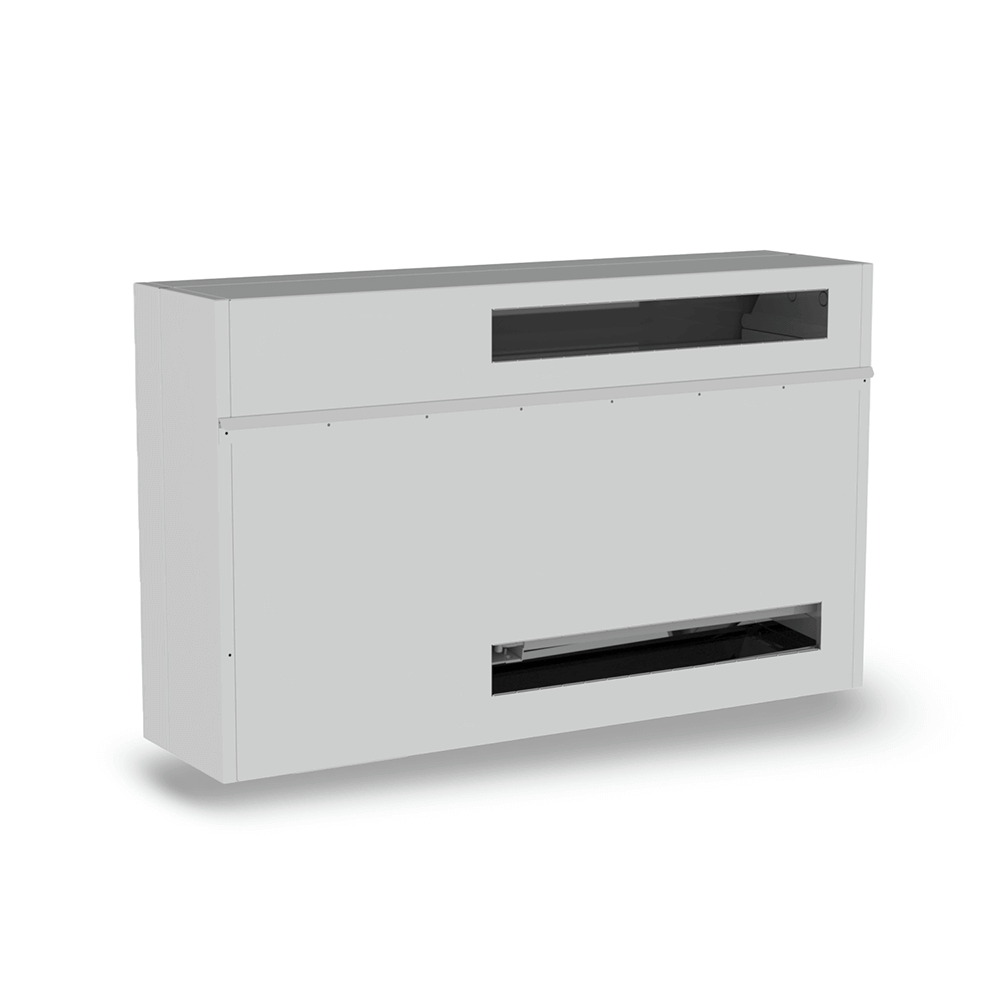

Dantherm DHP 77 TTW – back
|

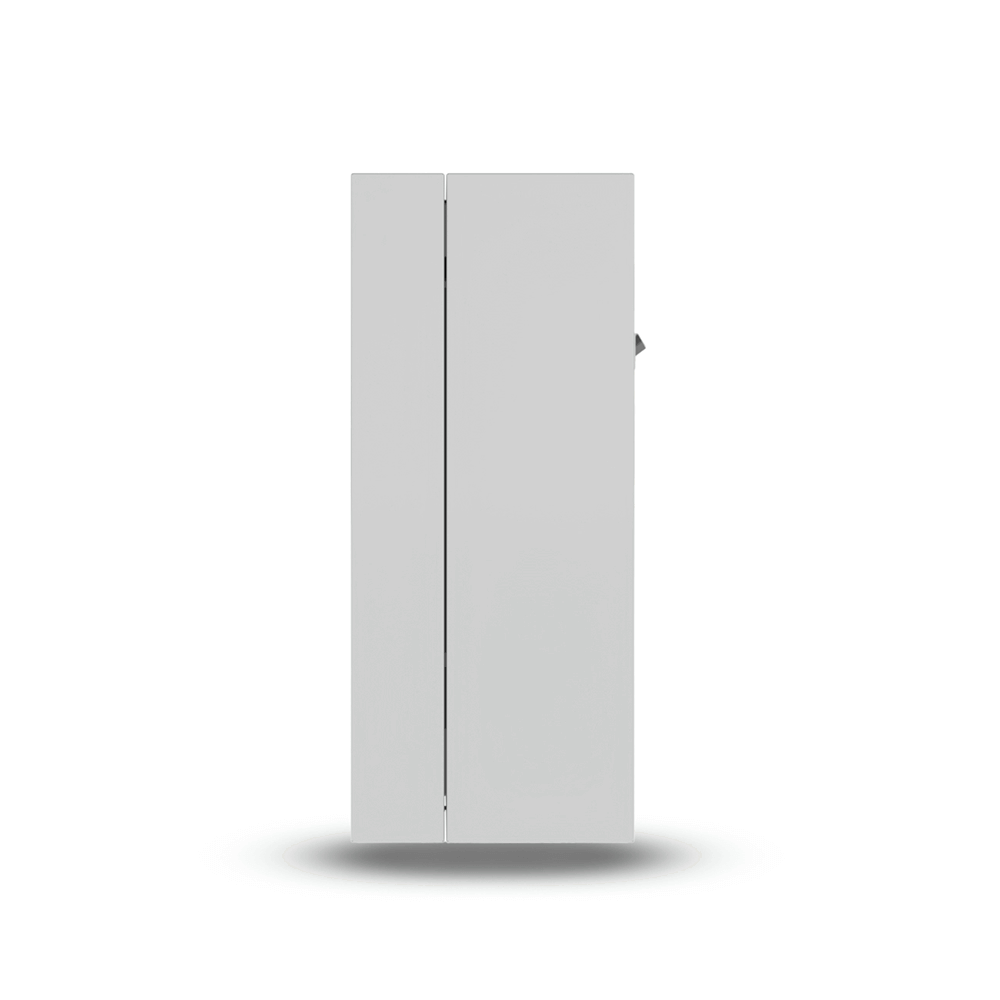

Dantherm DHP 77 TTW – side
|

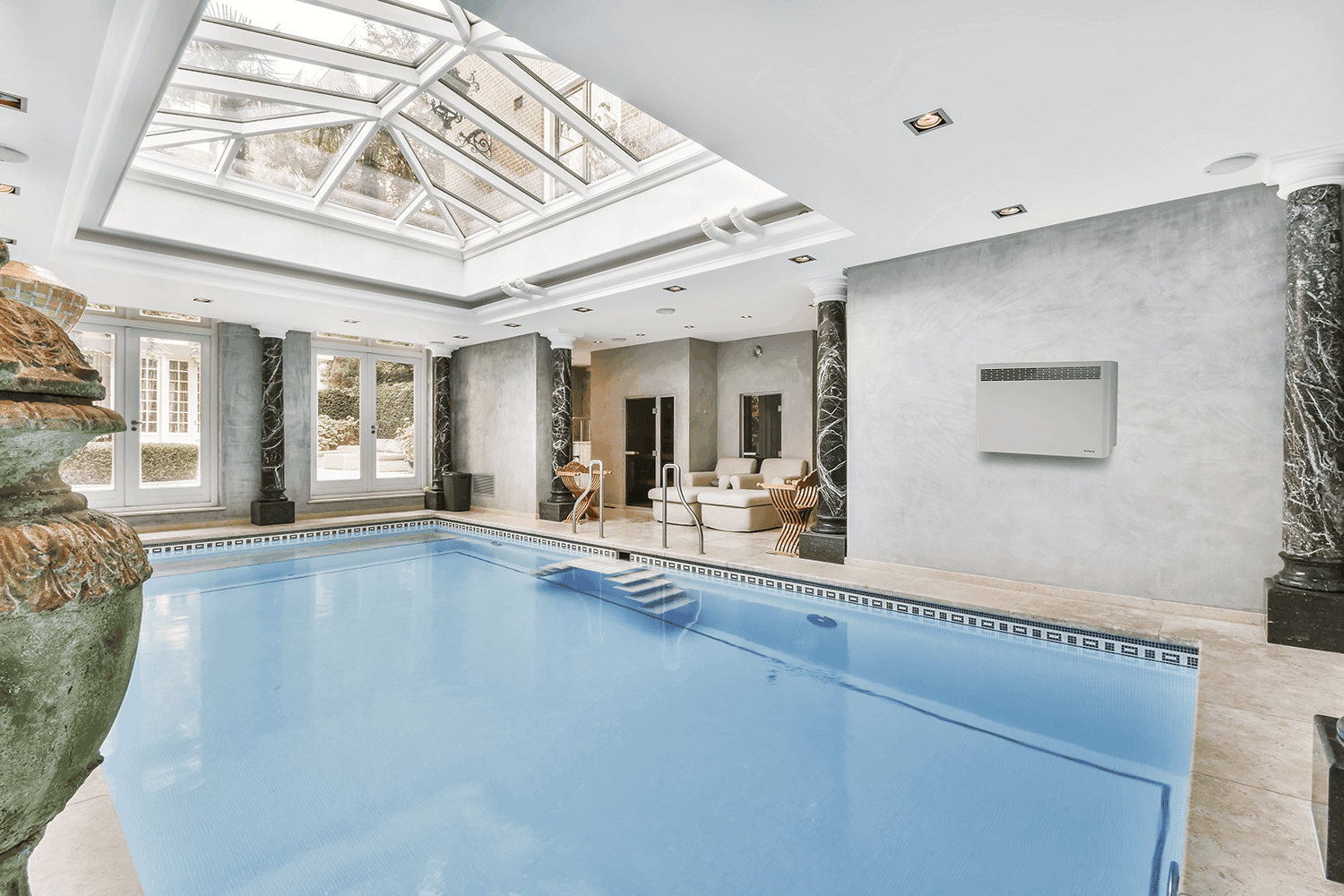

Dantherm DHP 77 TTW application
|
Key features
- Great dehumidification capacities
- Low Specific Energy Consumption (SEC)
- Low sound pressure levels
- Wider range of units (incl. size: 77)
- Modbus RS485 RTU communication
- Wireless remote control of setpoints and visibility of room conditions
- Optional remote combi RH/T sensor w/10m cable
- External fan(s) operating on an independent secondary RH setpoint
- USB-A port for data logging and software update
- Continuous, Auto, or Sensing fan operational mode
- Various accessories for specific project customisability
- For through-the-wall installation in adjacent rooms
Product specifications
| Specifications | Units | DHP 77 TTW |
|---|---|---|
| Operating temperature range | °C | 10-36 |
| Operating humidity range | % | 40-100 |
| Dehumidification @ 30°C/60% RH | l/24h | 81 |
| SEC @ 30°C/60% RH | kWh/l | 0.43 |
| Air flow | m³/h | 900 |
| Power supply | V/Hz | 230/1ph/50 |
| Power consumption @ 30°C/60% RH | kW | 1.24 |
| Power consumption max. | kW | 1.8 |
| Heat recovered @ 30°C/60% RH | kW | 4.2 |
| Sound pressure level @ 1m | dB(A) | 47 |
| R407c gas weight/CO2 equivalent | kg/t | 1.2/2.13 |
| Product size (w x d x h) | mm | 1483 x 304 x 700 |
| Weight | kg | 77.5 |
| Colour | RAL 7035 |
Suitable for:
- Leisure and recreation
- Swimming pools
