Dantherm CDF 40 – condensation dehumidifiers

Wall-mounted/floor-standing dehumidifiers

The energy-efficient and quiet CDF range of powerful dehumidifiers is ideal for preserving and protecting your valuables from humidity damage. They are suited for humidity control in garages, warehouses, museums, churches, archives and waterworks.

View other industrial condensation dehumidifiers or see our full range of dehumidifiers suitable for multiple applications.

Dantherm CDF 40-50-70 – condensation dehumidifiers

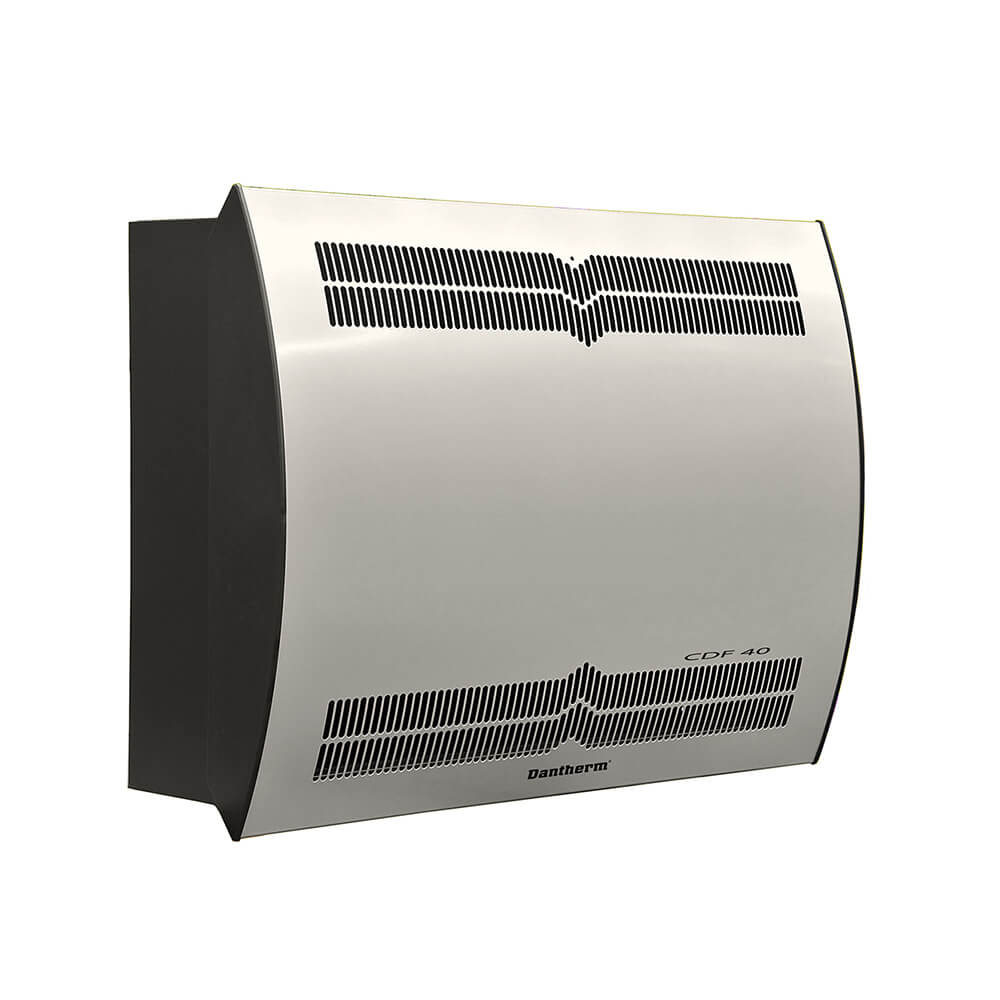

Dantherm CDF 40 condensation dehumidifiers

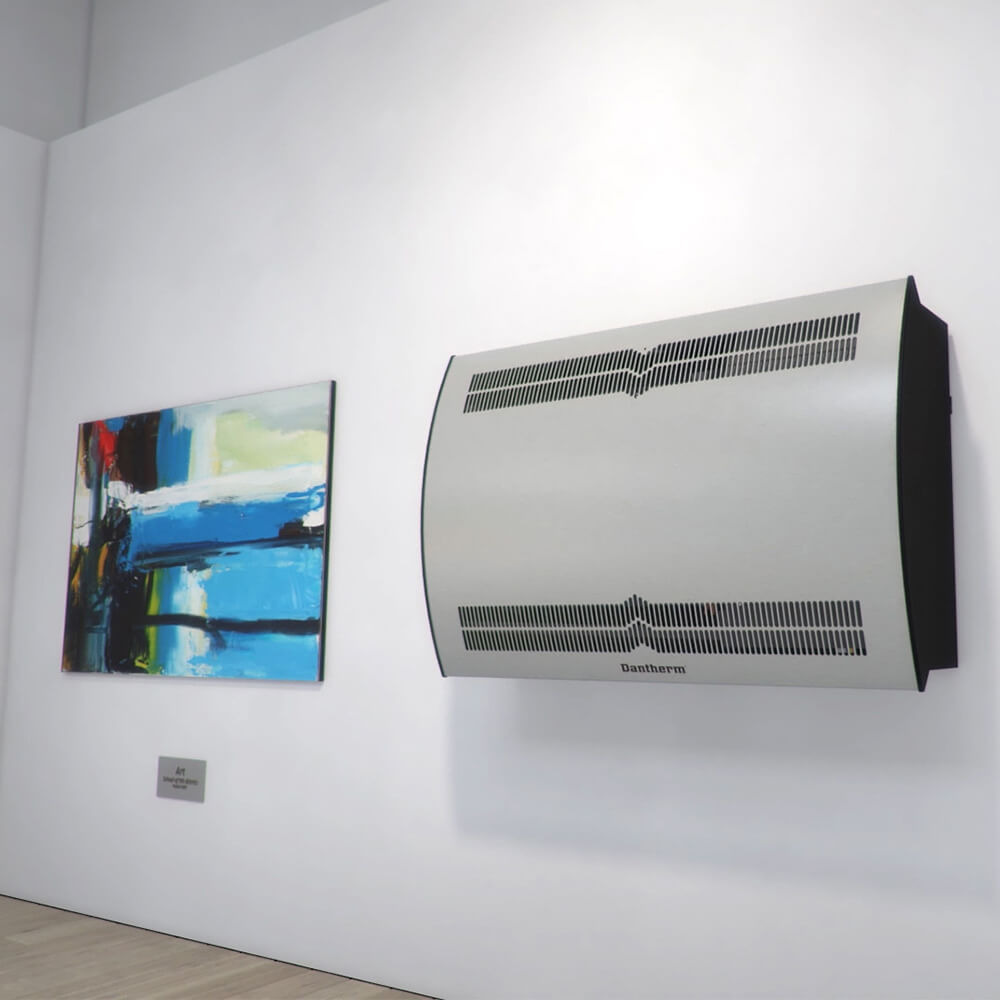

How to preserve works of art video
How to preserve works of art video

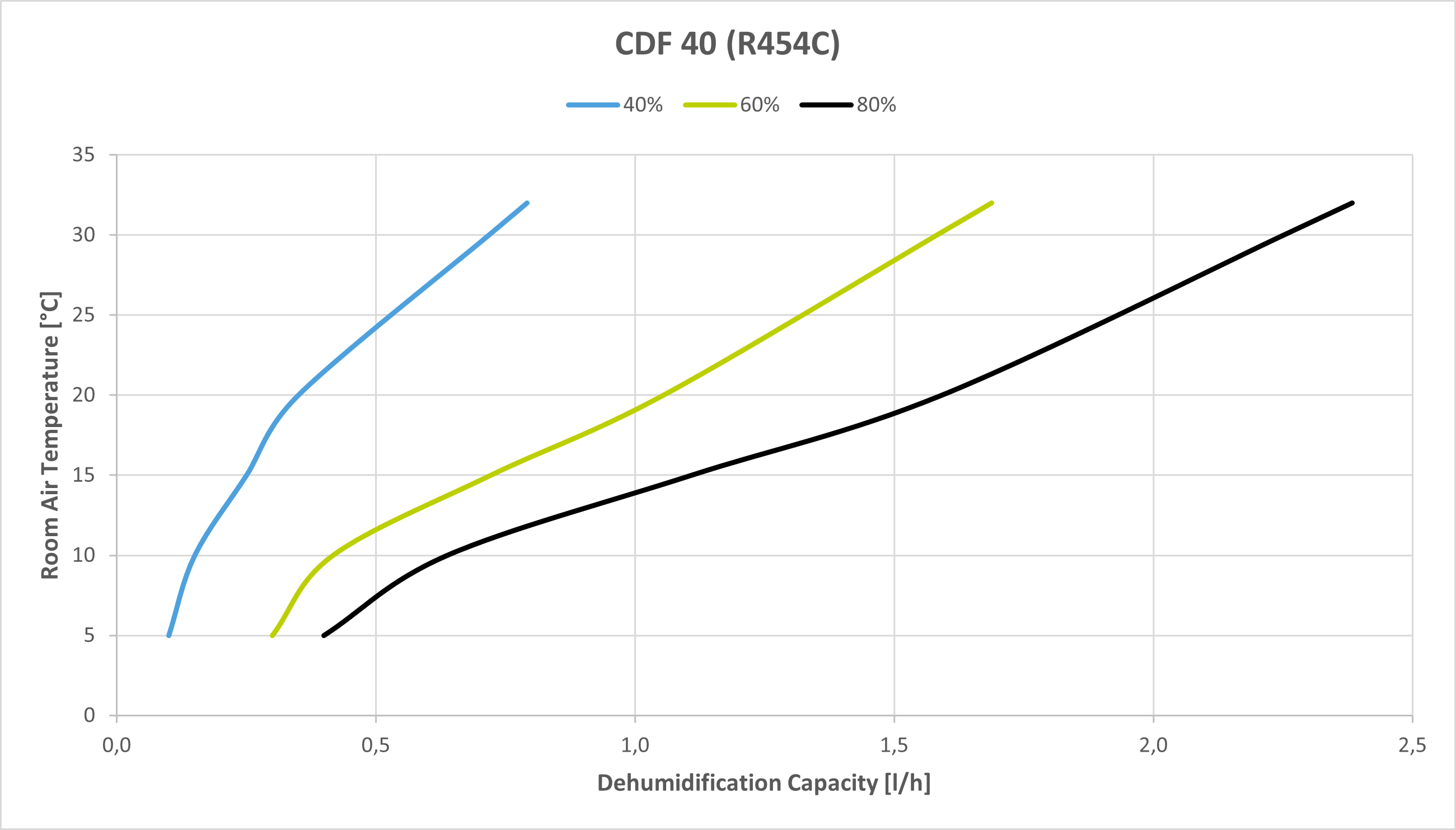

CDF 40 Capacity Curves
CDF 40 Capacity Curves

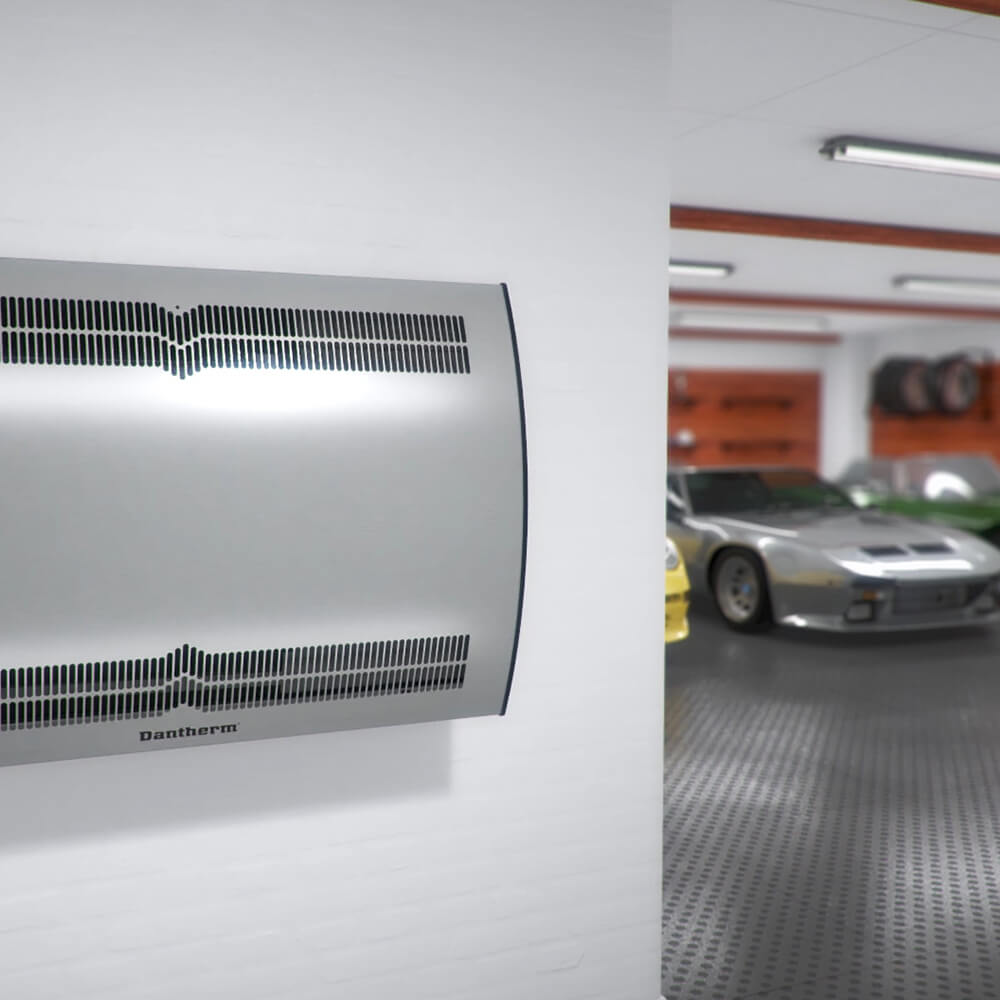

Preserve and protect your classic car
Preserve and protect your classic car
CDF 40 Capacity Curves
CDF 40 Capacity Curves
Heaters v Dehumidifiers
Heaters v Dehumidifiers

Key features

  • Modern design
  • Low sound level
  • Low energy consumption
  • Integrated control of humidity and temperature
  • BMS communication (Modbus RTU)
  • Built into a strong and robust powder-coated and hotgalvanised sheet metal cabinet
  • Evaporator and condenser coils epoxy-coated to maximise corrosion resistance

Controls

  • Built in electronic hygrostat and thermostat
  • Integrated ON/OFF control of humidity and temperature (electric or water heating coils as accessories)
  • 230 V for control valve, exhaust fan and pump/boiler
  • RS485 for Modbus communication

Product specifications

SpecificationsUnitsCDF 40
Operating temperature range
°C
3-32
Operating humidity range
% RH
40-95
Dehumidification capacity @ 20°C/60%
l/24h
25.3
Specific Energy Consumption @ 20°C/60%
kWh/l
0.50
Air flow
m³/h
410
Sound pressure level @ 1m
dB(A)
46
R454C gas weight/CO₂ equivalent
kg/t
0.7/0.11
Power supply
V/Hz
1N∼230+PE / 50
Current, max.
A
3.3
Power consumption, max.
kW
0.7
Power consumption @ 20°C/60%
kW
0.6
Power consumption, max., w/elec. heater
kW
2.7
Heat recovered @ 20°C/60%
kW
1.5
Product size (w x d x h)
mm
1010 x 326 x 770
Weight
kg
55.7
Filter type
PPI 15
Protection Class
IPX4

Suitable for:

  • Archives and preservation
  • Classic car storage
  • Commercial buildings
  • Data centers and telecoms
  • Emergency services
  • Food and beverage
  • Heritage sites
  • Industrial, factories and production
  • Leisure and recreation
  • Military and aerospace
  • Museums and galleries
  • Pharmaceutical and scientific
  • Residential buildings
  • Transport and logistics
  • Warehouses and storage
  • Waterworks
